Removal [08/2023 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- REMOVE BATTERY SERVICE COVER PLATE
Refer to PROCEDURE - Step 2
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
- for HEV Model:
Refer to PROCEDURE - Step 19 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 19 [10/2024 - ]
- for PHEV Model:
Refer to PROCEDURE - Step 19
- for HEV Model:
- DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY (for PHEV Model)
See step 2

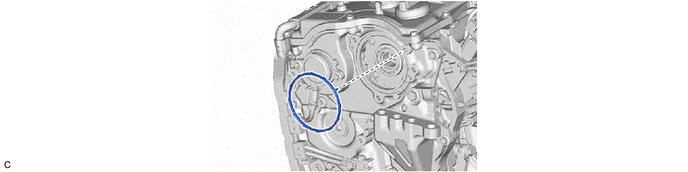

- REMOVE EARTH BOLT CAP
See step 3
- DISCONNECT NO. 2 EARTH WIRE
See step 4

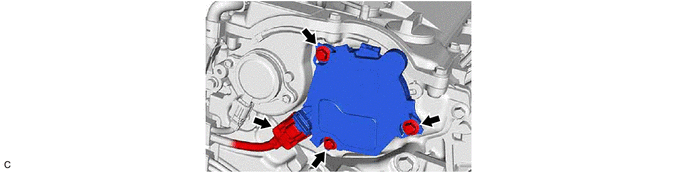

- REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY NOTE:
If the cam timing control motor with EDU assembly has been struck or dropped, replace it.
- REMOVE CAM TIMING CONTROL MOTOR O-RING
