Removal [10/2024 - ]: Procedure

REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (for HEV Model)
Refer to PROCEDURE - Step 7
REMOVE FRONT WHEEL OPENING EXTENSION PAD RH (for HEV Model)
Refer to PROCEDURE - Step 8
REMOVE NO. 1 ENGINE UNDER COVER (for HEV Model)
Refer to PROCEDURE - Step 9
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for HEV Model)
Refer to PROCEDURE - Step 10
REMOVE INTAKE MANIFOLD (for PHEV Model)
Refer to REMOVAL [08/2023 - ]

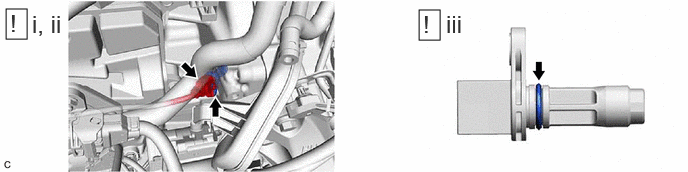

REMOVE CRANKSHAFT POSITION SENSOR

HINT:

As the illustration shown is an example, the actual details may differ.

Disconnect the crankshaft position sensor connector.
Using an 8 mm socket wrench, remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
NOTE:
If the crankshaft position sensor has been struck or dropped, replace it.
Perform this procedure only when reusing the crankshaft position sensor.
1. Remove the O-ring from the crankshaft position sensor.
NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the crankshaft position sensor.
- If the O-ring groove of the crankshaft position sensor is damaged, replace the crankshaft position sensor with a new one.
