Inspection [10/2022 - ]: Procedure

  1. INSPECT KNOCK CONTROL SENSOR
    1. Measure the resistance according to the value(s) in the table below.

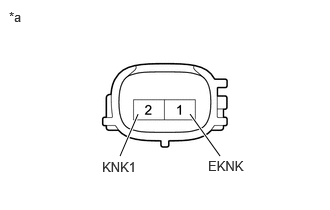

      GTY1103139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Knock Control Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      1 (EKNK) - 2 (KNK1) 25°C (77°F) 120 to 280 kΩ kΩ

      If the result is not as specified, replace the knock control sensor.
