Removal [10/2022 - ]: Procedure

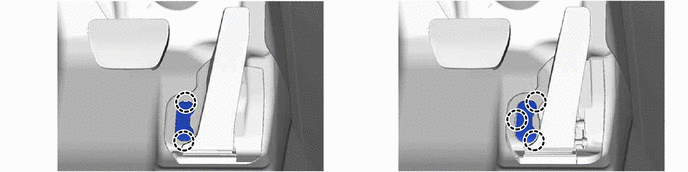

REMOVE ACCELERATOR PEDAL PAD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMC Made

except TMMC Made

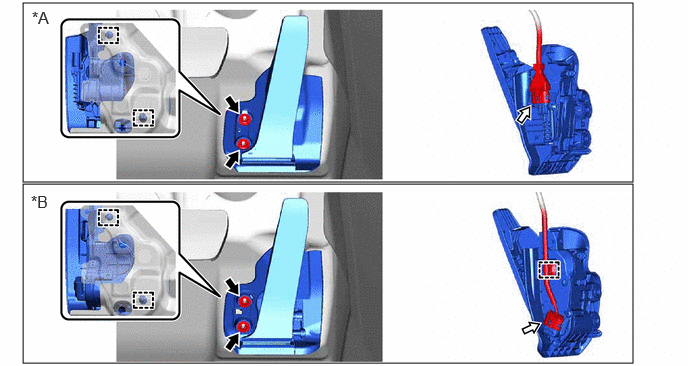

REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

NOTE:

Avoid physical shock to the accelerator pedal (with sensor) rod assembly.
If the accelerator pedal (with sensor) rod assembly has been struck or dropped, replace it.
Do not disassemble the accelerator pedal (with sensor) rod assembly.
The accelerator pedal (with sensor) rod assembly does not require lubrication.
Do not apply oil or other lubricants to the accelerator pedal (with sensor) rod assembly. If applied, the accelerator pedal (with sensor) rod assembly must be replaced.

for TMMC Made

except TMMC Made
