Installation [10/2022 - ]: Procedure

INSTALL SPARK PLUG

Refer to PROCEDURE - Step 1

INSTALL IGNITION COIL ASSEMBLY

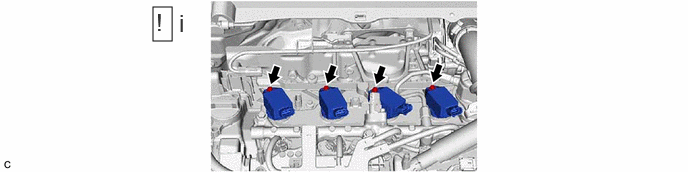

GTY1131386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, install the 4 ignition coil assemblies to the cylinder head cover sub-assembly with the 4 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTE:
If an ignition coil assembly has been struck or dropped, replace it.

CONNECT ENGINE WIRE

INSTALL NO. 3 ENGINE COVER

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 55
for Gasoline Model:
Refer to PROCEDURE - Step 55

INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 56
for Gasoline Model:
Refer to PROCEDURE - Step 56

PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.
  - for 1Motor-HEV Model:
    Refer to INITIALIZATION [10/2022 - ]
  - for Gasoline Model:
    Refer to INITIALIZATION [10/2022 - ]
