Removal [12/2023 - ]: Procedure
- DRAIN ENGINE COOLANT
Refer to REPLACEMENT [12/2023 - ]
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 1

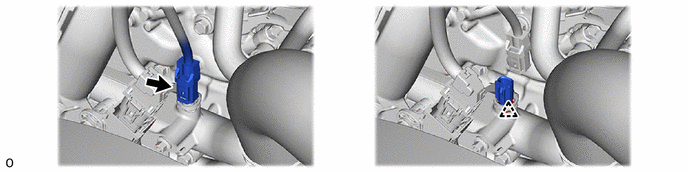

- REMOVE E.F.I. ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the E.F.I. engine coolant temperature sensor has been struck or dropped, replace it.
- REMOVE ENGINE COOLANT TEMPERATURE SENSOR (w/ Grille Shutter) NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
