Removal [12/2023 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 TURBO PRESSURE SENSOR
    1. GTY1216970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

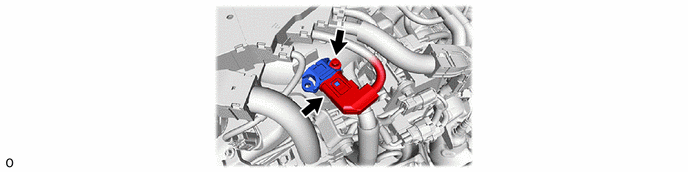

  3. REMOVE NO. 3 TURBO PRESSURE SENSOR
    1. GTY1219377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
