Removal [12/2023 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side of Bank 1)

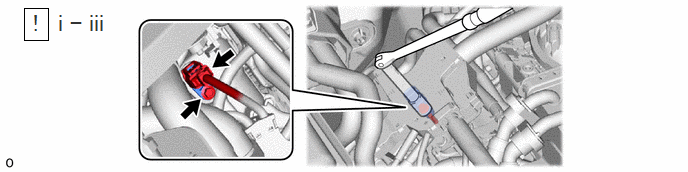

    1. GTY1212725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the camshaft position sensor (for Intake Side of Bank 1) connector.
      2. Remove the bolt and camshaft position sensor (for Intake Side of Bank 1) from the cylinder head cover sub-assembly.
        NOTE:

        If the camshaft position sensor (for Intake Side of Bank 1) has been struck or dropped, replace it.

      3. Perform this procedure only when reusing the camshaft position sensor (for Intake Side of Bank 1).

        1. Remove the O-ring from the camshaft position sensor (for Intake Side of Bank 1).

        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor (for Intake Side of Bank 1).
        • If the O-ring groove of the camshaft position sensor (for Intake Side of Bank 1) is damaged, replace the camshaft position sensor (for Intake Side of Bank 1) with a new one.
  3. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 1)

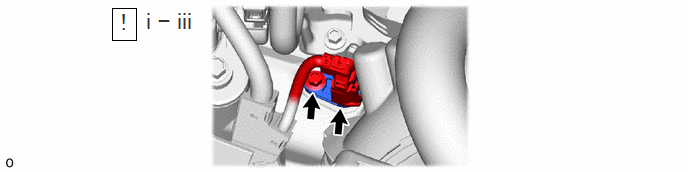

    1. GTY1214680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the camshaft position sensor (for Exhaust Side of Bank 1) connector.
      2. Remove the bolt and camshaft position sensor (for Exhaust Side of Bank 1) from the cylinder head cover sub-assembly.
        NOTE:

        If the camshaft position sensor (for Exhaust Side of Bank 1) has been struck or dropped, replace it.

      3. Perform this procedure only when reusing the camshaft position sensor (for Exhaust Side of Bank 1).

        1. Remove the O-ring from the camshaft position sensor (for Exhaust Side of Bank 1).

        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor (for Exhaust Side of Bank 1).
        • If the O-ring groove of the camshaft position sensor (for Exhaust Side of Bank 1) is damaged, replace the camshaft position sensor (for Exhaust Side of Bank 1) with a new one.
  4. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side of Bank 2)

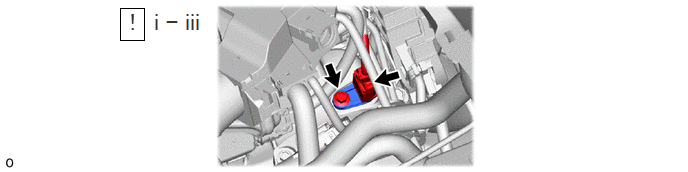

    1. GTY1215867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the camshaft position sensor (for Intake Side of Bank 2) connector.
      2. Remove the bolt and camshaft position sensor (for Intake Side of Bank 2) from the cylinder head cover sub-assembly.
        NOTE:

        If the camshaft position sensor (for Intake Side of Bank 2) has been struck or dropped, replace it.

      3. Perform this procedure only when reusing the camshaft position sensor (for Intake Side of Bank 2).

        1. Remove the O-ring from the camshaft position sensor (for Intake Side of Bank 2).

        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor (for Intake Side of Bank 2).
        • If the O-ring groove of the camshaft position sensor (for Intake Side of Bank 2) is damaged, replace the camshaft position sensor (for Intake Side of Bank 2) with a new one.
  5. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 2)
    1. GTY1217975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the camshaft position sensor (for Exhaust Side of Bank 2) connector.
      2. Remove the bolt and camshaft position sensor (for Exhaust Side of Bank 2) from the cylinder head cover sub-assembly.
        NOTE:

        If the camshaft position sensor (for Exhaust Side of Bank 2) has been struck or dropped, replace it.

      3. Perform this procedure only when reusing the camshaft position sensor (for Exhaust Side of Bank 2).

        1. Remove the O-ring from the camshaft position sensor (for Exhaust Side of Bank 2).

        NOTE:
        • Make sure to only remove the O-ring with bare hands.
        • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor (for Exhaust Side of Bank 2).
        • If the O-ring groove of the camshaft position sensor (for Exhaust Side of Bank 2) is damaged, replace the camshaft position sensor (for Exhaust Side of Bank 2) with a new one.
