Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
    1. Use the same procedure described for LH side.

      Refer to REMOVAL [12/2021 - ]

  2. REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY

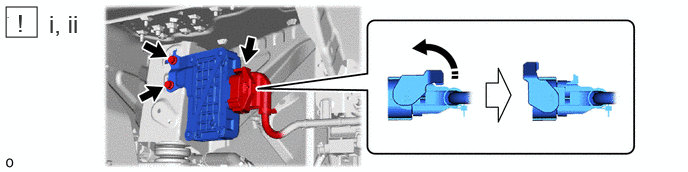

    1. GTY1074586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.
      2. Remove the 2 bolts and eco run vehicle converter assembly.
