Removal [09/2014 - ]: Procedure

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 10 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 10 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - ]
REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 15 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 15 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 15 [03/2019 - ]
REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 17 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 17 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 17 [03/2019 - ]
REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR
Refer to PROCEDURE - Step 16 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 16 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 16 [03/2019 - ]
DRAIN ENGINE OIL
See step 1 [09/2014 - 10/2015], or see step 1 [10/2015 - 11/2021], or see step 1 [11/2021 - ]

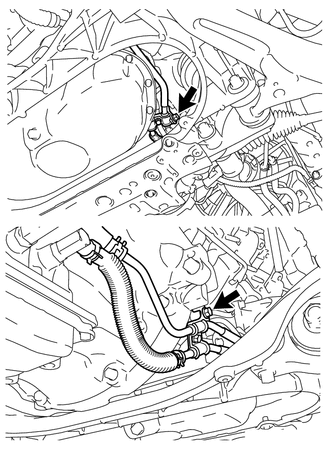

SEPARATE OIL COOLER TUBE

Remove the 2 bolts and separate the oil cooler tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

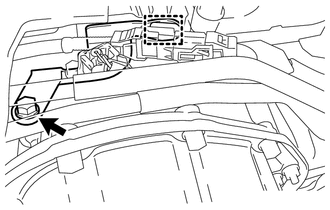

REMOVE CRANK POSITION SENSOR BRACKET

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ENGINE OIL LEVEL SENSOR

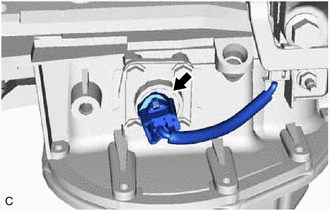

Disconnect the engine oil level sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

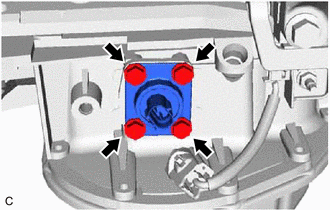

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

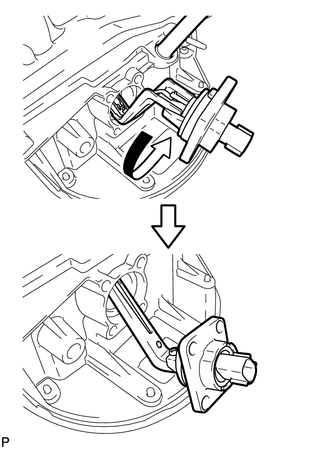

Rotate the engine oil level sensor 180° counterclockwise and remove it from the oil pan sub-assembly.

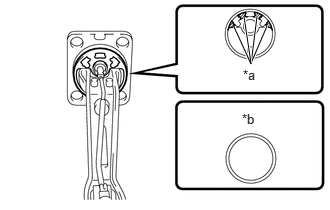

Cut off the gasket as shown in the illustration.

*a	Cutting Position
*b	Supply Part

Remove the gasket from the engine oil level sensor.
HINT:

After cutting off the portions of the gasket shown in the illustration, remove only the outer part of the gasket.
