Installation [08/2023 - ]: Procedure

HINT:  Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Clean the O-ring groove of the cam timing oil control solenoid assembly.
      NOTE:

      Make sure the O-ring groove is free of foreign matter.

   2. Install a new cam timing oil control solenoid O-ring to the cam timing oil control solenoid assembly.
      NOTE:

      Do not damage the cam timing oil control solenoid O-ring when installing it.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

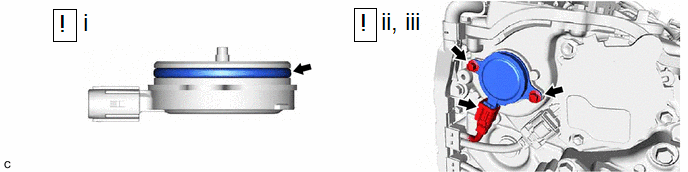

   1. Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.
      NOTE:

      If reusing the cam timing oil control solenoid assembly, be sure to inspect the cam timing oil control solenoid O-ring.

   2. Using an 8 mm socket wrench, install the cam timing oil control solenoid assembly to the No. 2 timing chain cover assembly with 2 new bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      NOTE:

      • If the cam timing oil control solenoid assembly has been struck or dropped, replace it.
      • Make sure that the cam timing oil control solenoid O-ring is not cracked or moved out of place when installing the cam timing oil control solenoid assembly.
   3. Connect the cam timing oil control solenoid assembly connector.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

Refer to PROCEDURE - Step 6
