Removal [10/2022 - ]: Procedure

  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY
    NOTE:

    If the mass air flow meter sub-assembly has been struck or dropped, replace it.

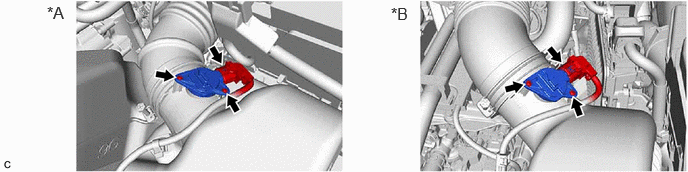

    1. GTY1129687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Gasoline Model *B for 1Motor-HEV Model
