Removal [09/2023 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL COVER

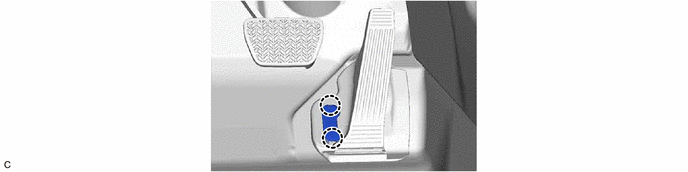

    1. GTY1199977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • If the accelerator pedal sensor assembly has been struck or dropped, replace it.
    • Do not disassemble the accelerator pedal sensor assembly.
    • The accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

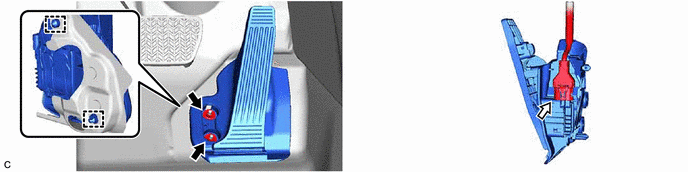

    1. GTY1194898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
