Removal [09/2023 - ]: Procedure

PRECAUTION

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE BATTERY SERVICE HOLE COVER
Refer to PROCEDURE - Step 3
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 4

REMOVE ECM

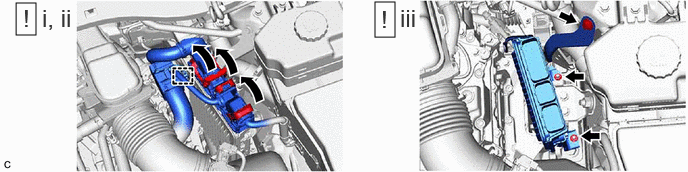

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rotate the 3 levers while pushing the locks, and disconnect the 3 ECM connectors.
NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
Disengage the clamp to separate the engine wire.
Remove the 2 nuts, bolt and ECM.
NOTE:
If the ECM has been struck or dropped, replace it.

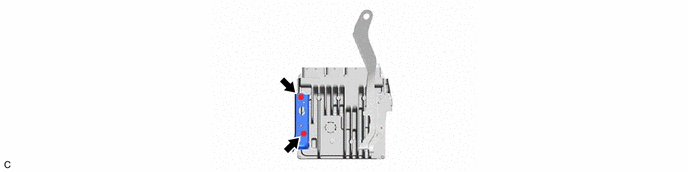

REMOVE NO. 1 ECM BRACKET

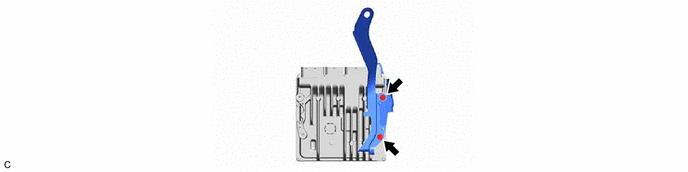

REMOVE NO. 2 ECM BRACKET
