Removal [09/2023 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1

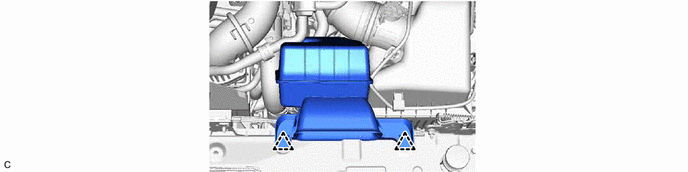

- REMOVE INLET AIR CLEANER ASSEMBLY

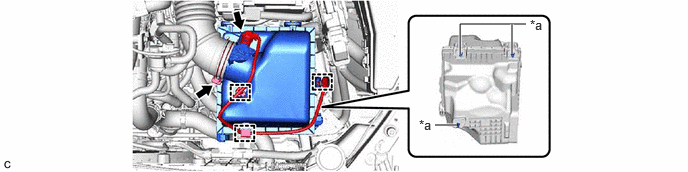

- REMOVE AIR CLEANER ASSEMBLY
- REMOVE ECM

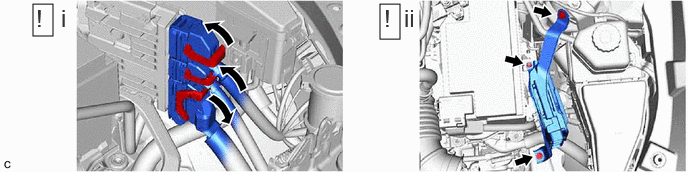

- Rotate the 3 levers while pushing the locks, and disconnect the 3 ECM connectors.NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
- Remove the 2 bolts, nut and ECM.NOTE:
If the ECM has been struck or dropped, replace it.
- Rotate the 3 levers while pushing the locks, and disconnect the 3 ECM connectors.

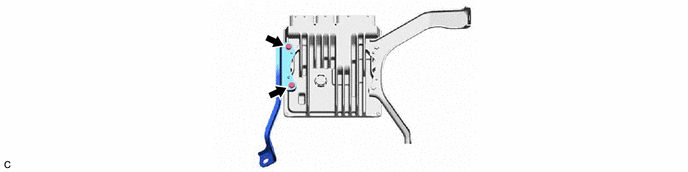

- REMOVE NO. 1 ECM BRACKET
- REMOVE NO. 2 ECM BRACKET
