On-Vehicle Inspection [09/2023 - ]: Procedure

Pre-procedure1

• Check the terminal voltage.
  1. Disconnect the No. 2 turbo pressure sensor connector.

• Measure the voltage according to the value(s) in the table below.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

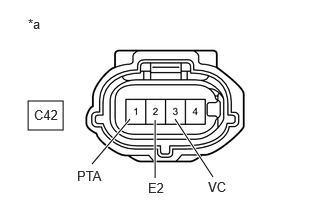

  *a	Front view of wire harness connector (to No. 2 Turbo Pressure Sensor)

  Standard Voltage

  Tester Connection	Condition	Specified Condition	Result
  C42-3(VC) - C42-2(E2)	Ignition switch ON	4.5 to 5.5 V	V
  C42-1(PTA) - C42-2(E2)	Ignition switch ON	3.0 to 5.5 V	V

  If the result is not as specified, repair or replace the wire harness or connector.

• Check the turbo pressure.
  1. Turn the ignition switch to ON.
  2. According to the display on the GTS read the Data List.

     Powertrain > Engine > Data List

     Tester Display
     Boost Pressure Sensor

     OK

     The value is approximately equal to atmospheric pressure.

     HINT:

     • Standard atmospheric pressure is approximately 101 kPa (abs) (15 psi (abs)).
     • For every 100 m (328 ft) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.15 psi). This varies by weather.

Post-procedure1

• None
