Installation [09/2023 - ]: Procedure

Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

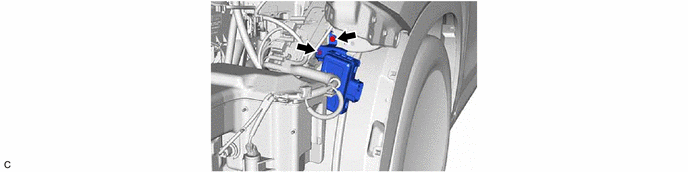

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

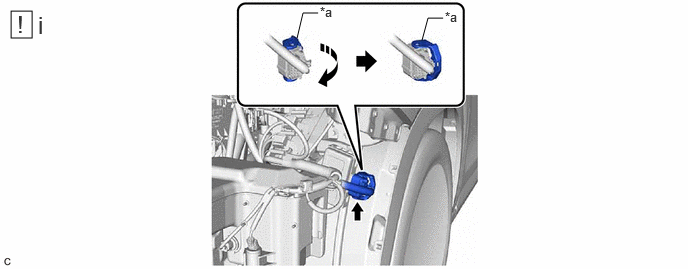

   *a

   Lock Lever

   -

   -

   1. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock it.

• For Sport Package:

  Refer to INSTALLATION [09/2023 - ]

• Except Sport Package:

  Refer to INSTALLATION [09/2023 - ]

Refer to PROCEDURE - Step 5

Refer to WORK PROCEDURE [09/2023 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ]
