Removal [12/2023 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [12/2023 - ]

  2. REMOVE HYBRID MOTOR CONTROL INVERTER ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

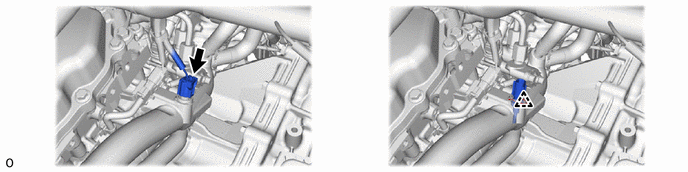

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.
    1. GTY1233425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
