Removal [12/2023 - ]: Procedure

  1. REMOVE FUEL DELIVERY PIPE

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.

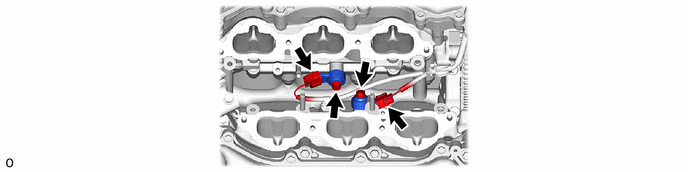

    1. GTY1233331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
