Installation [12/2023 - ]: Procedure

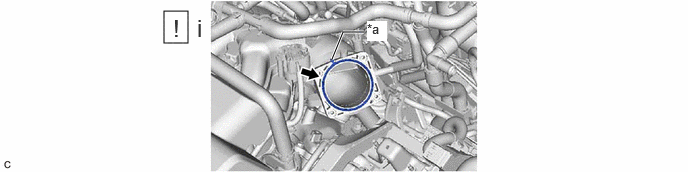

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Protrusion

   -

   -

   1. Install a new throttle body gasket to the intake air surge tank assembly with the protrusion of the throttle body gasket oriented as shown in the illustration.

NOTE: If the throttle body with motor assembly has been struck or dropped, replace it.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

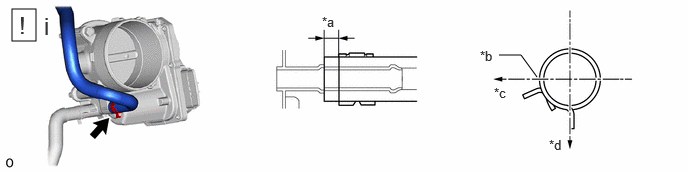

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	1 to 5 mm (0.0394 to 0.197 in.)	*b	Paint
   *c	Left Side of Vehicle	*d	Lower Side of Vehicle

   1. Connect the No. 2 water by-pass hose to the throttle body with motor assembly and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.

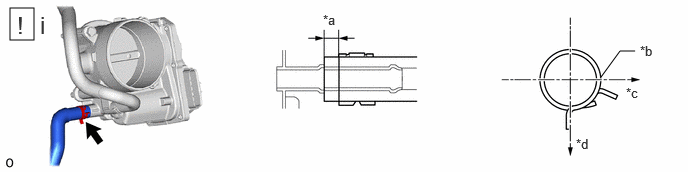

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	1 to 5 mm (0.0394 to 0.197 in.)	*b	Paint
   *c	Front Side of Vehicle	*d	Lower Side of Vehicle

   1. Connect the water by-pass hose to the throttle body with motor assembly and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.

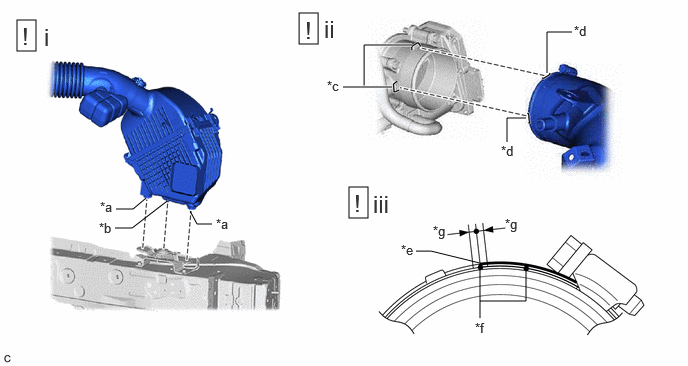

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Grommet	*b	Pin
   *c	Protrusion	*d	Cutout
   *e	Hose Clamp End	*f	Paint Mark
   *g	2.0 mm (0.0787 in.)	-	-

   1. Engage the 2 grommets and pin to install the air cleaner assembly with air cleaner hose.
   2. Install the air cleaner hose to the throttle body with motor assembly.
      NOTE:

      Align the 2 cutouts of the air cleaner hose with the 2 protrusions of the throttle body with motor assembly.

   3. Tighten the hose clamp in the position shown in the illustration.
      NOTE:

      Make sure that the end of the hose clamp is positioned as shown in the illustration.

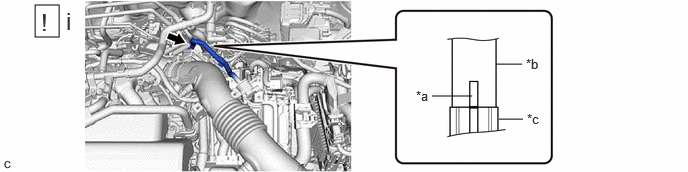

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Paint	*b	Fuel Vapor Feed Hose Assembly
   *c	Intake Air Surge Tank	-	-

   1. Connect the fuel vapor feed hose assembly to the intake air surge tank.
      NOTE:

      Make sure the position of the hose.

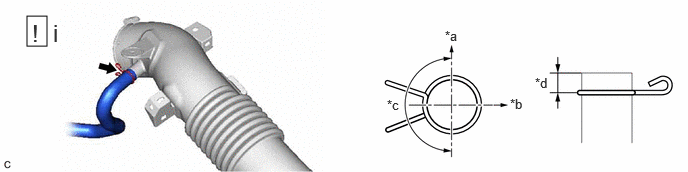

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Upper Side of Vehicle	*b	Front Side of Vehicle
   *c	180°	*d	5 to 11 mm (0.197 to 0.433 in.)

   1. Connect the No. 2 ventilation hose to the air cleaner hose and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.
