Repair and Diagnosis (Single Page)
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Inflatable Restraint System
>>
Removal And Installation
>>
Restraints Control Module (RCM)
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Restraints Control Module (RCM): Notes

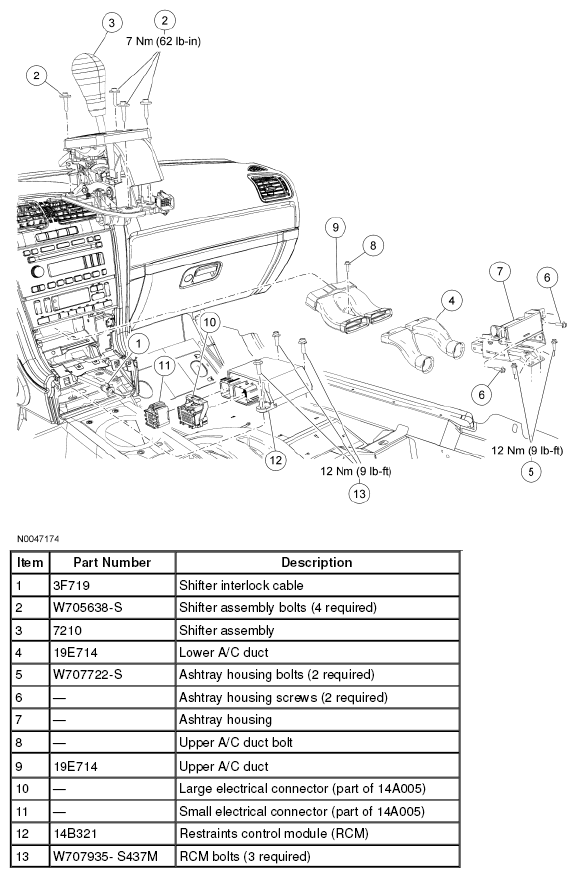

Fig 1: Identifying Restraints Control Module (RCM) Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
