Heated Seat Module Connector End View - C3304A

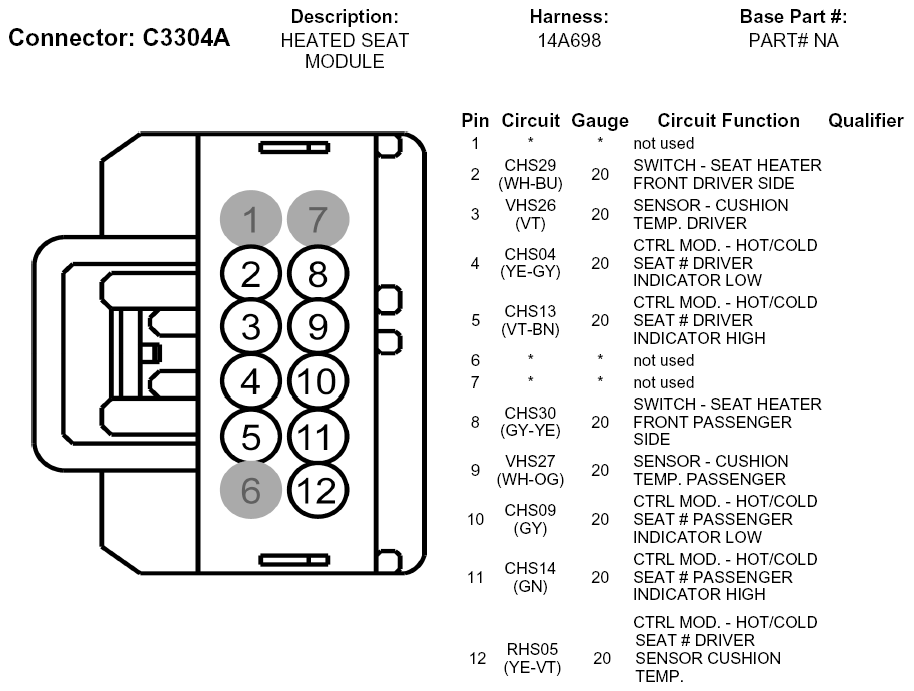

Fig 1: Heated Seat Module Connector End View (C3304A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
