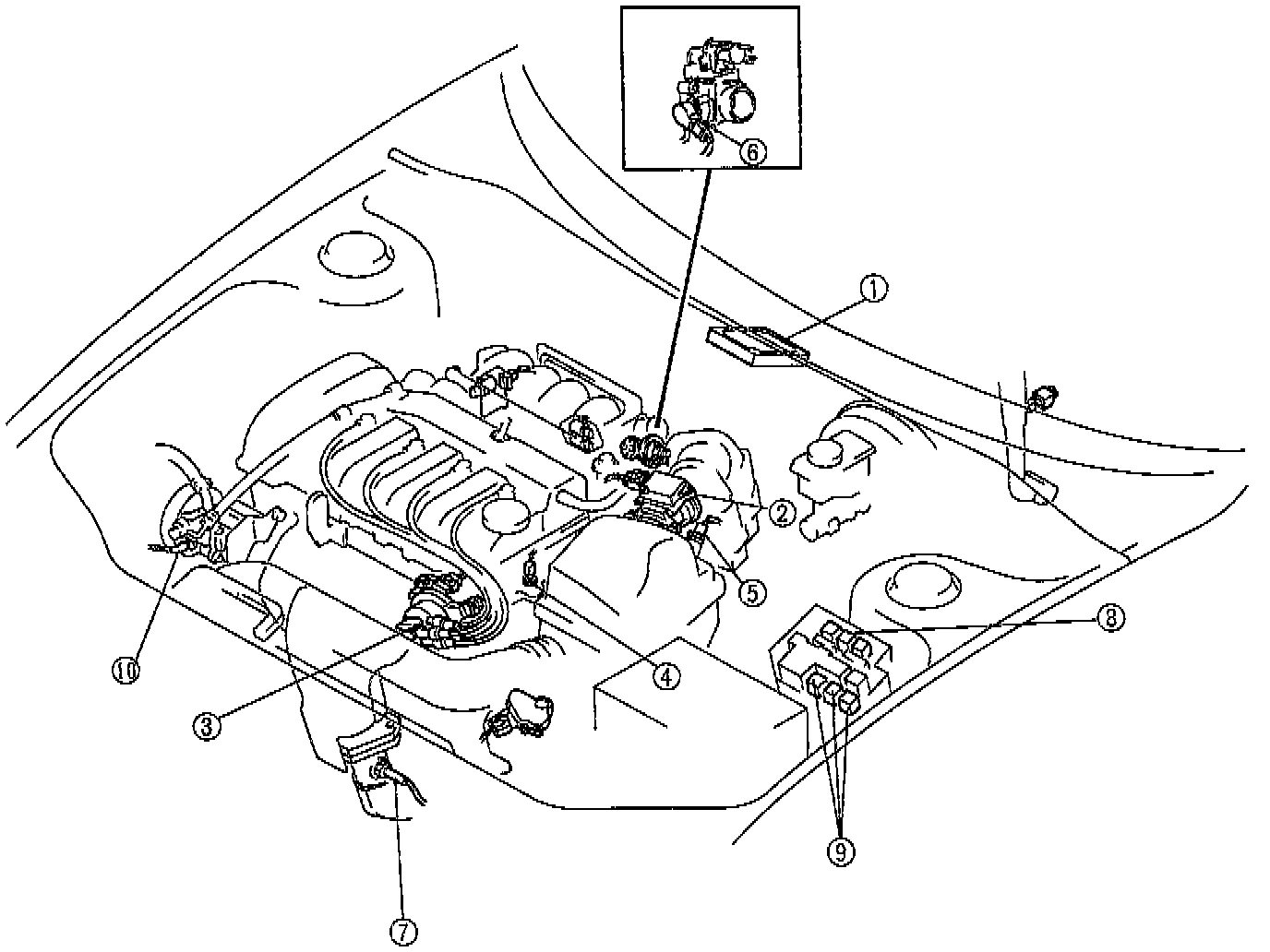

Automatic Trans.




1. Powertrain control module (PCM)
2. Mass air flow sensor
3. Camshaft position sensor
4. Engine coolant temperature sensor
5. Intake air temperature sensor
6. Throttle position sensor
7. Heated oxygen sensor
8. Main relay
9. Coolant fan relays
10. Power steering pressure switch
