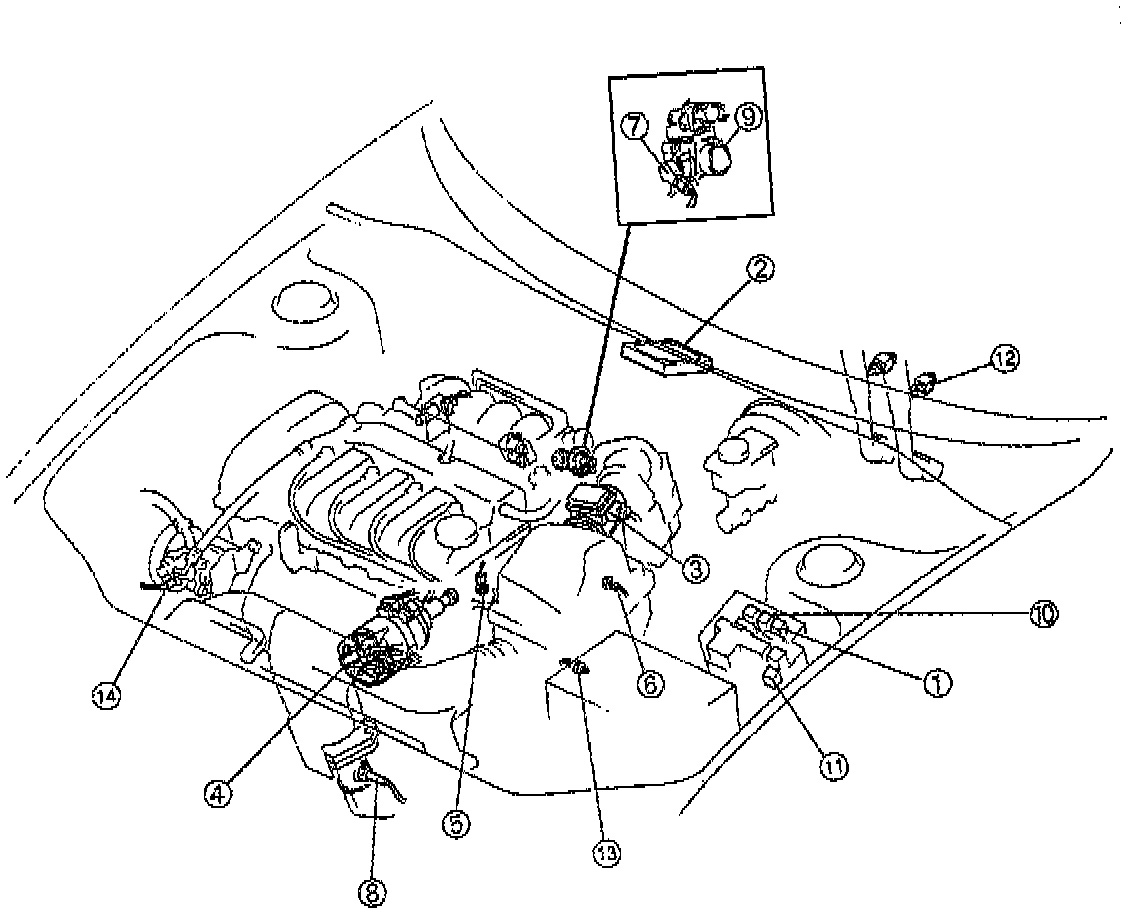

Manual Trans.




1. Fuel pump relay
2. Engine control module
3. Mass air flow sensor
4. Camshaft position sensor
5. Engine coolant temperature sensor
6. Intake air temperature sensor
7. Throttle position sensor
8. Heated oxygen sensor
9. Closed throttle position switch Inspection
10. Main relay
11. Coolant fan relay
12. Clutch switch
13. [1][2]Neutral switch
14. P/S pressure switch Inspection
