Rear Door Assembly/Disassembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in Fig 1 .
  2. Assemble in the reverse order of disassembly.

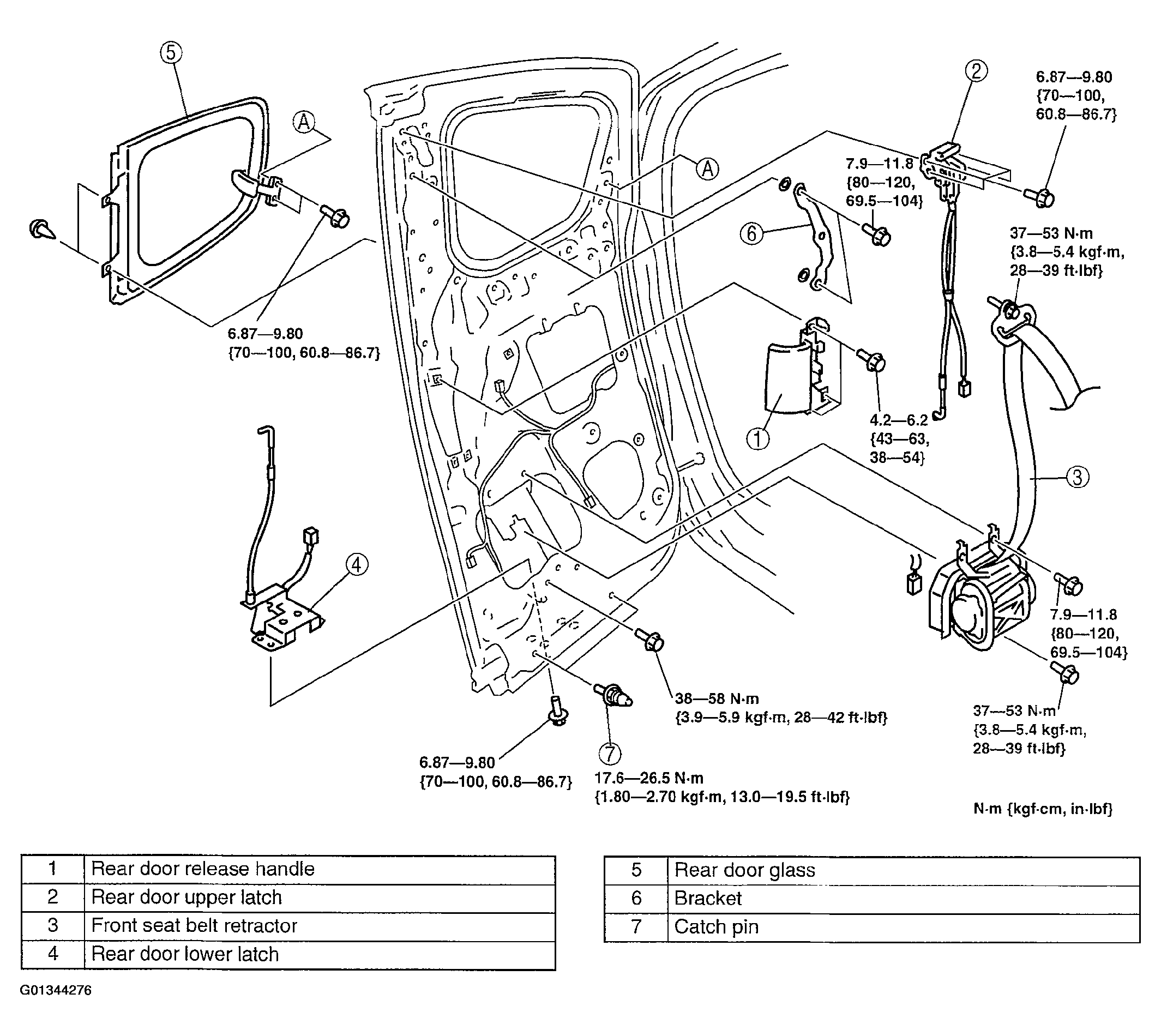

    Fig 1: Assembling/Disassembling Rear Door
    G01344276Courtesy of MAZDA MOTORS CORP.
