Timing Cover: Service and Repair

TIMING BELT COVER-UPPER AND LOWER

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the crankshaft pulley.





3. Remove the bolts and the lower timing belt cover.
4. Lower the vehicle.

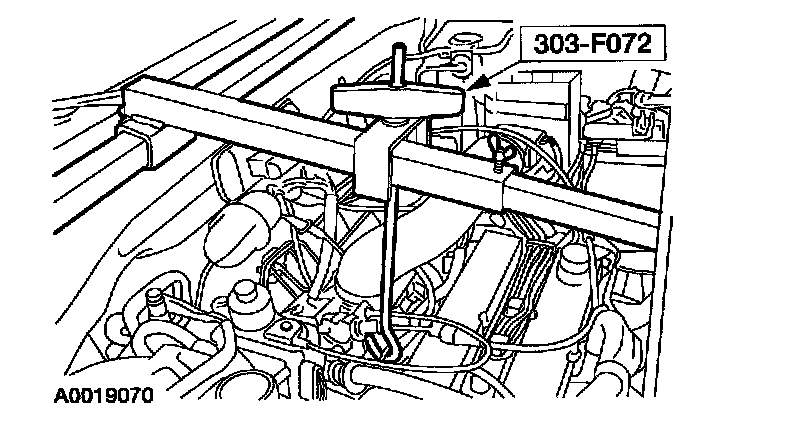

5. Install the special tool.





6. Remove the ground strap.





7. Remove the engine mount upper bracket.





8. Remove the studs.





9. Remove the knock sensor connector.





10. Remove the bolts and the upper timing belt cover.
11. To install, reverse the removal procedure.
