Pinpoint Test 1: All Power Windows Are Inoperative

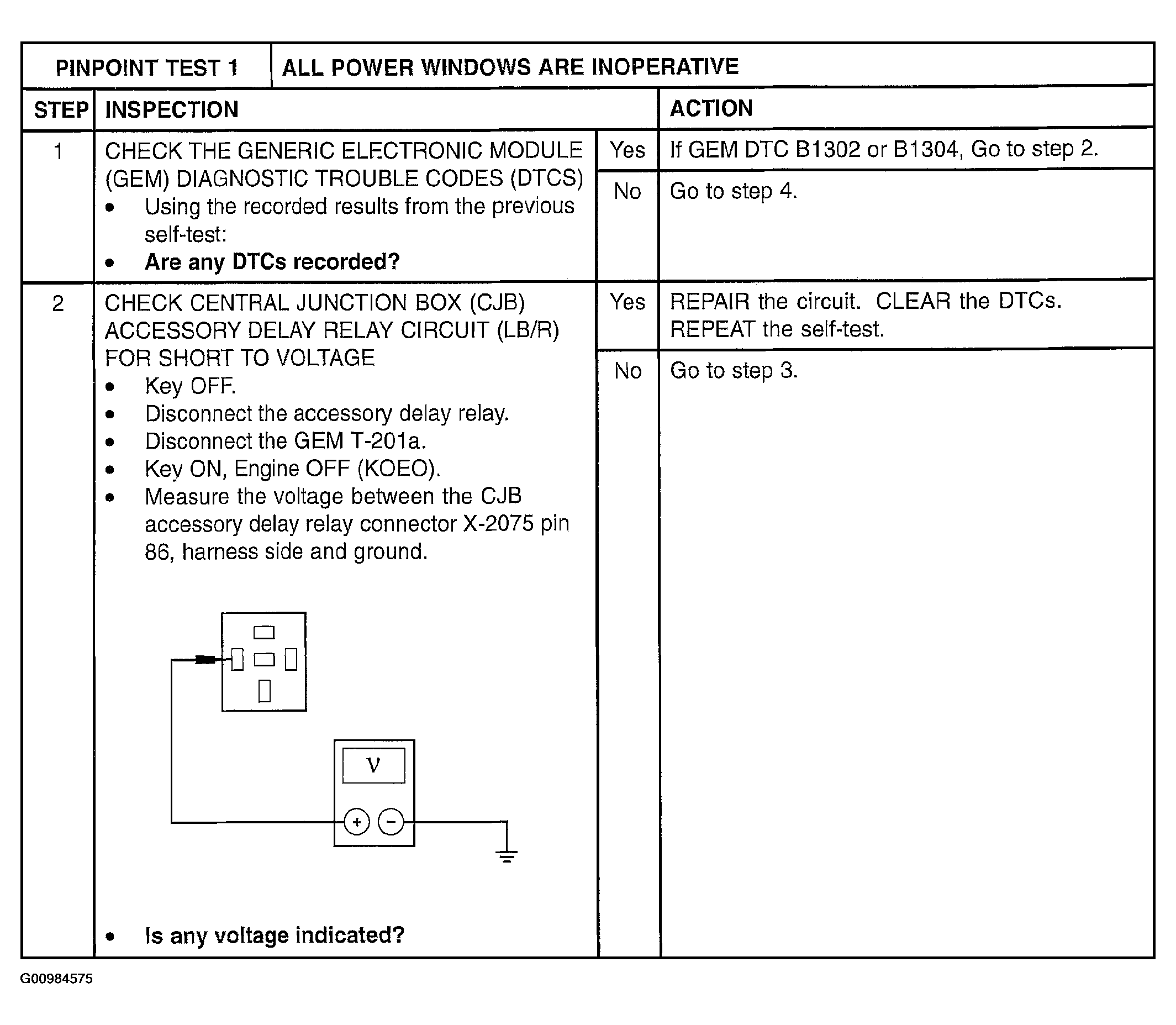

Fig 1: Pinpoint Test 1: All Power Windows Are Inoperative - Inspection Procedure Chart (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

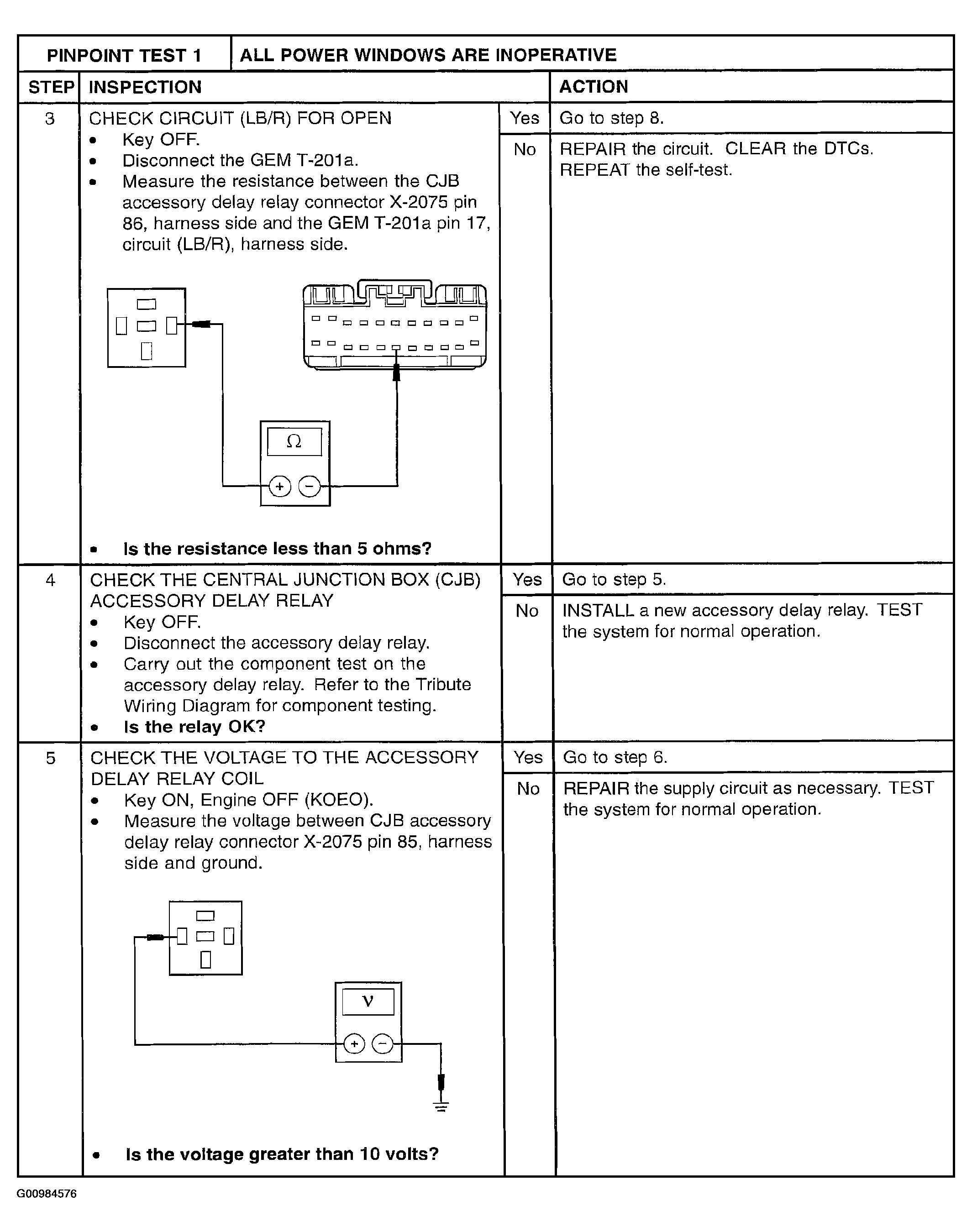

Fig 2: Pinpoint Test 1: All Power Windows Are Inoperative - Inspection Procedure Chart (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.

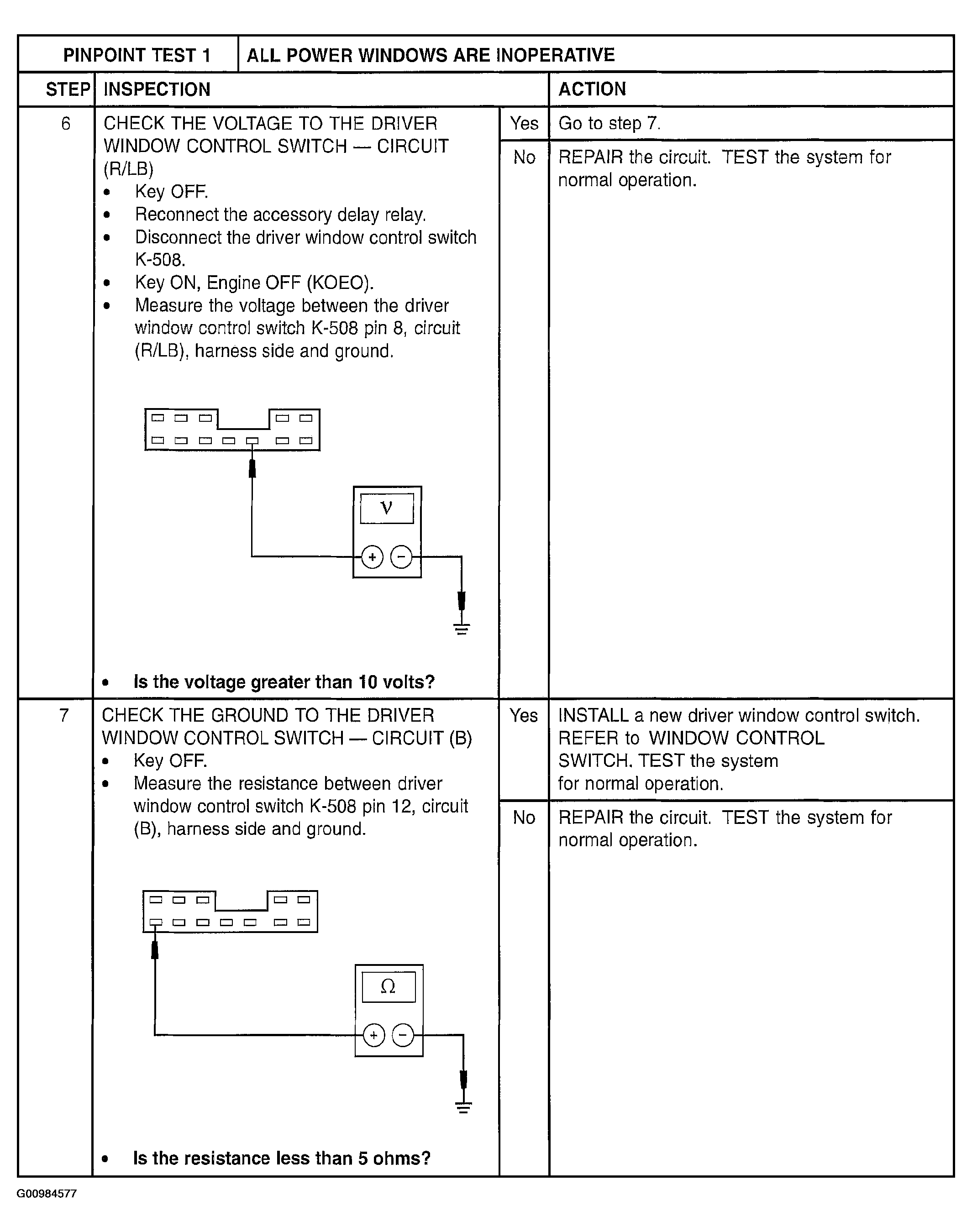

Fig 3: Pinpoint Test 1: All Power Windows Are Inoperative - Inspection Procedure Chart (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

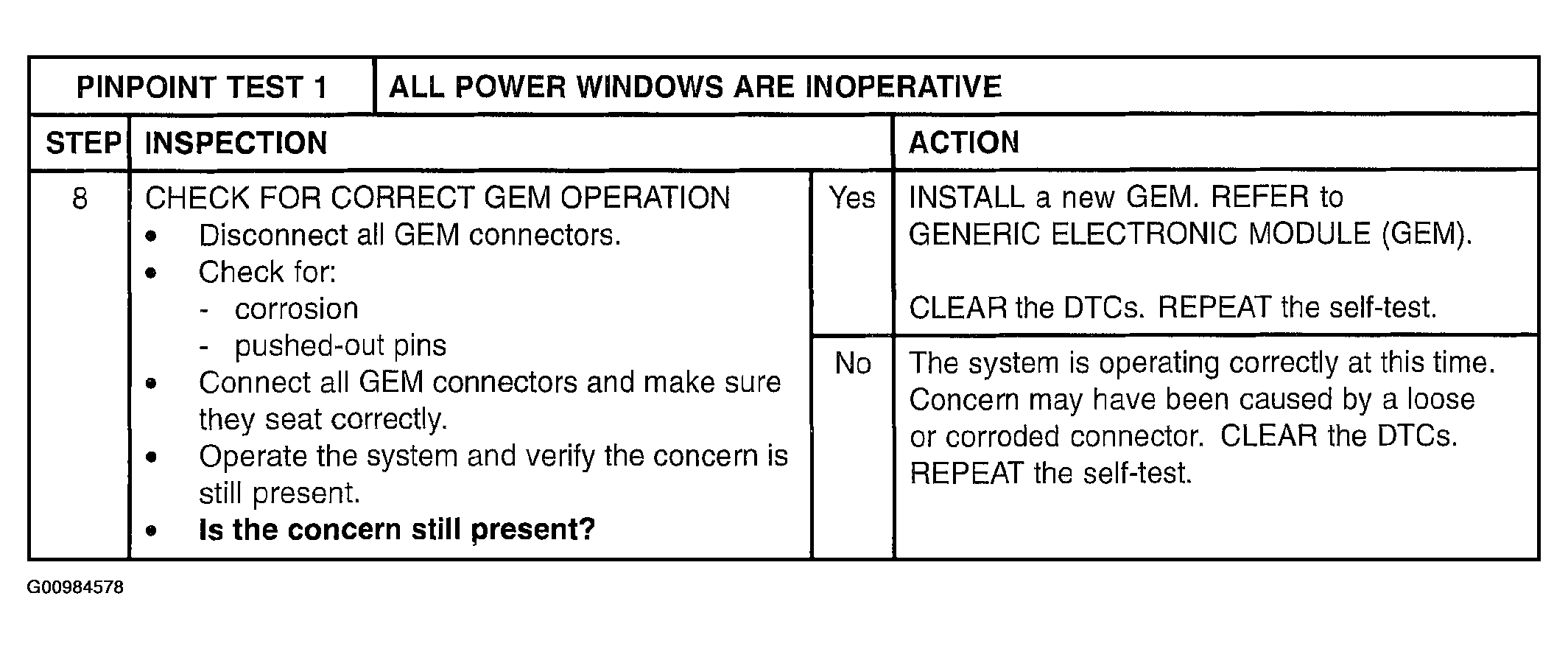

Fig 4: Pinpoint Test 1: All Power Windows Are Inoperative - Inspection Procedure Chart (Step 8)

Courtesy of MAZDA MOTORS CORP.
