Engine Technical Data: Notes

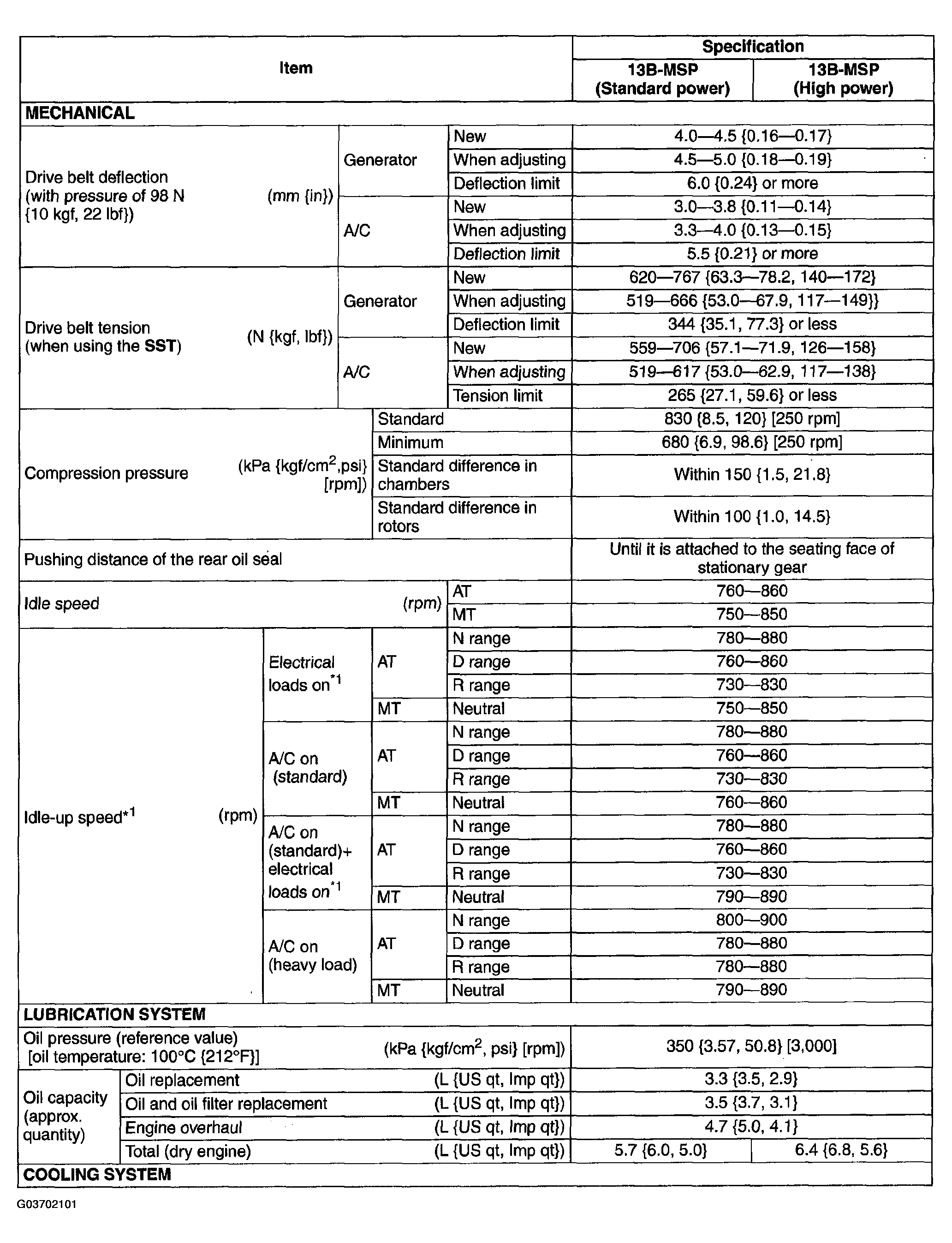

Fig 1: Engine Technical Data (1 Of 2)
G03702101Courtesy of MAZDA MOTORS CORP.

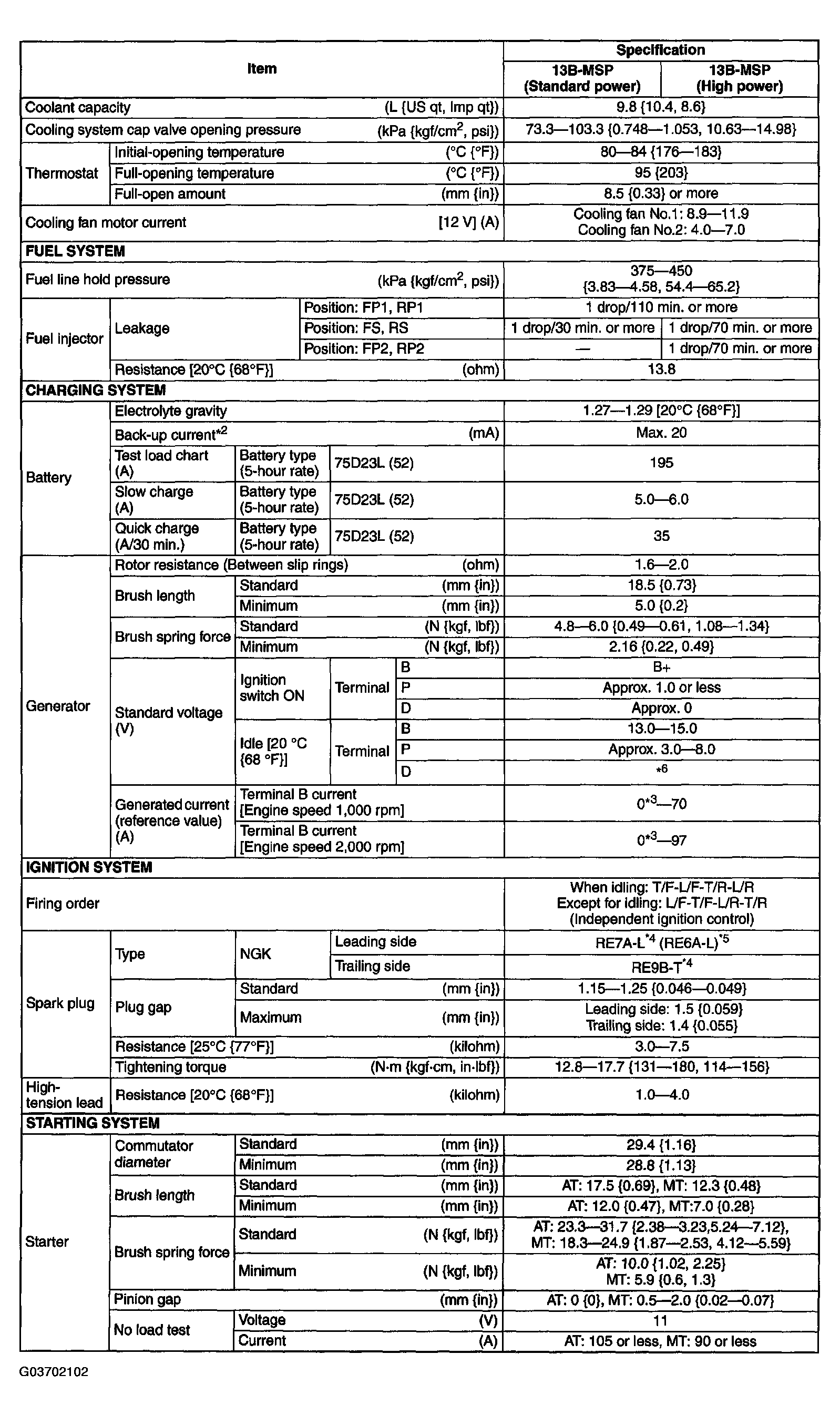

Fig 2: Engine Technical Data (2 Of 2)
G03702102Courtesy of MAZDA MOTORS CORP.
