Quick Diagnostic Chart

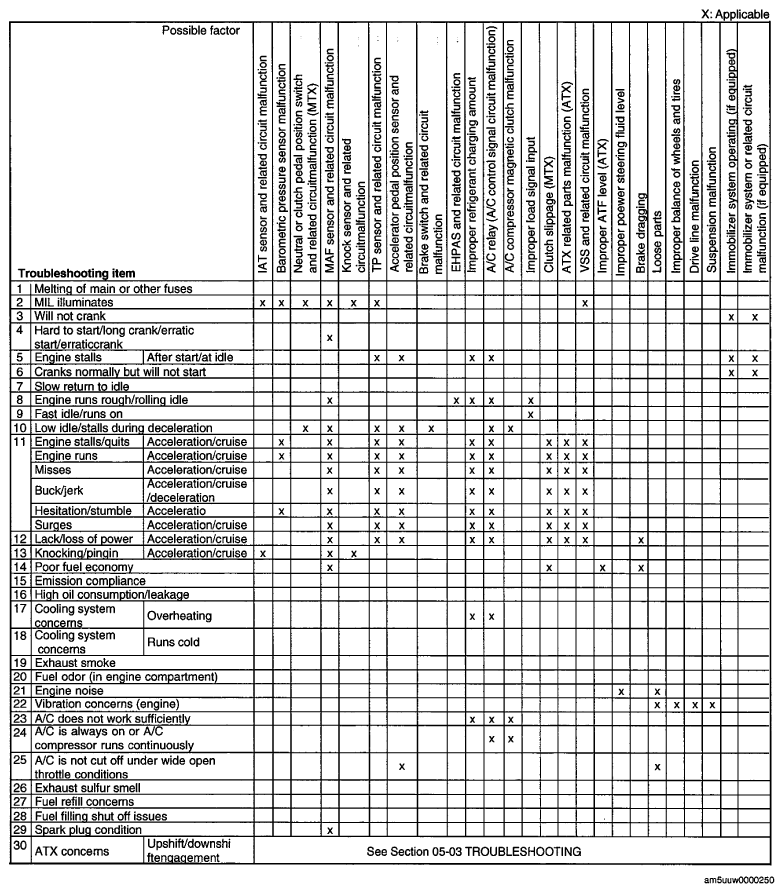

Fig 1: Quick Diagnostic Chart [L3] (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

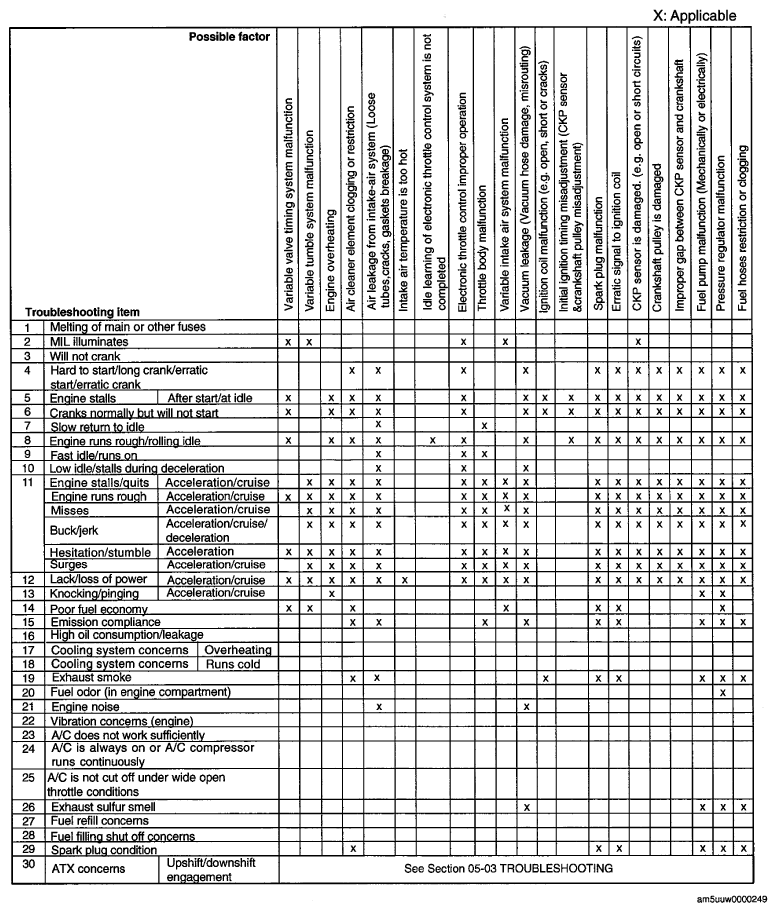

Fig 2: Quick Diagnostic Chart [L3] (2 Of 3)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Quick Diagnostic Chart [L3] (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
