Generator Disassembly/Assembly [13B-MSP]

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

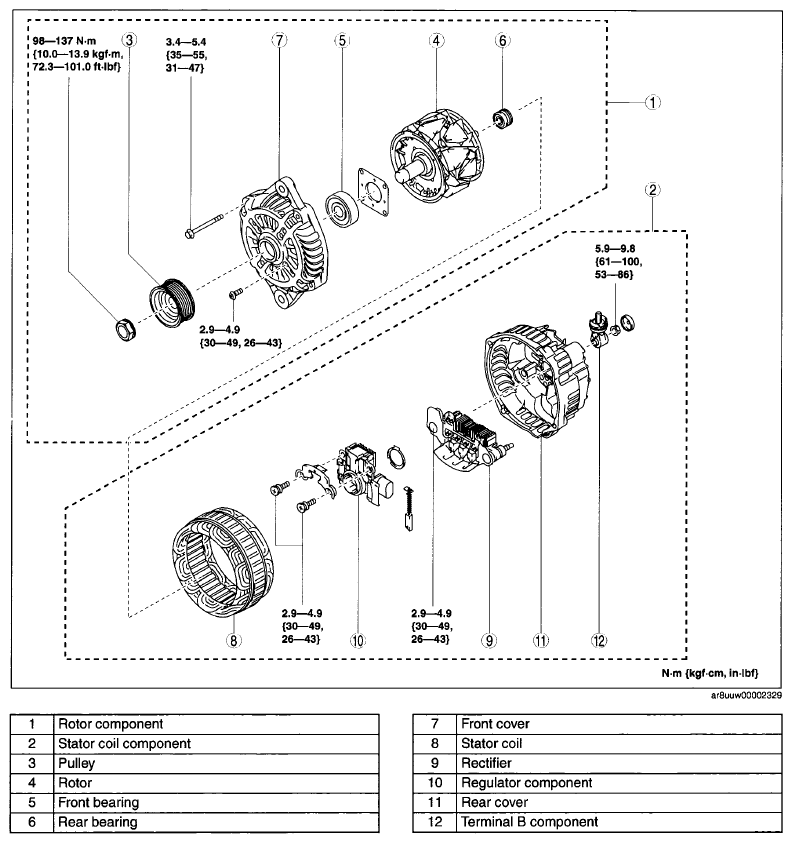

    Fig 1: Disassembled View Of Generator With Torque Specifications
    G05981088Courtesy of ABLE BODY CORP.
