| DETECTION CONDITION |

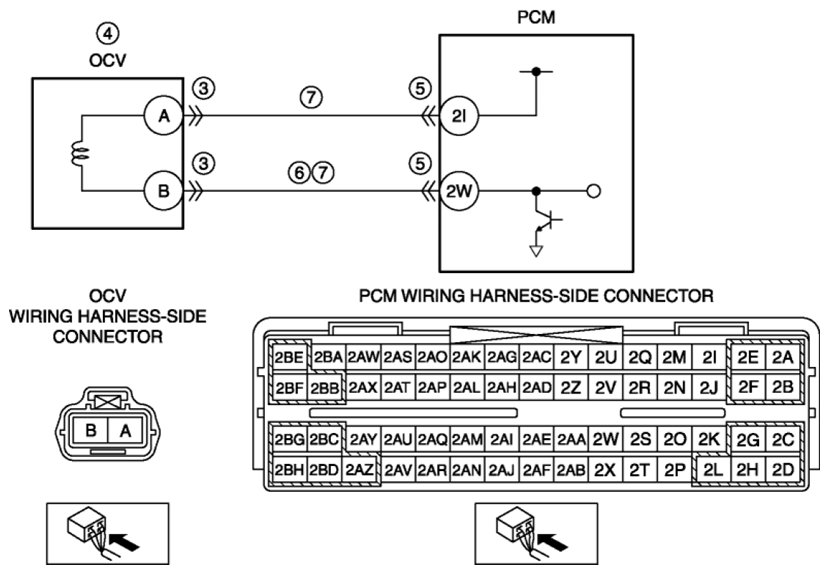

- The PCM monitors the OCV current. If the PCM detects that the OCV control current (calculated from the OCV) is above the specification current (calculated from battery positive voltage), the PCM determines that the OCV circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
