Front Door Latch Switch Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    5. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
    6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Verify that the continuity is as indicated in the table.
    Fig 1: Door Latch Switch Continuity Reference Chart
    G09077032Courtesy of MAZDA MOTORS CORP.

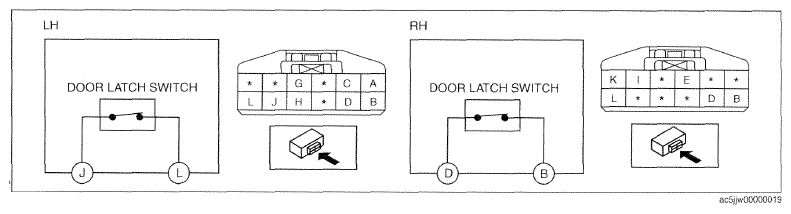

    Fig 2: Door Latch Switch Circuit Diagram
    G09787761Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the front door latch and lock actuator.
    NOTE:
    • When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
    Fig 3: Pressing Latch Lever Using Flathead Screwdriver
    G09077034Courtesy of MAZDA MOTORS CORP.
