Exhaust Manifold Bracket Installation Note

Temporarily tighten the exhaust manifold bracket installation bolts.
Tighten the bolt in the order shown in the figure.

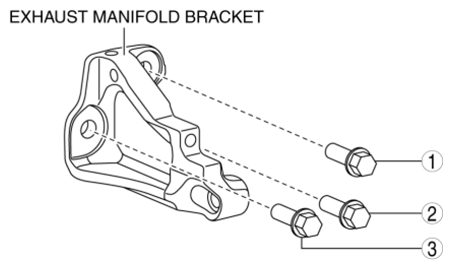

Fig 1: Exhaust Manifold Bracket Installation Bolts Tightening Sequence
Courtesy of MAZDA

Tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
