Center Map Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
CAUTION:
- When inserting the remover tool in the gap between the center map light and the lens, the remover tool could interfere with the center map light and scratch or damage it. When removing the lens from the center map light, apply protective tape to the center map light.

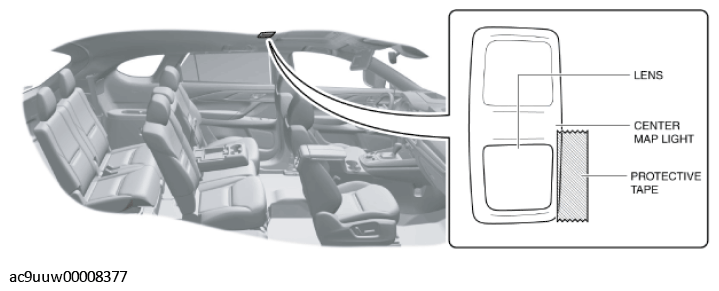

To prevent scratches, apply protective tape to the position shown in the figure.

Fig 1: Apply Protective Tape To Center Map Light
Courtesy of MAZDA MOTORS CORP.
Press the lens to assure a space for inserting the remover tool.

Fig 2: Pressing Lens
Courtesy of MAZDA MOTORS CORP.
Insert the remover tool into the gap between the lens and the center map light.

Fig 3: Inserting Remover Tool Into Gap Between Lens And Center Map Light
Courtesy of MAZDA MOTORS CORP.

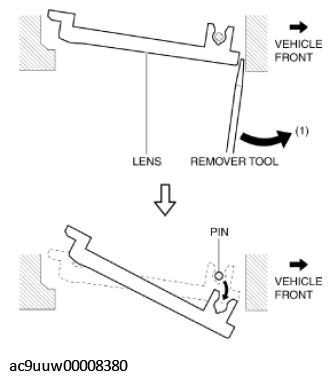

Move the remover tool in the direction of arrow (1) shown in the figure, pull out the lens from the pin.

Fig 4: Pulling Out Lens From Pin
Courtesy of MAZDA MOTORS CORP.
Remove the lens.

Fig 5: Center Map Light Lens
Courtesy of MAZDA MOTORS CORP.

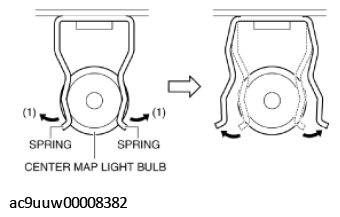

Move the center map light spring in the direction of the arrows (1) shown in the figure to detach the center map light spring from the center map light bulb.

Fig 6: Detaching Center Map Light Spring From Center Map Light Bulb
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).
Remove the center map light bulb.

Fig 7: Removing Center Map Light Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
