Central Junction Box
NOTE:
Central junction box may also be referred to as passenger compartment fuse panel.
NOTE:

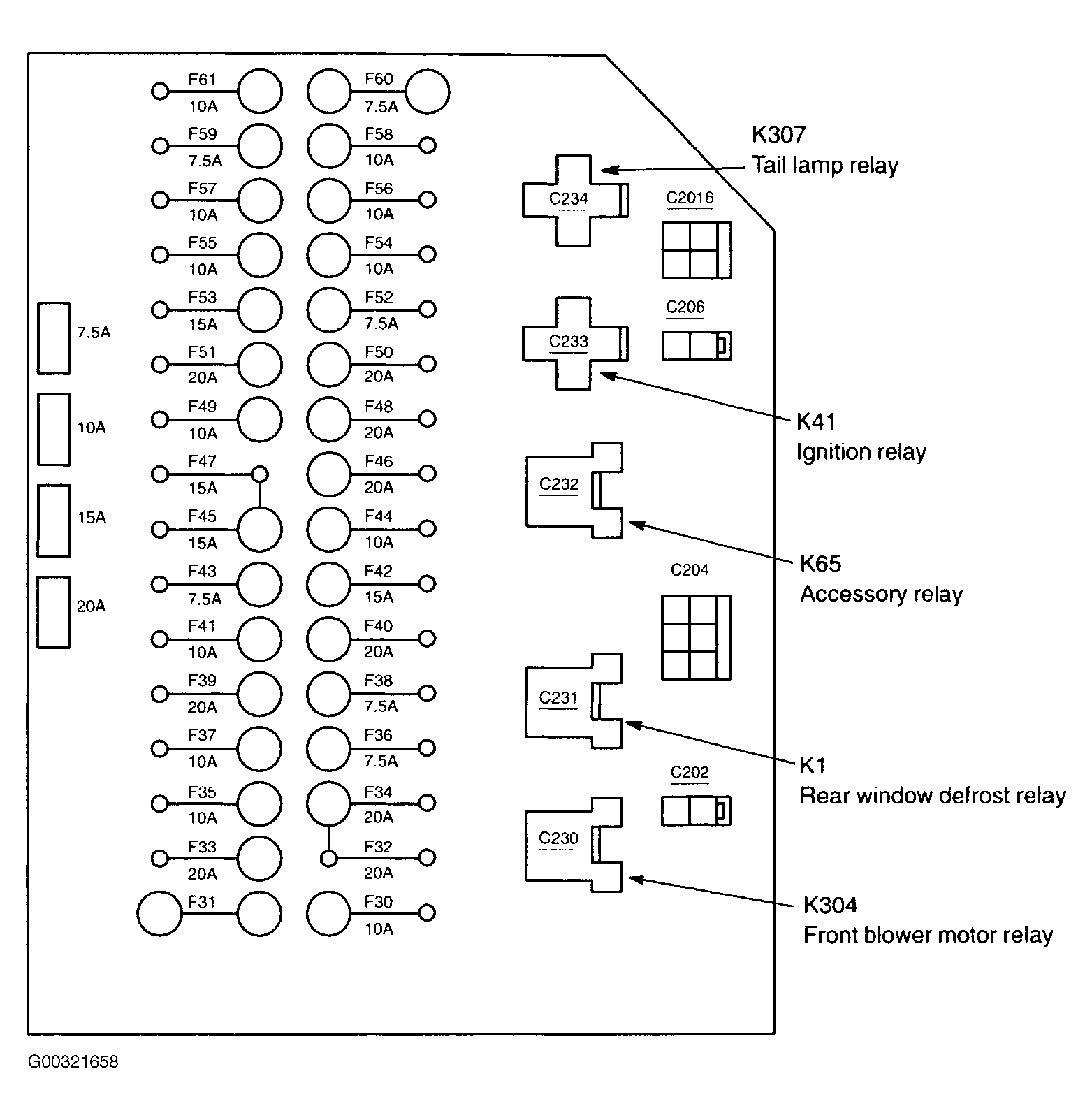

Central junction box is located under driver's side of instrument panel. See Figure and Figure
.
CENTRAL JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C234 | K307 Tail lamp relay |
| C233 | K41 Ignition Relay |
| C232 | K65 Accessory Relay |
| C231 | K1 Rear window defrost relay |
| C230 | K304 Front blower motor relay |
CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F30 | 10A | Rear window defrost switch (18578), Power mirrors |
| F31 | - | not used |
| F32 | 20A | Rear window defrost grid (18C618) |
| F33 | 20A | Front blower motor, Front blower motor speed controller (19E624) |
| F34 | 20A | Rear window defrost grid (18C618) |
| F35 | 10A | Transmission Range (TR) sensor, Transaxle Control Module (TCM), Lighting control module, Smart Entry Control (SEC)/Timer module, ABS control module (2C219) |
| F36 | 7.5A | Climate control panel, front, Temperature door variable resistor, Blend door actuator, front, Mode actuator, Electronic Automatic Temperature Control (EATC) module (19980) |
| F37 | 10A | Deactivator switch, Instrument cluster, Data Link Connector (DLC) (14489), Speed control actuator module, Rear blower motor relay, Driver seat module (14C718), Message center switch, Bulb check relay, Fuel pump relay, A/C relay, High speed fan control relay 1, High speed fan control relay 2, Low speed fan control relay |
| F38 | 7.5A | Powertrain Control Module (PCM) (12A650), Lighting control module |
| F39 | 20A | Front blower motor, Front blower motor speed controller (19E624) |
| F40 | 20A | Power point, console 1, Power point, console 2 |
| F41 | 10A | Hazard flasher switch |
| F42 | 15A | Video cassette player, Video display, Radio (18806), Subwoofer amplifier (18C804) |
| F43 | 7.5A | Heated Oxygen Sensor (HO2S), front, Heated Oxygen Sensor (HO2S), rear |
| F44 | 10A | Rear wiper motor assembly, Rear window washer pump motor |
| F45 | 15A | Blower motor, rear (18456), Rear blower motor relay |
| F46 | 20A | Windshield wiper motor (17508), Windshield washer pump motor (17618), Wiper/washer amplifier assembly, front |
| F47 | 15A | Blower motor, rear (18456), Rear blower motor relay |
| F48 | 20A | Power point, rear (19G247) |
| F49 | 10A | Hazard flasher switch, Anti-theft ON indicator |
| F50 | 20A | Cigar lighter, front (15055) |
| F51 | 20A | Brake pedal position switch (13480), Trailer tow control unit |
| F52 | 7.5A | Smart Entry Control (SEC)/Timer module, Exterior rear view mirror switch (17B676) |
| F53 | 15A | Interior lamps, Driver seat module (14C718), Roof opening panel motor assembly (15790) |
| F54 | 10A | Powertrain Control Module (PCM) (12A650), Data Link Connector (DLC) (14489), Throttle position switch, Idle Speed Control (ISC), Manifold Absolute Pressure (MAP)/Barometric Pressure (BARO) solenoid, EVAP canister purge vacuum cut valve bypass solenoid, EVAP canister vent control solenoid |
| F55 | 10A | Radio (18806), CD changer (18D806), Radio control, rear, Video cassette player, Rear Seat Entertainment (RSE) module |
| F56 | 10A | Air bag diagnostic monitor |
| F57 | 10A | Lamp assembly, right rear (13404), Lamp assembly, left rear (13405), Licence plate lamps, Trailer tow |
| F58 | 10A | Transaxle Control Module (TCM), Rear wiper motor assembly, Instrument cluster, Electronic Automatic Temperature Control (EATC) module (19980) |
| F59 | 7.5A | Rear Seat Entertainment (RSE) module, Radio (18806), Instrument Cluster and Panel Illumination |
| F60 | 7.5A | Seat heater switch, driver side, Seat heater switch, passenger side |
| F61 | 10A | Fog lamp switch, Park/turn lamp, right front (13411), Side lamp, right front (13411), Multifunction switch, Park/turn lamp, left front (13411), Side lamp, left front (13411) |
