Timing Belt: Installation

    CAUTION: Make sure the arrow on the timing belt is pointing away from the engine when installed.
    CAUTION: A new timing belt has three white timing marks that indicate the correct timing positions of the camshafts and the crankshaft. These marks will help make sure that the engine is timed correctly. When the engine is correctly timed each white timing mark on the timing belt will be aligned with the corresponding camshaft and crankshaft timing mark on the crankshaft sprocket and the camshaft sprockets. There should be 40 timing belt teeth between the timing marks on the LH and RH camshaft sprockets and 43 teeth between the timing mark on the LH camshaft sprocket and the timing mark on the crankshaft sprocket.
    CAUTION: It is necessary to verify that the camshaft timing marks are aligned with the timing marks on the seal plate, and that the crankshaft sprocket timing mark is aligned with the timing mark on the oil pump.
    When installing the timing belt, start at the crankshaft sprocket moving around to the camshaft sprockets in a counterclockwise direction. Do not allow any slack in the timing belt between the crankshaft sprocket and camshaft sprockets. After all of the timing marks are matched up with the timing belt installed, slip the timing belt onto the timing belt tensioner.

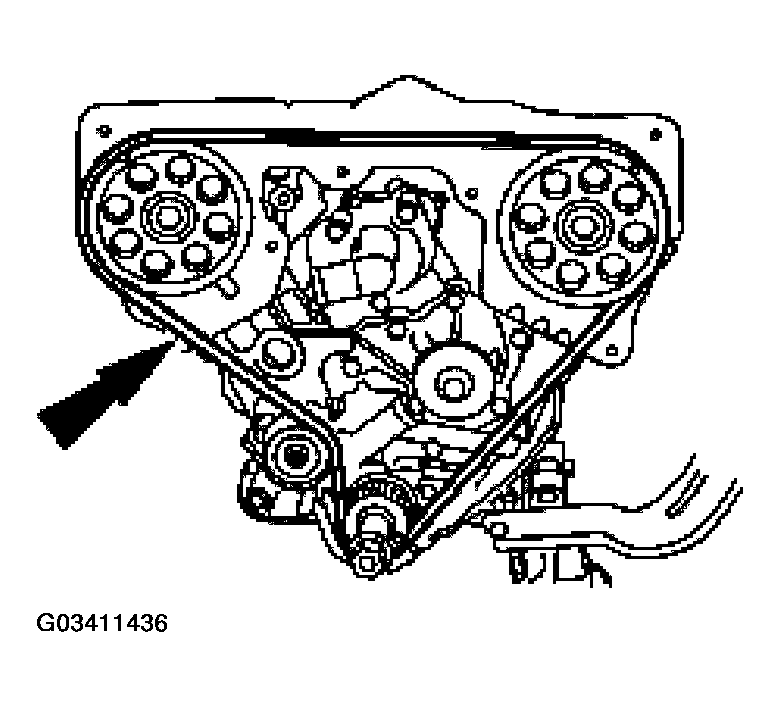

    Fig 1: Aligning Timing Marks And Installing Timing Belt
    G03411436Courtesy of FORD MOTOR CO.
  1. Align the timing marks and install the timing belt.
  2. Raise the vehicle.
  3. Install the crankshaft pulley bolt.

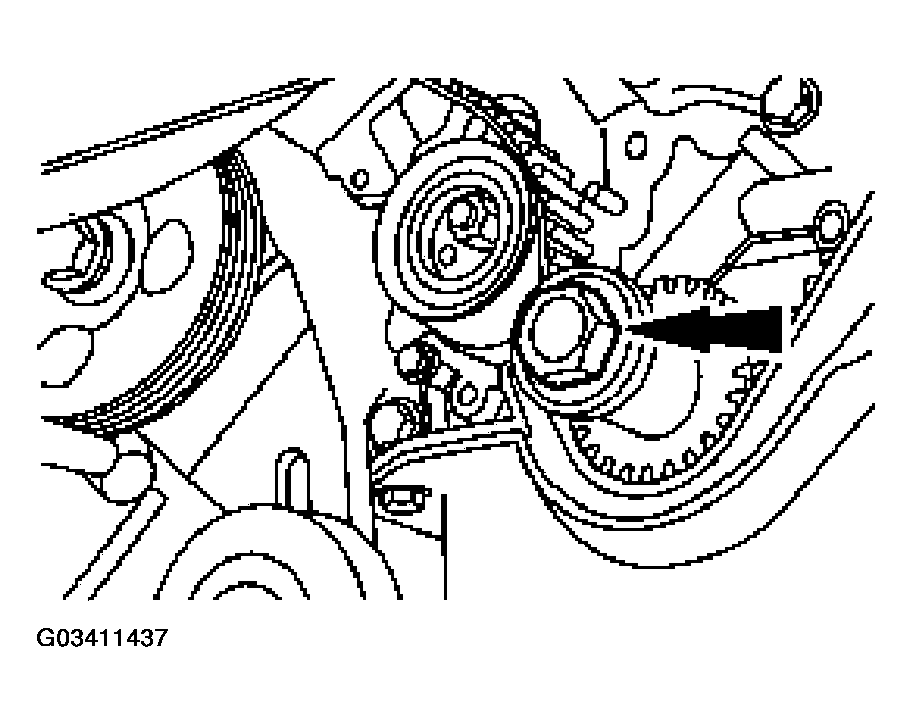

    Fig 2: Installing Crankshaft Pulley Bolt
    G03411437Courtesy of FORD MOTOR CO.
  4. Rotate the tensioner clockwise and counterclockwise a minimum of two times.

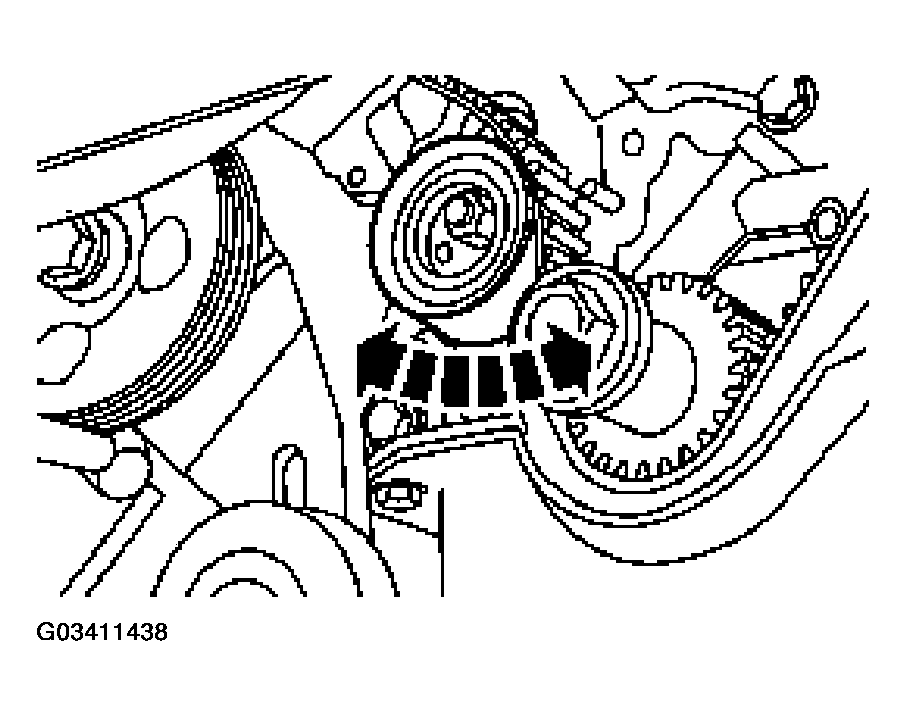

    Fig 3: Rotating Tensioner Clockwise And Counterclockwise
    G03411438Courtesy of FORD MOTOR CO.
  5. Tighten the tensioner lock nut.

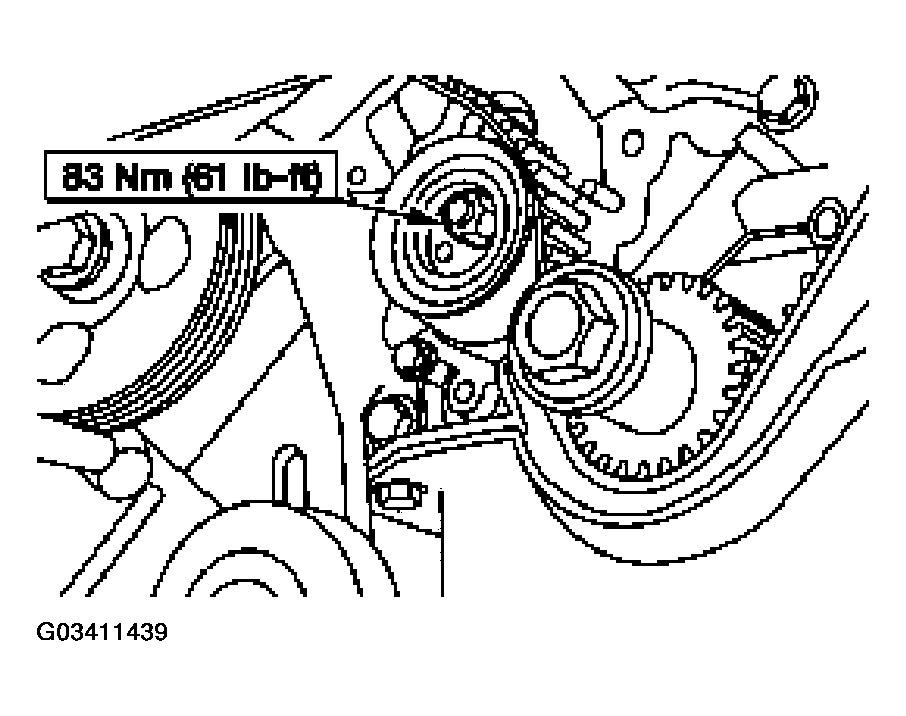

    Fig 4: Tightening Tensioner Lock Nut
    G03411439Courtesy of FORD MOTOR CO.
  6. Turn the crankshaft clockwise a minimum of two times and slowly set piston number one at TDC.

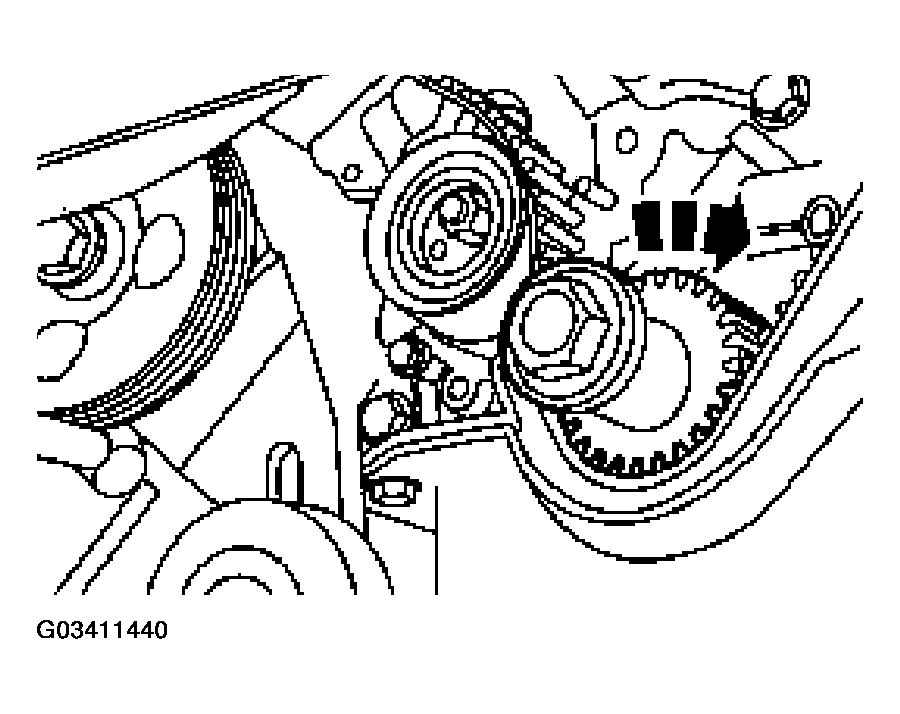

    Fig 5: Turning Crankshaft Clockwise
    G03411440Courtesy of FORD MOTOR CO.
  7. CAUTION: Timing belt deflection specification is for a cold engine.
  8. Measure the timing belt deflection between the camshaft sprockets.
    1. Apply pressure midway between the camshaft sprockets.
    2. Measure the timing belt deflection.
      Fig 6: Measuring Timing Belt Deflection Between Camshaft Sprockets
      G03411441Courtesy of FORD MOTOR CO.
  9. Remove the crankshaft pulley bolt.
    Fig 7: Removing Crankshaft Pulley Bolt
    G03411442Courtesy of FORD MOTOR CO.
  10. Lower the vehicle.
  11. Install the outer timing belt guide.

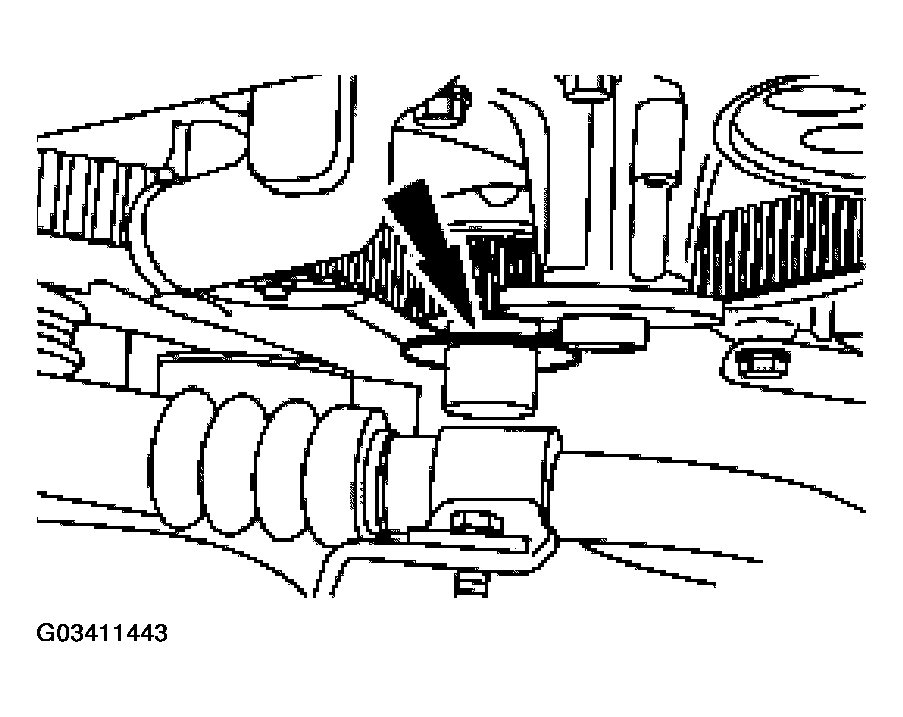

    Fig 8: Installing Outer Timing Belt Guide
    G03411443Courtesy of FORD MOTOR CO.
  12. Install the upper timing belt cover.
    1. Position the upper and lower timing belt covers.
    2. Install the seven upper timing belt cover bolts.

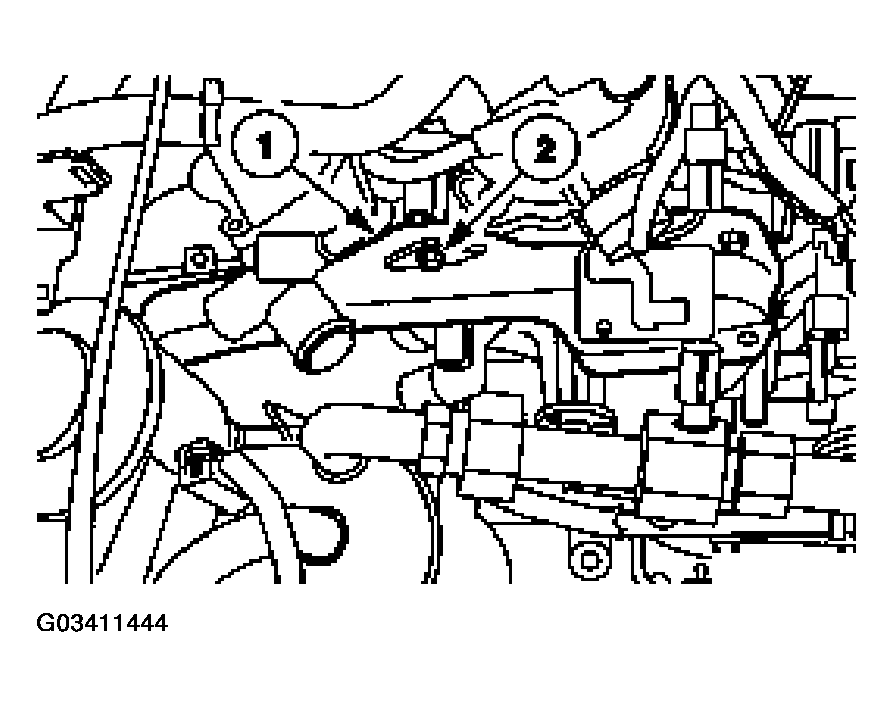

      Fig 9: Installing Upper Timing Belt Cover
      G03411444Courtesy of FORD MOTOR CO.
  13. Install the PCV breather hoses and tube.
    1. Connect the PCV breather hoses and position the clamps.
    2. Install the bolt.

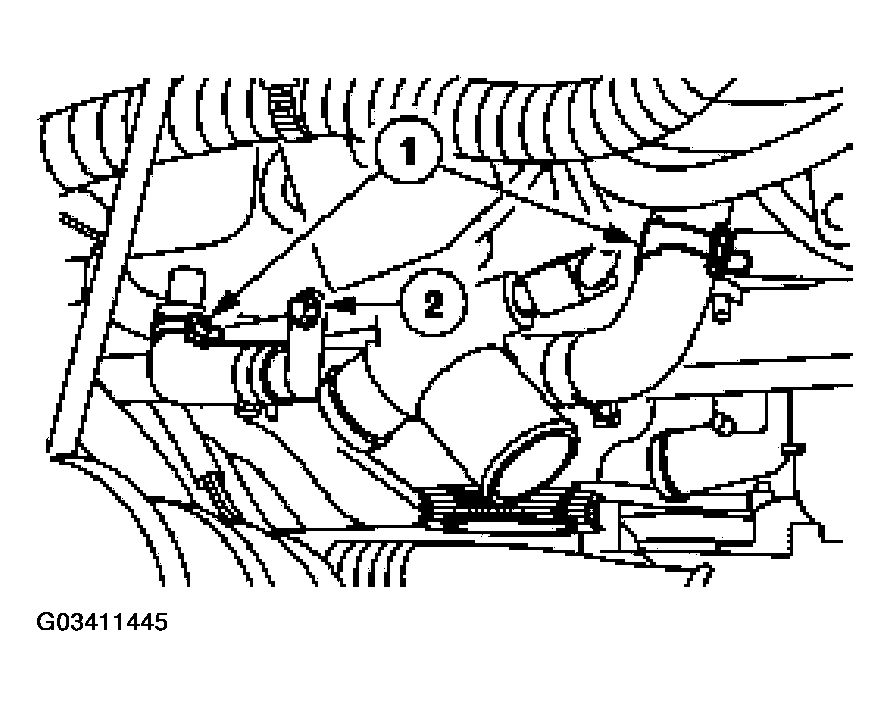

      Fig 10: Installing PCV Breather Hoses And Tube
      G03411445Courtesy of FORD MOTOR CO.
  14. Install the wire harness bracket.
    1. Position the wire harness bracket.
    2. Install the bolt.
    3. Clip the spark plug wire to the bracket.

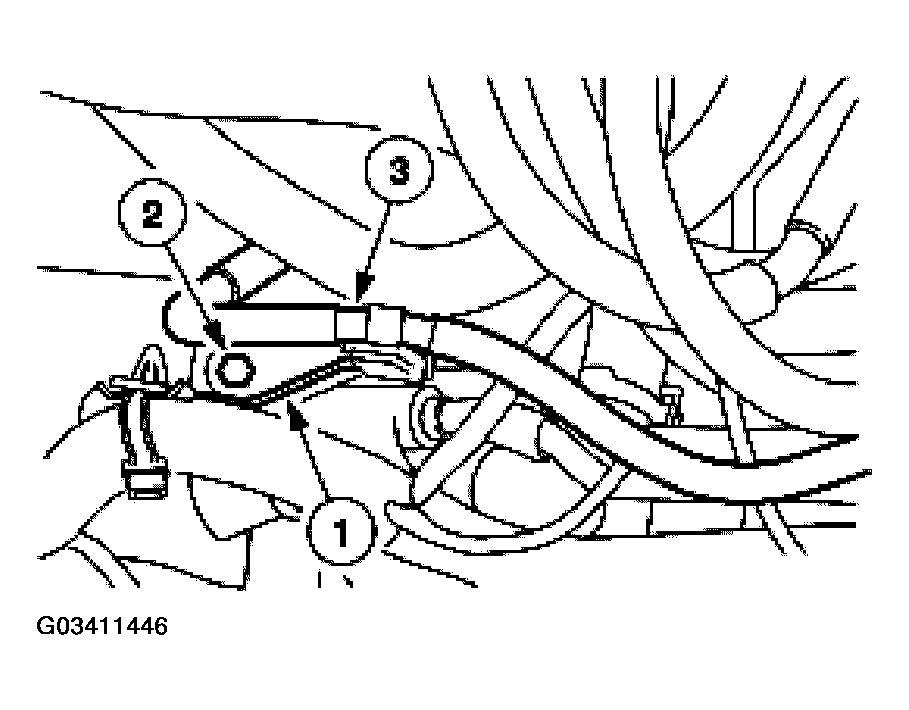

      Fig 11: Installing Wire Harness Bracket
      G03411446Courtesy of FORD MOTOR CO.
  15. Attach the wire harness to the bracket.
    Fig 12: Attaching Wire Harness To Bracket

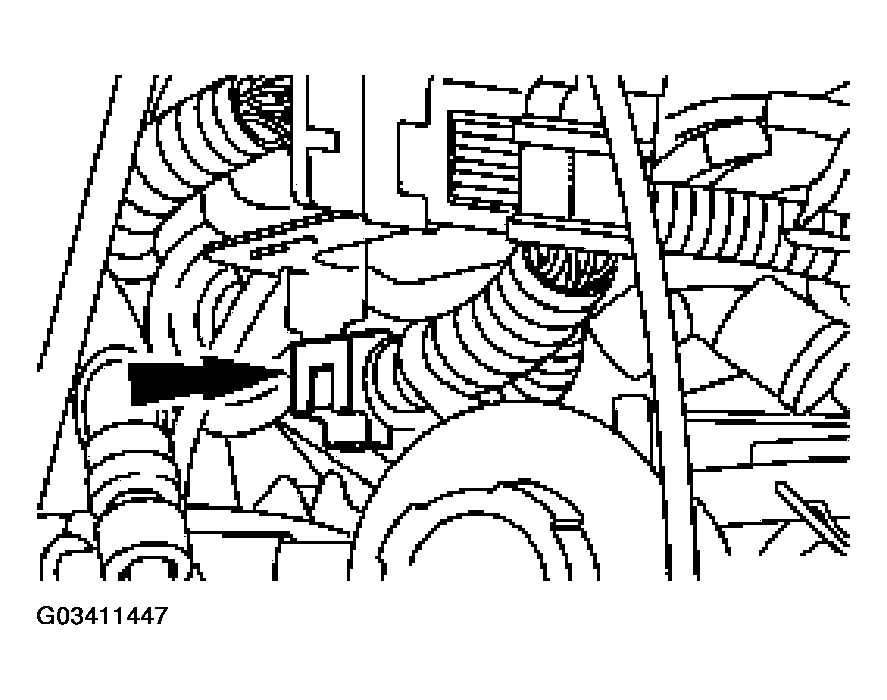

    G03411447Courtesy of FORD MOTOR CO.
  16. Attach the main wire harness to the bracket.

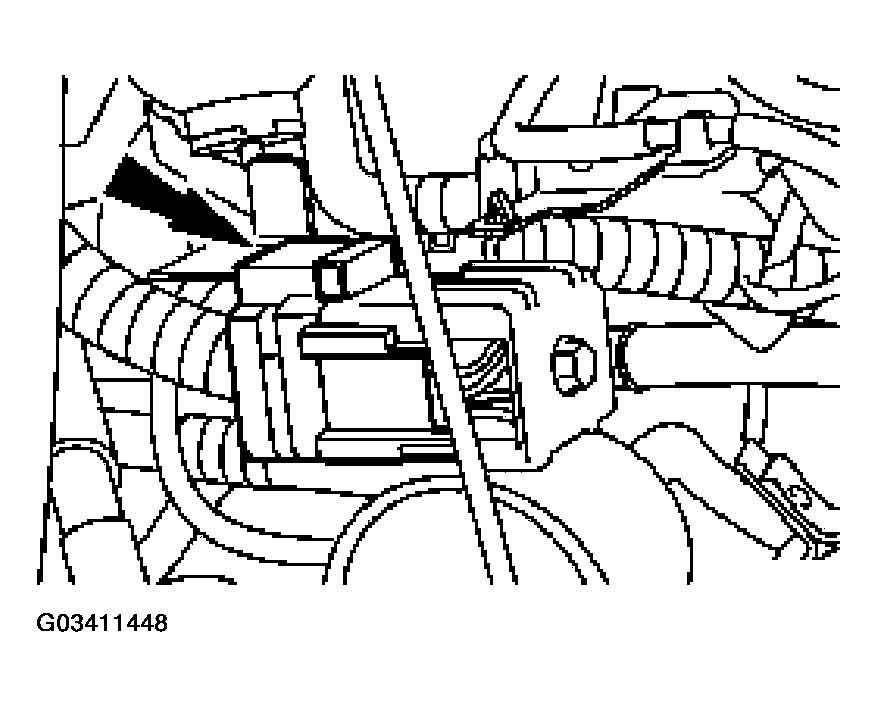

    Fig 13: Attaching Main Wire Harness To Bracket
    G03411448Courtesy of FORD MOTOR CO.

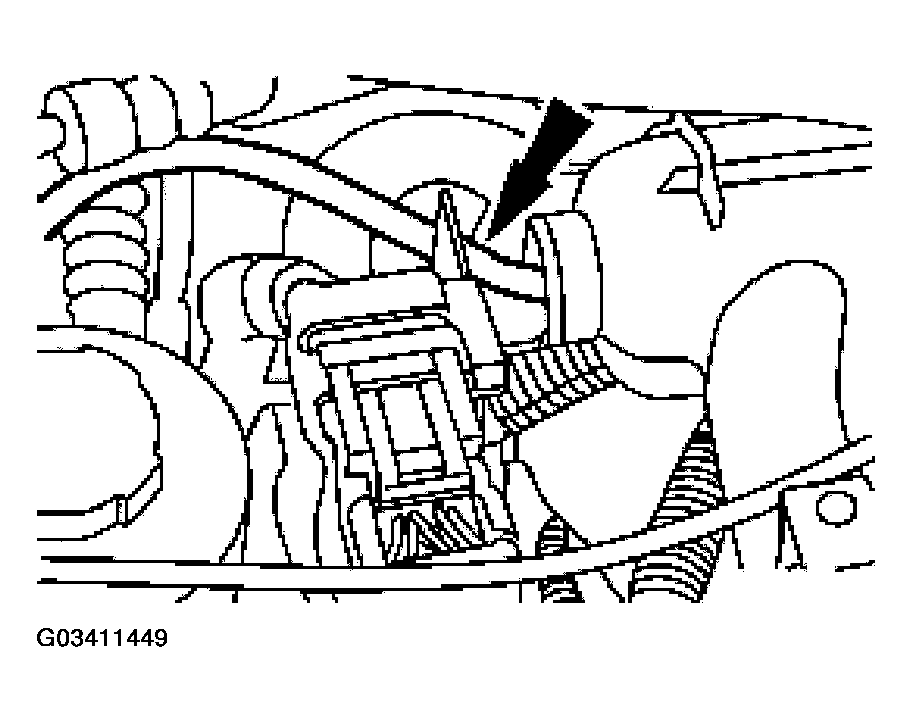

  17. Connect the vacuum reservoir vacuum hose.
    Fig 14: Connecting Vacuum Reservoir Vacuum Hose
    G03411449Courtesy of FORD MOTOR CO.
  18. Position the wire harness back.
    1. Position the wire harness back.
    2. Attach the wire harness to the bracket.

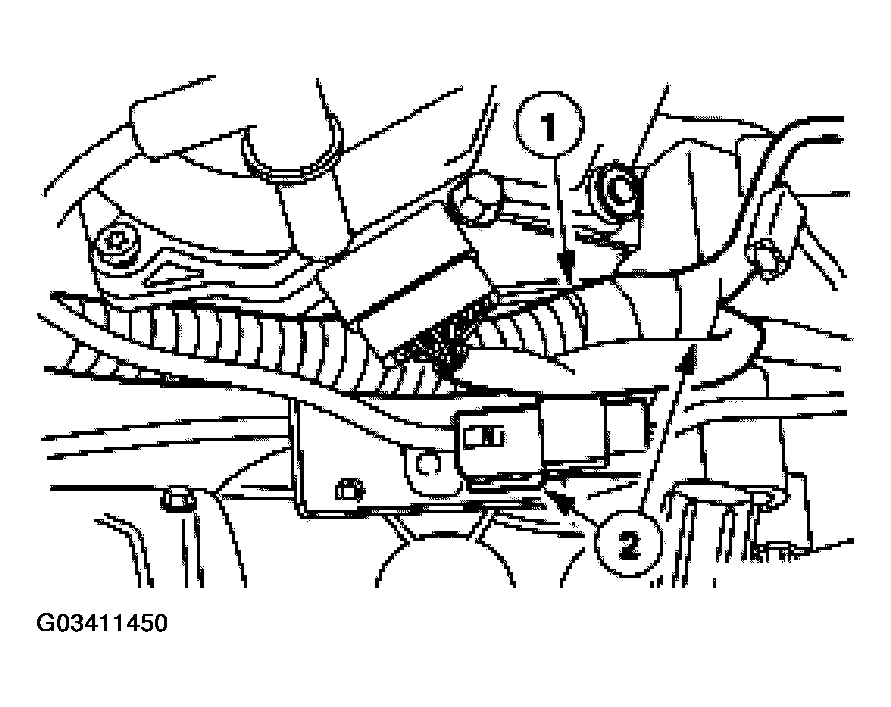

      Fig 15: Attaching Wire Harness To Bracket
      G03411450Courtesy of FORD MOTOR CO.
  19. Install the A/C compressor idler pulley and bracket.
    1. Position the A/C compressor idler pulley and bracket.
    2. Install the bolts.

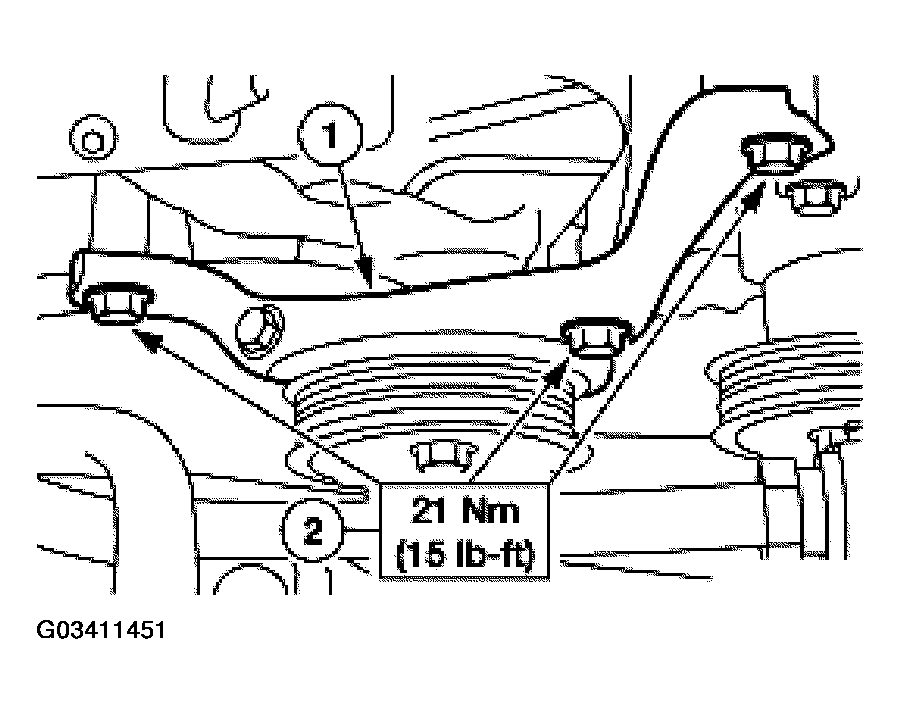

      Fig 16: Installing A/C Compressor Idler Pulley And Bracket
      G03411451Courtesy of FORD MOTOR CO.
  20. Install the coolant bypass hose.
    1. Connect the coolant bypass hose.
    2. Position the clamps.

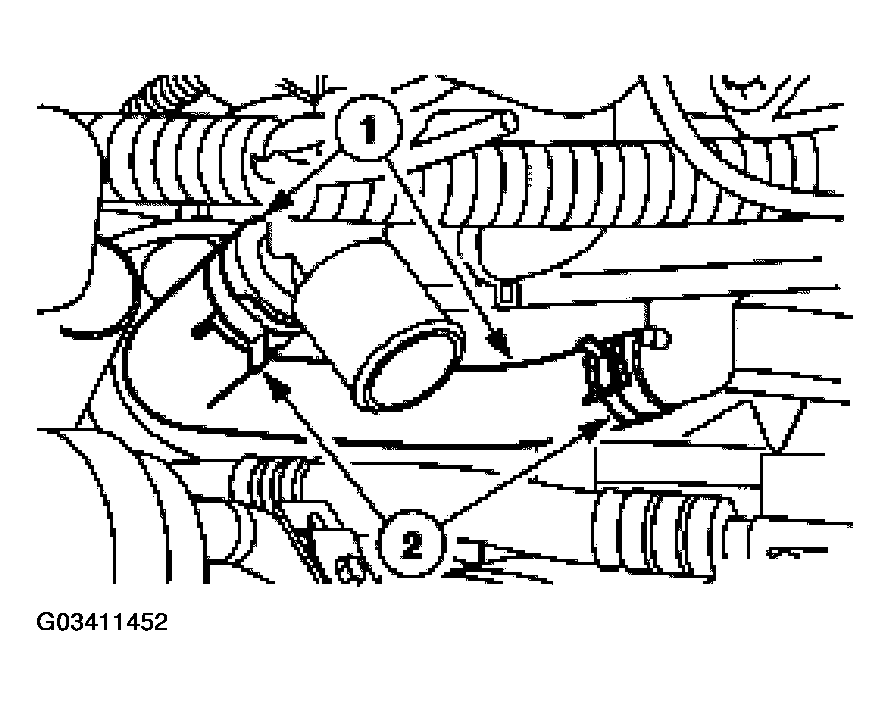

      Fig 17: Installing Coolant Bypass Hose
      G03411452Courtesy of FORD MOTOR CO.
  21. Install the upper hose.
    1. Connect the upper radiator hose.
    2. Position the clamps.
    3. Install the bolt.

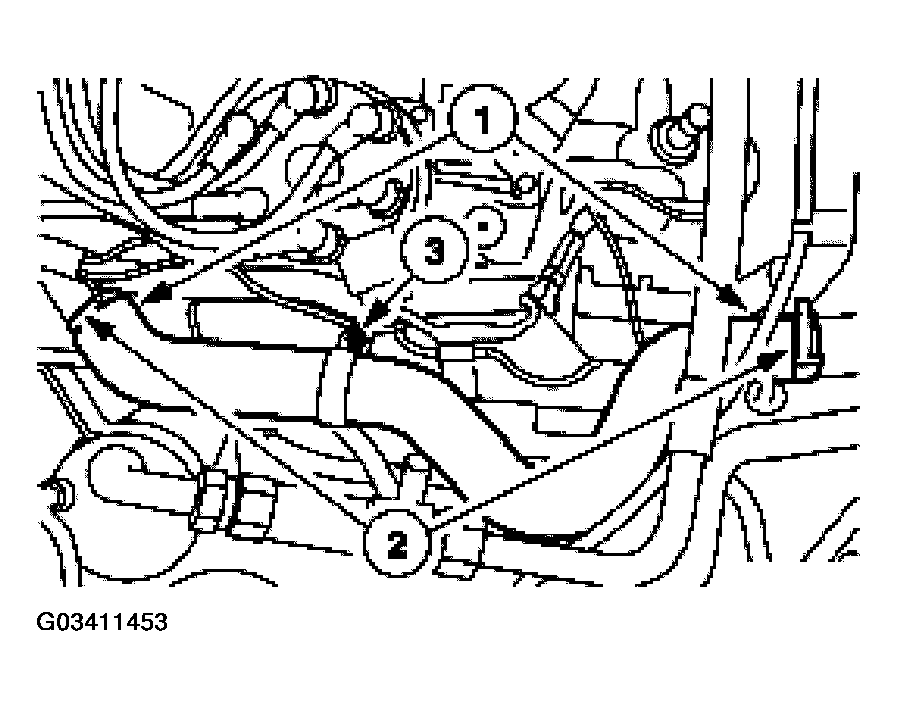

      Fig 18: Installing Upper Hose
      G03411453Courtesy of FORD MOTOR CO.
  22. Raise the vehicle.
  23. Install the six lower timing belt cover bolts.

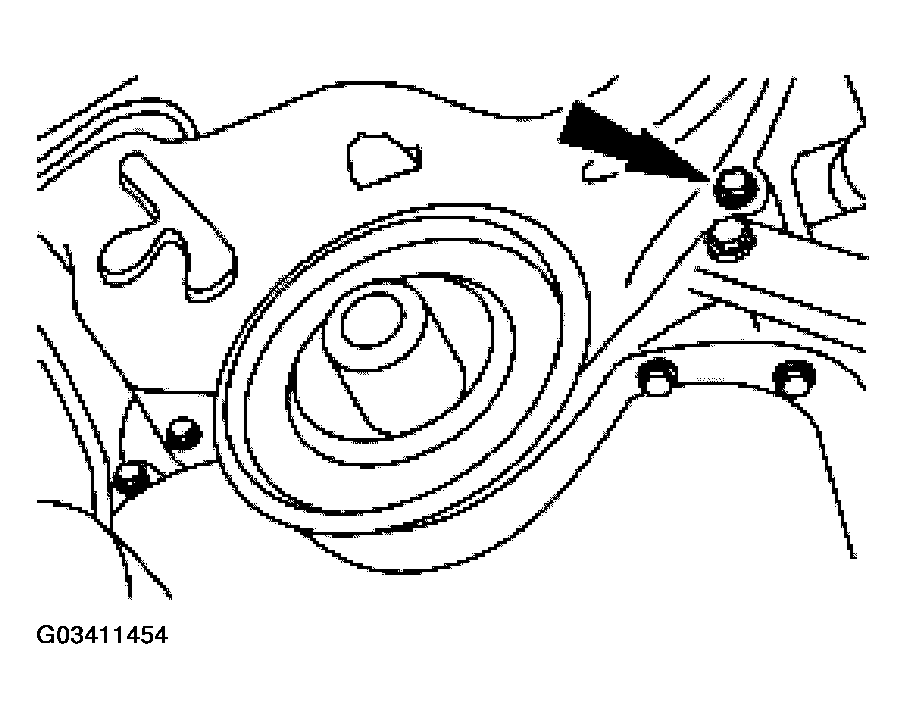

    Fig 19: Installing Six Lower Timing Belt Cover Bolts
    G03411454Courtesy of FORD MOTOR CO.
  24. Install the water pump pulley.
    1. Position the water pump pulley.
    2. Install the bolts.

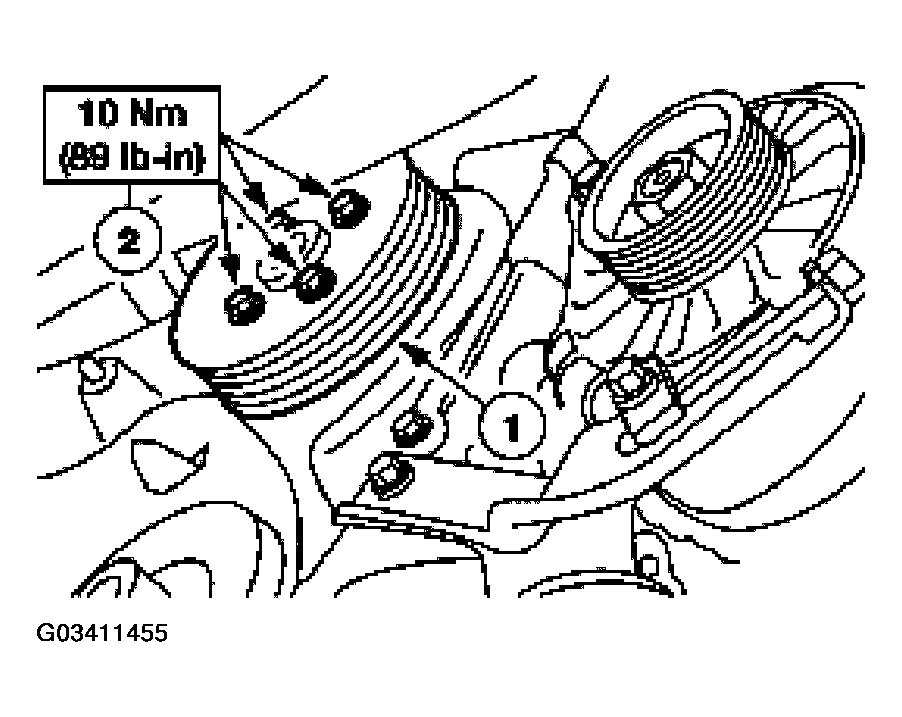

      Fig 20: Installing Water Pump Pulley
      G03411455Courtesy of FORD MOTOR CO.
  25. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  26. Fill the engine cooling system. For additional information, refer to ENGINE COOLING .
