61 13 ... Round Connector, 7-, 8-Pin, System D2.5

61 13 ... Circular Connector, 7-Pin, 8-Pin, System D2.5

Special tools required:







Carefully pull off rubber grommet (1).

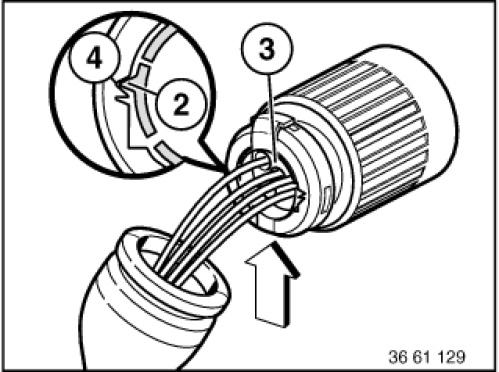

Carefully press back retaining lugs (2) of internal connector (3).







Slide internal connector (3) in direction of arrow until retaining lugs (2) lock into locking groove (4).

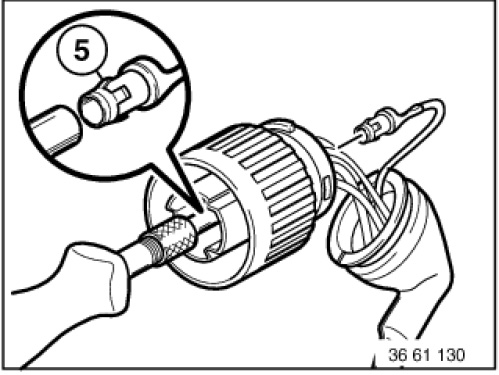

Use special tool 61 0 303 (61 1 132) to press back retaining hook (5) of corresponding contact and pull out cable with contact
