Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

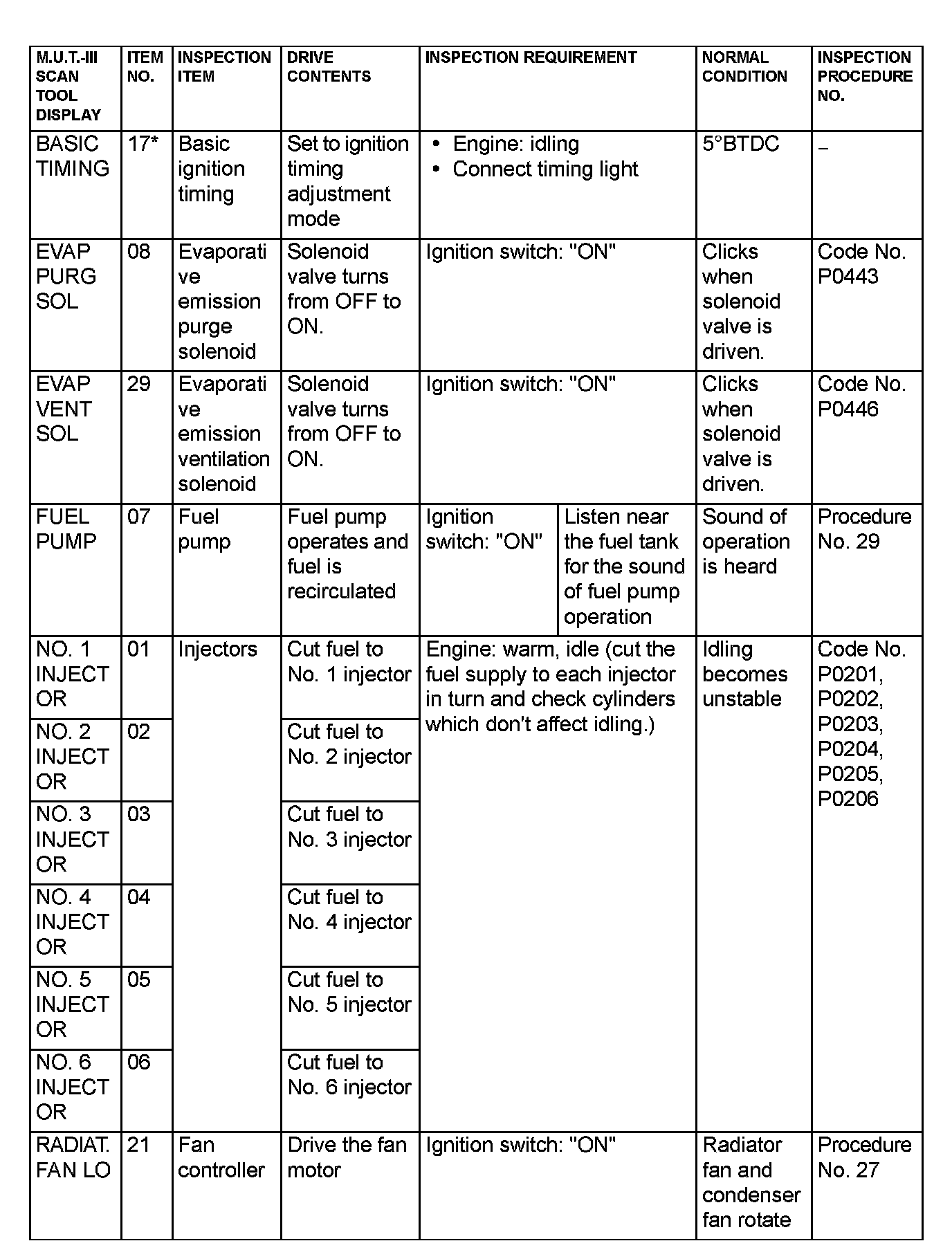

Actuator Test Reference Table Part 1:




Actuator Test Reference Table Part 2:






NOTE: *: Continues for 27 minutes. Can be released by pressing the CLEAR key.
