Vehicle Set Up

Accurate adjustment of the radar alignment requires that the target board, wheel adapter, laser assembly, and rear stand be properly positioned.

1. PREPOSITION TARGET BOARD
   NOTE:

   • To identify the sensor wave axis center, measure the point (1) as shown in the illustration.

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

     1. 0 mm (0 in)
     2. 813.6 mm (32.03 in)
     3. Vehicle center
   • Target board setting must be in the center position. (Position 2)
   • Attaching the distance sensor alignment kit attachment board to the target board.
   1. Position the target board in front facing the right front side of the vehicle:

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

      1. Place the marked center of the target board (1) 813.6 mm (32.03 in) ± 50 mm (1.97 in) facing the distance sensor.
      2. Adjust the height of the target board using the adjustable nut (2) to achieve the proper height. The up/down tolerance is ± 30 mm (1.18 in).
      3. Adjust the target board lateral position aligning the marked center of the board horizontally with the center of the distance sensor. The right/left tolerance is ± 80 mm (3.15 in).

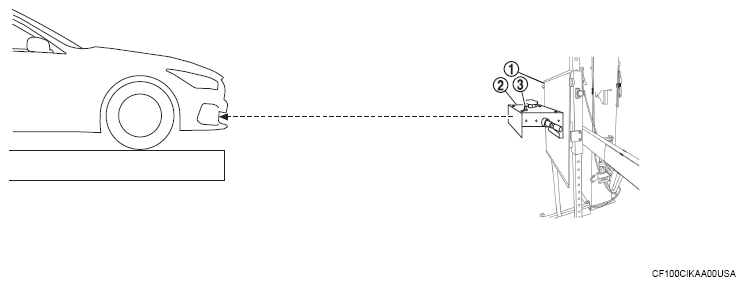

   2. Extend the machined arm of the target board exposing the reflective surface (3) to the right front side of the vehicle.
   3. Place one side of the laser assembly (3) flush against the center of the target board (1) to assist in the positioning.

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   4. Turn the laser assembly ON (3) allowing the laser beam to emit through the opening of the laser assembly toward the center of the distance sensor.
   5. Move the target board (1) as necessary so that center of target board aligns with center of distance sensor.
   6. Turn the laser assembly OFF when done.

   Are using Hunter alignment equipment?

   YES >>

   Refer to Hunter's equipment instructions for complete vehicle set up and target board setting. Then, refer to

   Distance Sensor Adjustment  .

   NO >>

   GO TO  2.

2. INSTALLING LASER ASSEMBLY
   NOTE:

   • Insure the steering wheel is positioned in the center straight forward position.
   • Insure all 4 vehicle wheels do not contain any physical damage.
   1. Install the wheel adapter (1) on the right front wheel.

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   2. Mount the laser assembly (2) to the wheel adapter (1) as shown in the figure.
   NOTE: When the power switch is turned ON, the front laser signal (A) will be emitted toward the front target board, and the rear laser signal (B) will be emitted toward the rear of the vehicle.

   >>

   GO TO  3.

3. SETTING UP REAR STAND
   1. Place the rear stand next to the right rear tire as shown in the figure.

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   2. Turn the laser assembly ON allowing the laser beam to be emitted through the front and rear laser assembly openings.
   3. Measure and record the distance (D_r ) between the edge of the right rear wheel and the laser beam (1) on the rear stand (horizontal line).
   4. Measure and record the height (H_f ) between the laser beam (1) on the rear stand and ground level (vertical line).
   5. Measure and record the distance (D_f ) between the edge of the right front wheel and the laser beam signal/opening (1) on the laser assembly (horizontal line).

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   6. Measure and record the height (Hf) between the laser beam signal/opening (1) on the laser assembly and ground level (vertical line).
      NOTE:

      • Horizontal adjustment [front distance (D_f ) and rear distance (D_r )] is accomplished by slowly turning the steering wheel until the 2 distances are the same.
      • Vertical adjustment [front height (H_f ) and rear height (H_r )] is accomplished by rotating the laser assembly around its axis until the two heights are the same.
      • Directional arrows (1) and (2) are shown to illustrate the direction of the laser assembly beams.
   7. Adjust laser beam as necessary until the two distances match and the two heights match.
      NOTE: *Must be verify both horizontal and vertical adjustments anytime one adjustment is made.

      >>

      Refer to

      Setting The Target Board  .
