On-Vehicle Service: Calibration: Notes

WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.

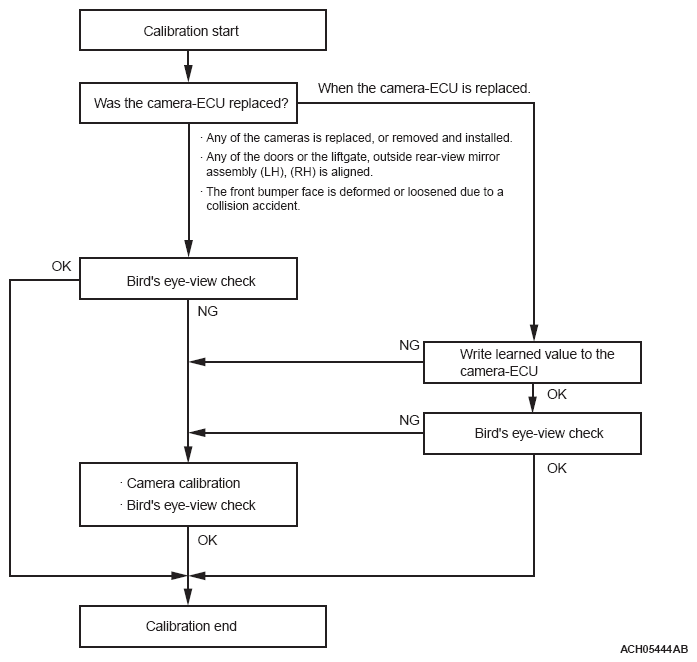

Calibrate according to the procedure below after the following operation is performed:

Replacement of the camera-ECU
Removal and installation/replacement of a camera
Any of the door or the liftgate, Door mirror assembly (LH), (RH) is aligned.
The front bumper face is deformed or loosened due to a collision accident.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
