Mixture Ratio Control Solenoid Valve

This valve, controlled by an electrical signal, changes the air flow passage size and controls air flow to the main air bleed to change the air/fuel ratio.

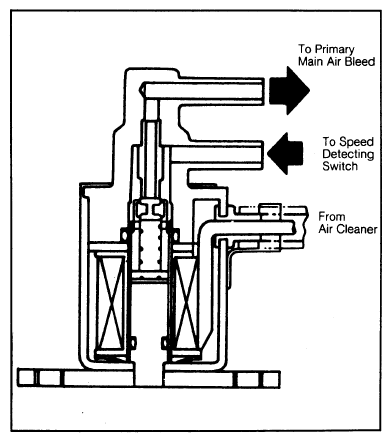

Fig 1: Datsun Mixture Ratio Control Solenoid Valve

Courtesy of NISSAN NORTH AMERICA, INC.

Note direction of flow.
