System Check

Fuel shut-off system is controlled by the electronic control unit. Refer to FEEDBACK CARB SYSTEM article in the COMPUTERIZED ENGINE CONTROLS section. Visually check fuel shut-off system. Replace any broken switches.

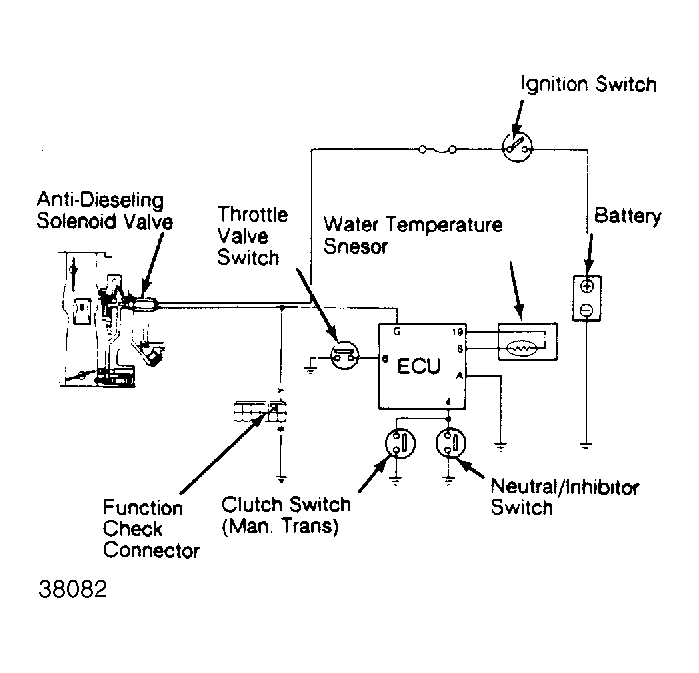

Fig 1: Fuel Shut-Off System (California Pulsar & Sentra)

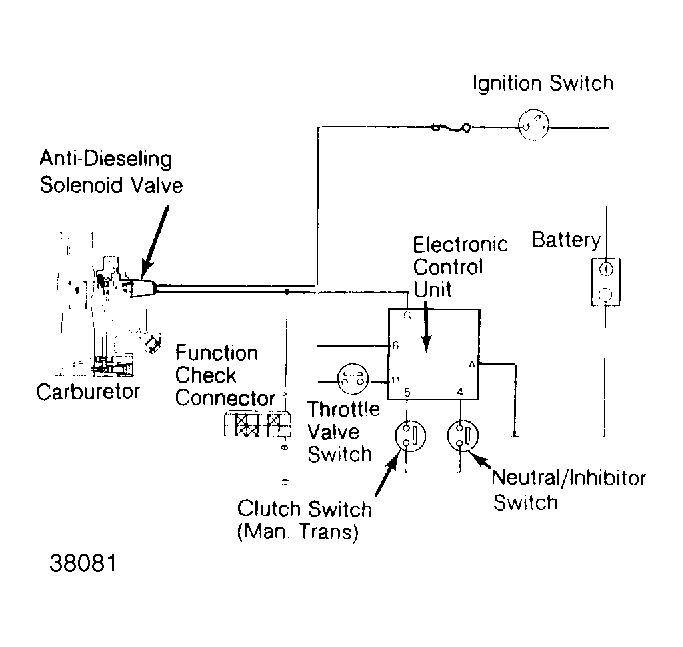

Fig 2: Fuel Shut-Off System (Federal Pulsar & Sentra)
