Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

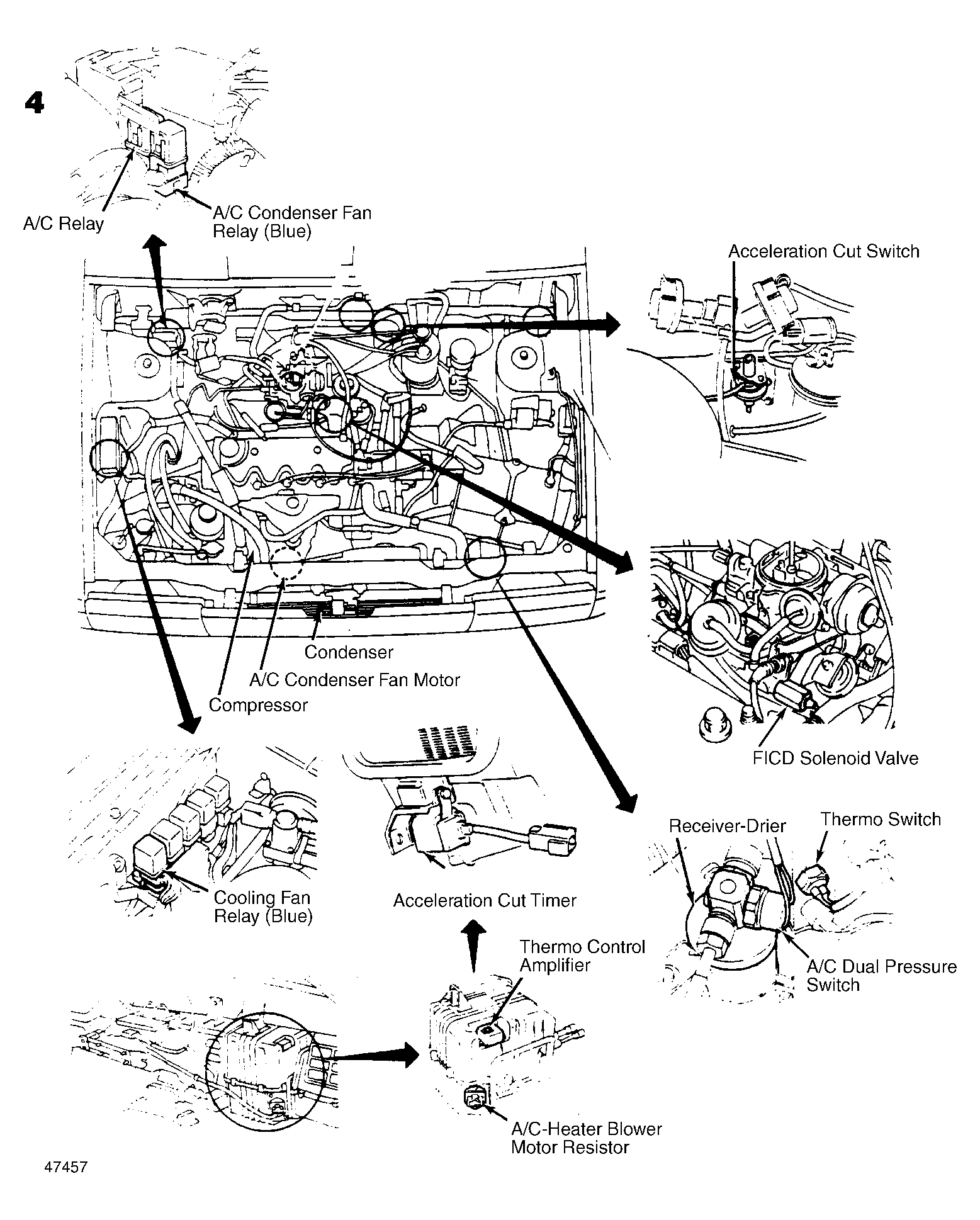

| A/C Dual Pressure Switch | On receiver-drier. See Figure . |
| Acceleration Cut Switch | On center of firewall. See Figure . |
| Auto. Trans. Inhibitor Switch | On side of transaxle, linked to control cable. |
| Back-Up Light Switch (Man. Trans.) | On left side of transaxle. |
| Brake/Stoplight Switch | Above brake pedal. See Figure . |
| Clutch Switch | Above clutch pedal. |
| Neutral Switch (Man. Trans.) | On right side of transaxle. |
| Parking Brake Switch | Under parking brake handle. |
| Thermo Switch | On left side of radiator. See Figure . |
