Ecu Input/Output Signal Inspection Tables

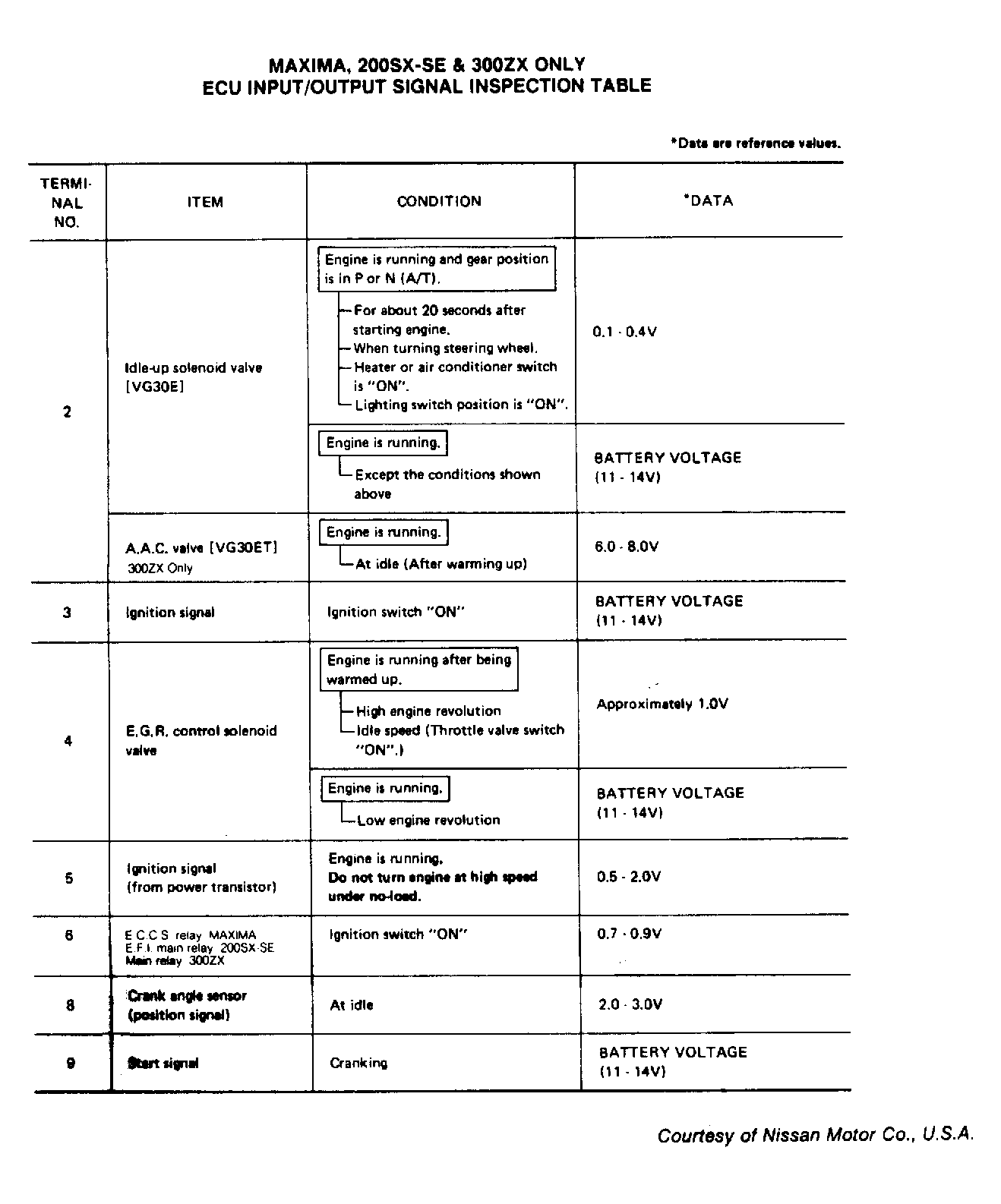

Fig 1: Maxima, 200SX-SE & 300ZX (1 of 4)

G61782

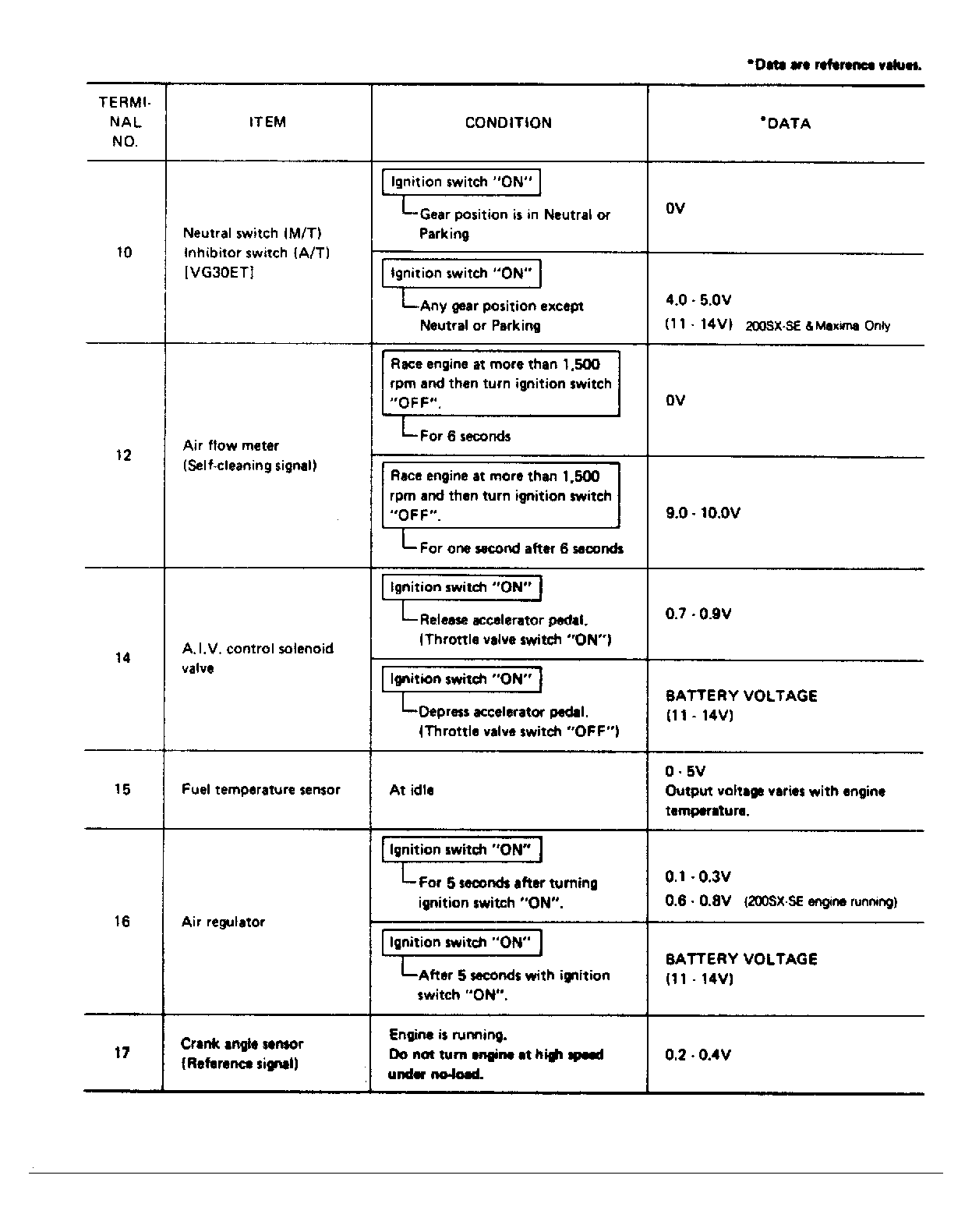

Fig 2: Maxima, 200SX-SE & 300ZX (2 of 4)

G61783

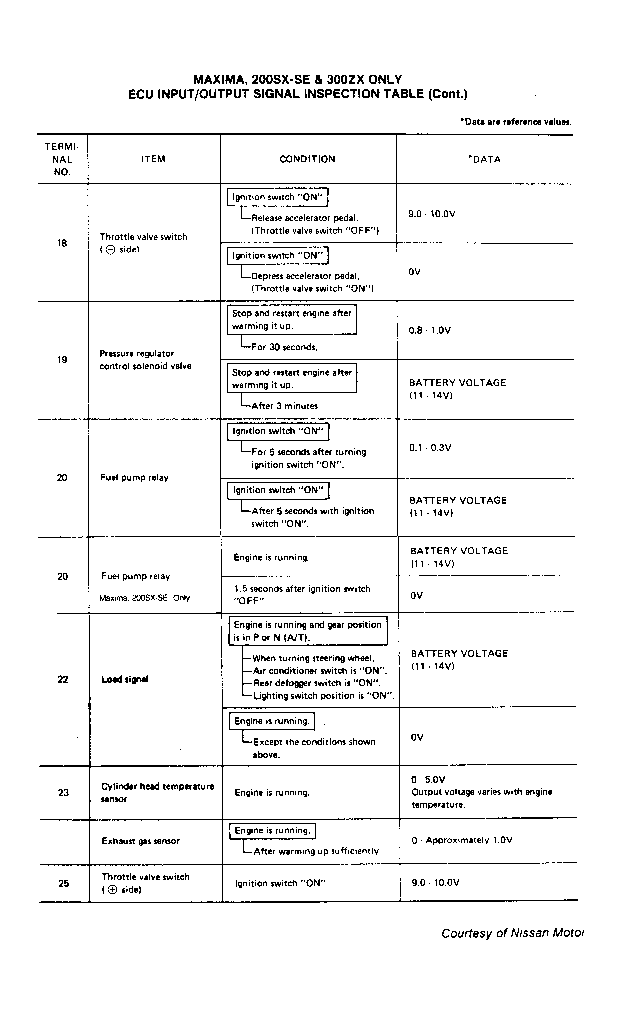

Fig 3: Maxima, 200SX-SE & 300ZX (3 of 4)

G61784

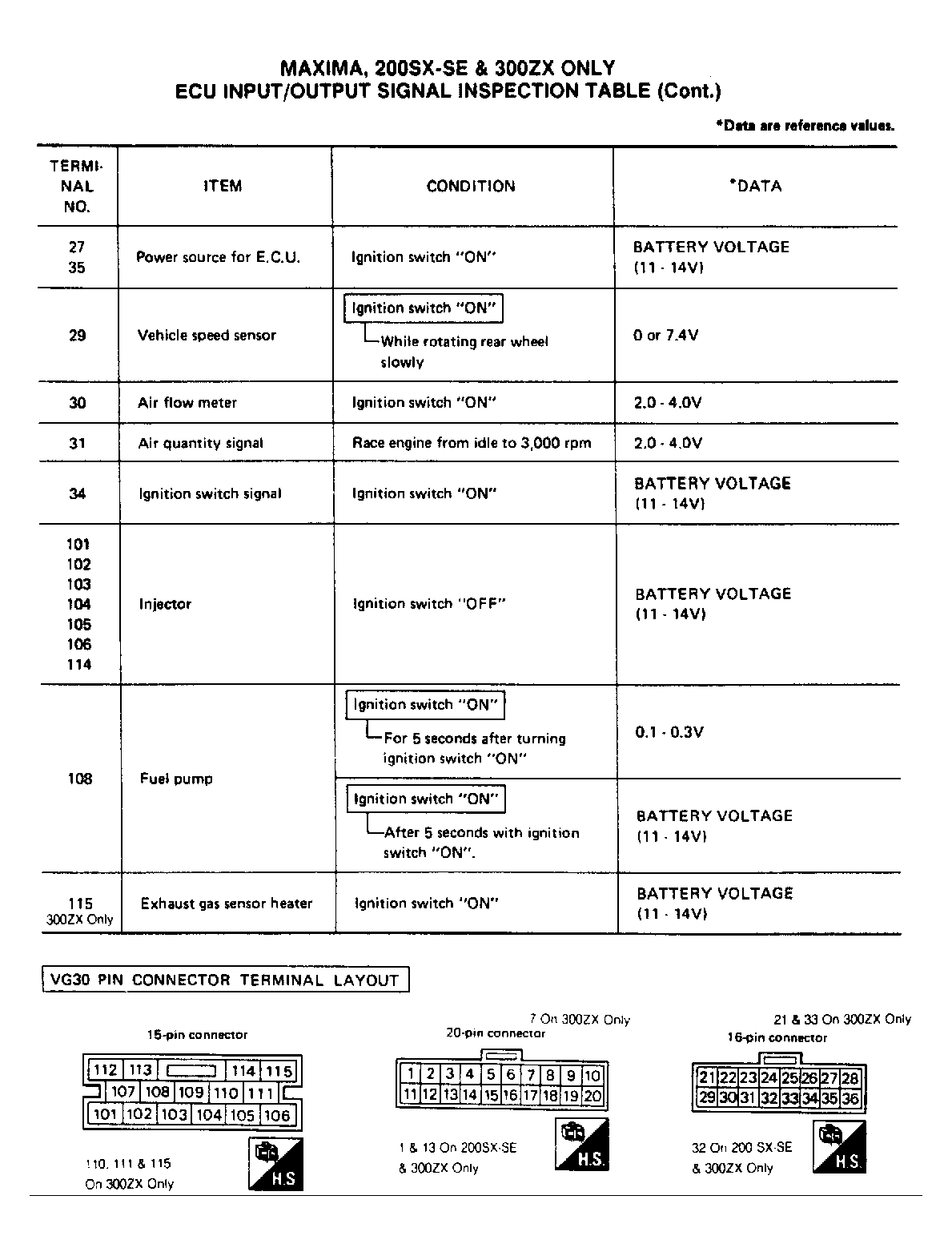

Fig 4: Maxima, 200SX-SE & 300ZX (4 of 4)

G61785

Fig 5: Pulsar NX & Sentra (E16i) (1 of 3)

G61794

Fig 6: Pulsar NX & Sentra (E16i) (2 of 3)

G61795

Fig 7: Pulsar NX & Sentra (E16i) (3 of 3)

G61796

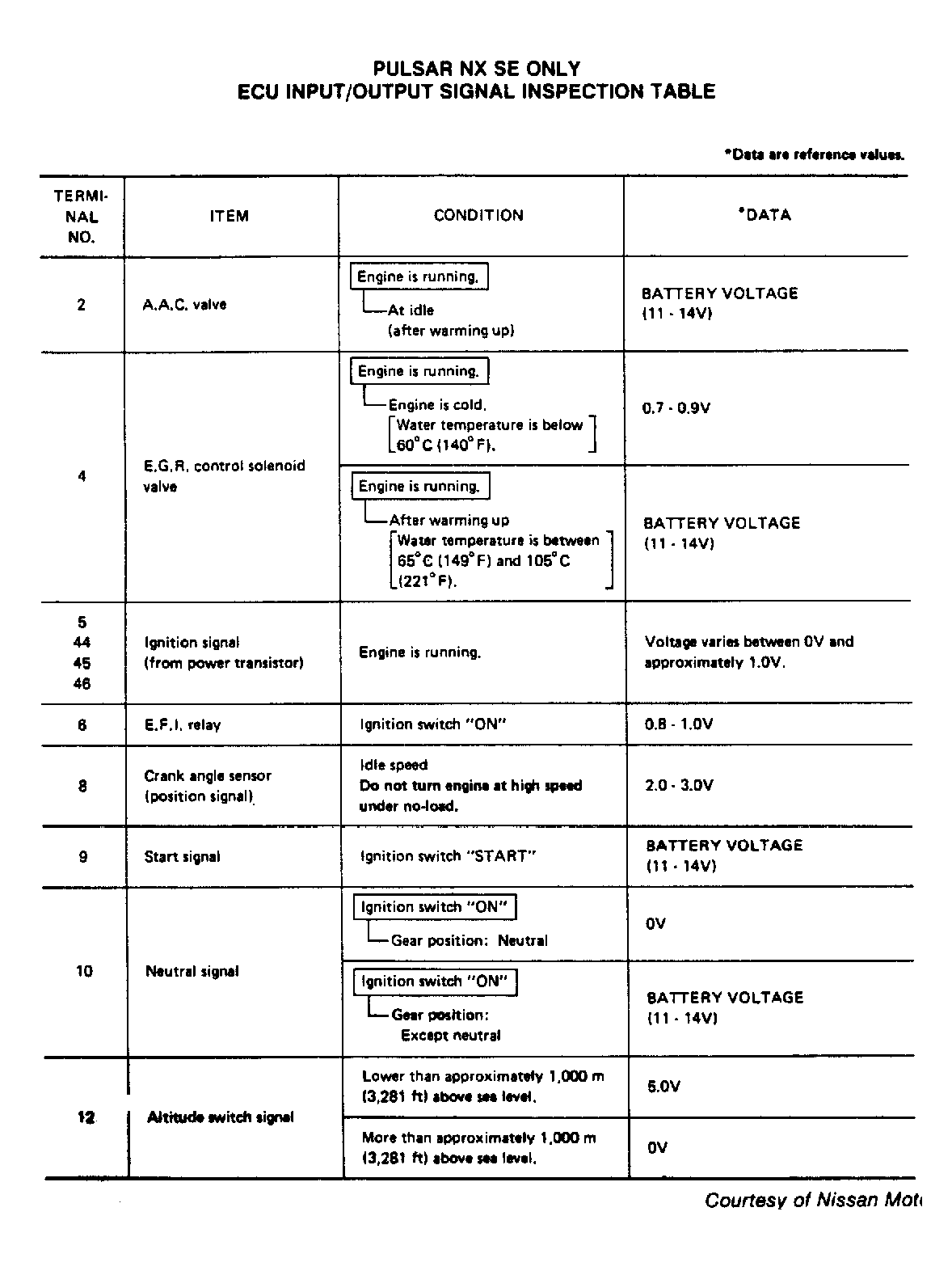

Fig 8: Pulsar NX SE (1 of 4)

G61797

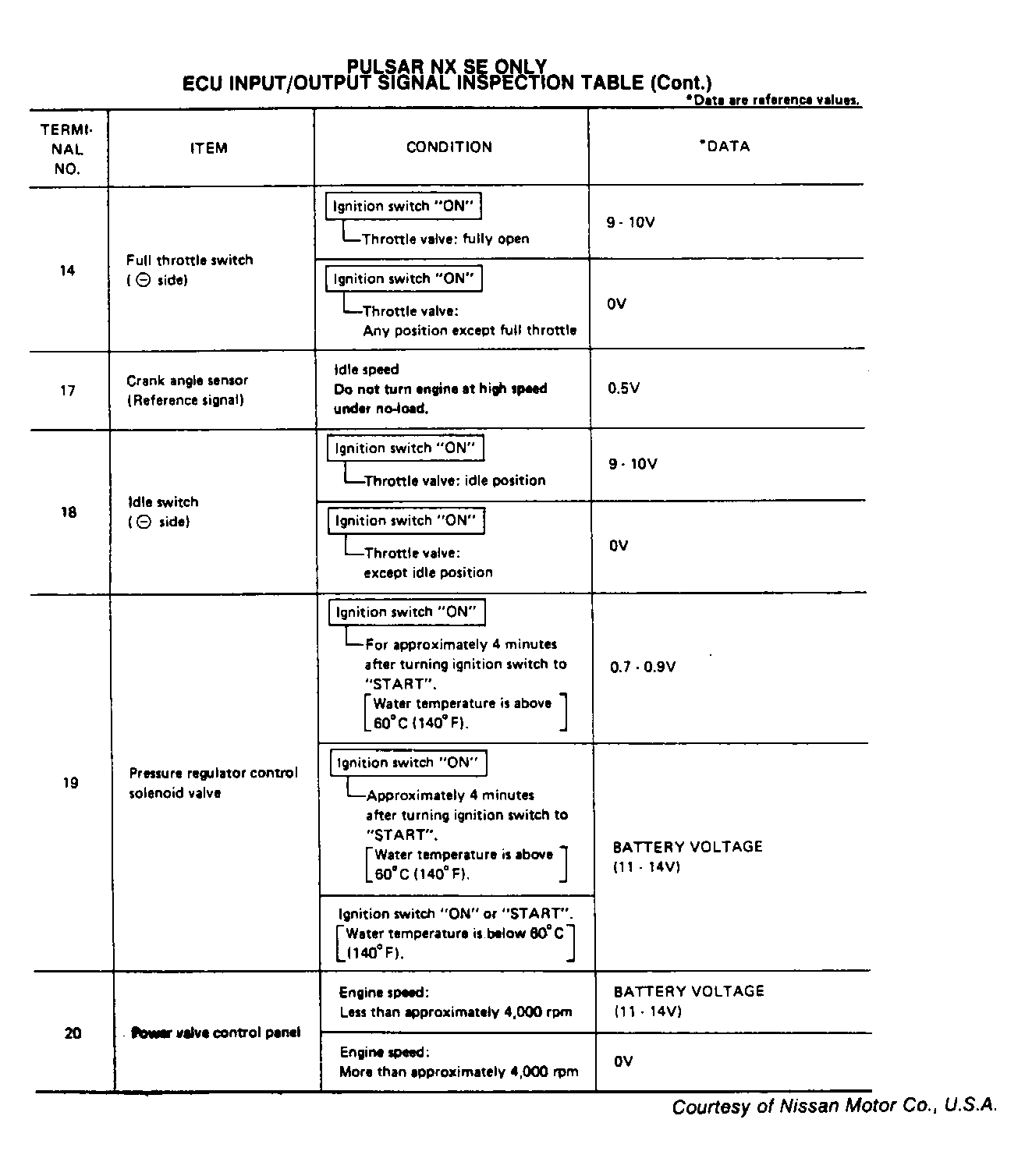

Fig 9: Pulsar NX SE (2 of 4)

G61798

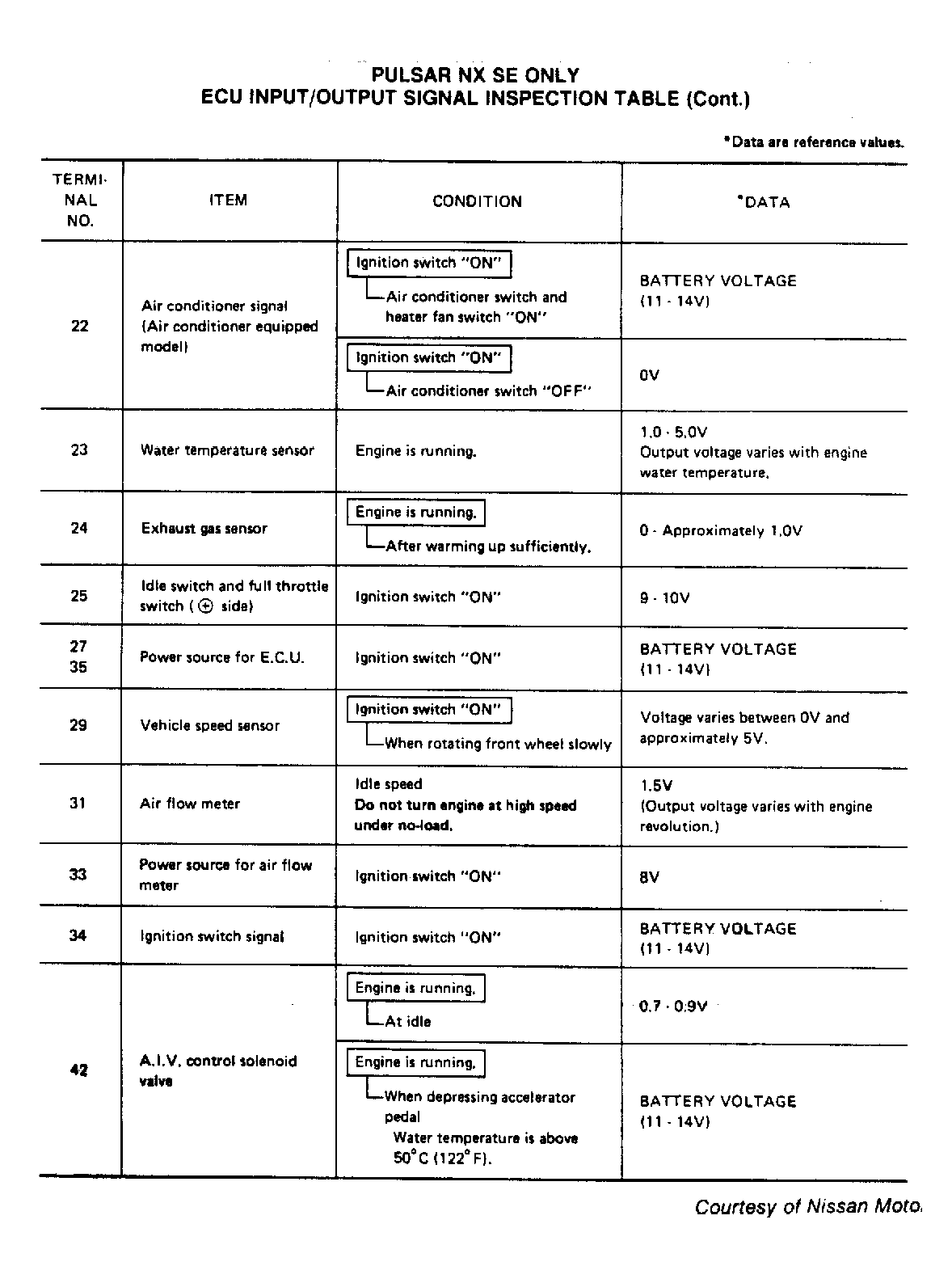

Fig 10: Pulsar NX SE (3 of 4)

G61799

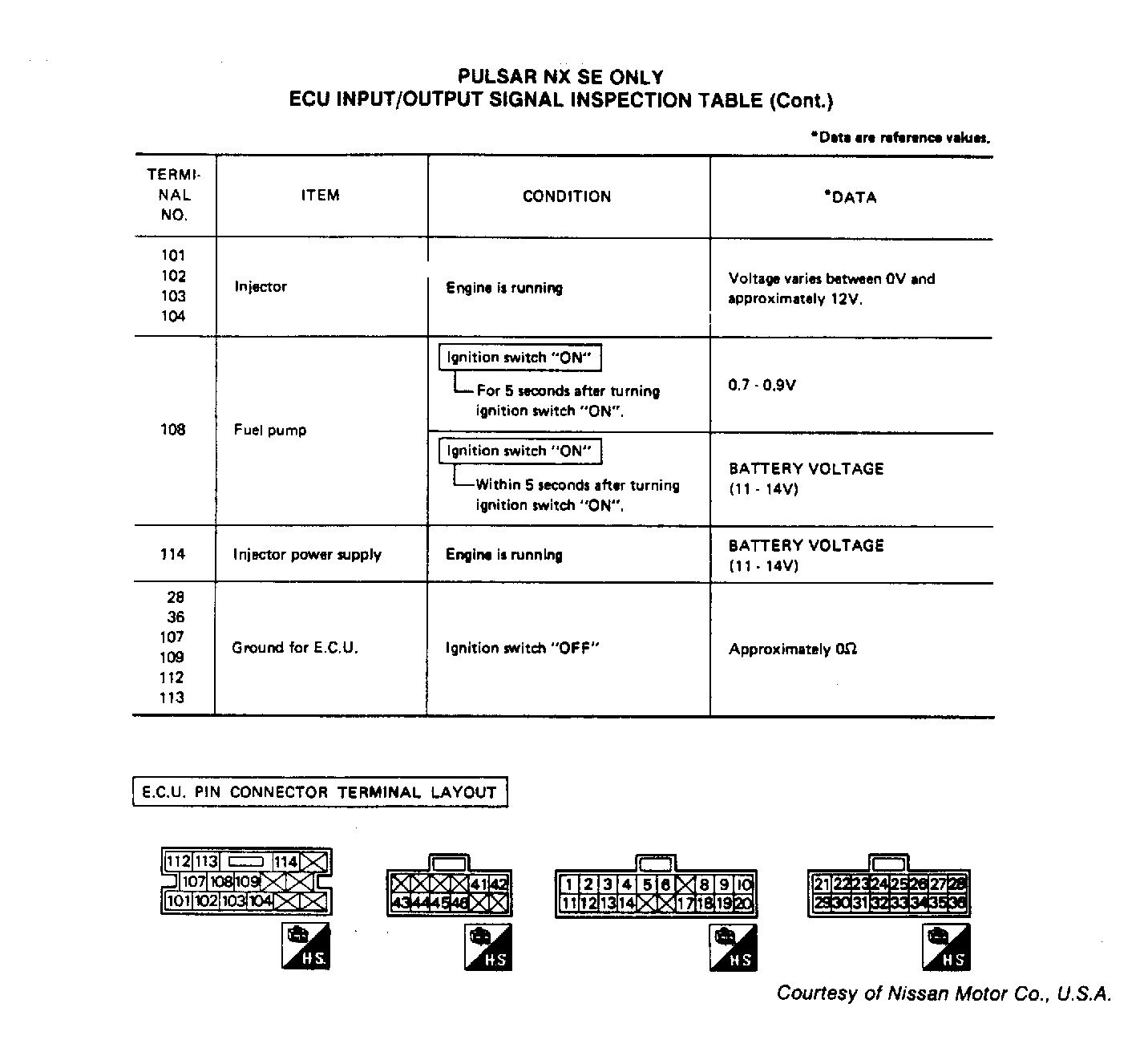

Fig 11: Pulsar NX SE (4 of 4)

G61800

Fig 12: Stanza, Stanza Wagon & 200SX XE (1 of 4)

G61801

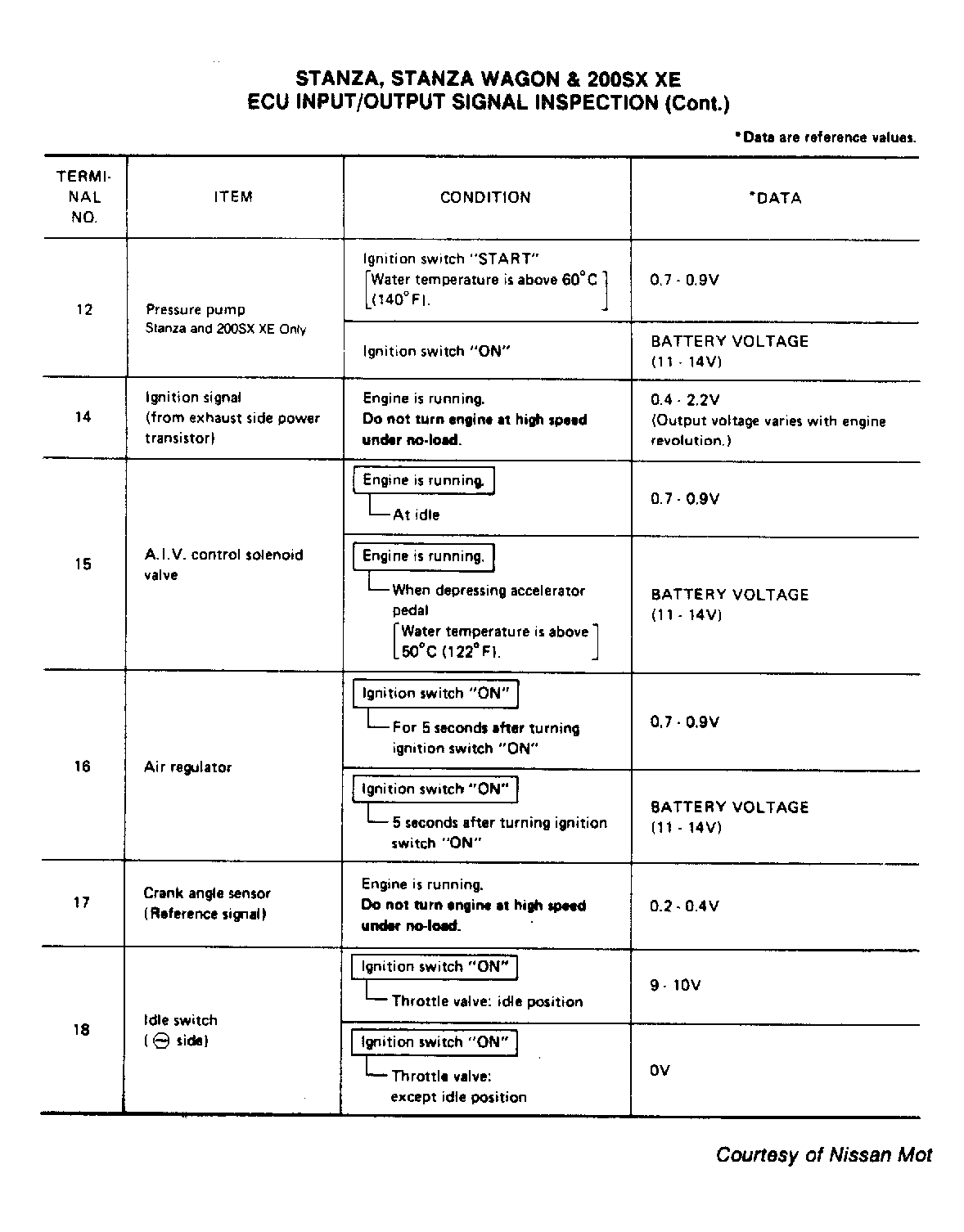

Fig 13: Stanza, Stanza Wagon & 200SX XE (2 of 4)

G61802

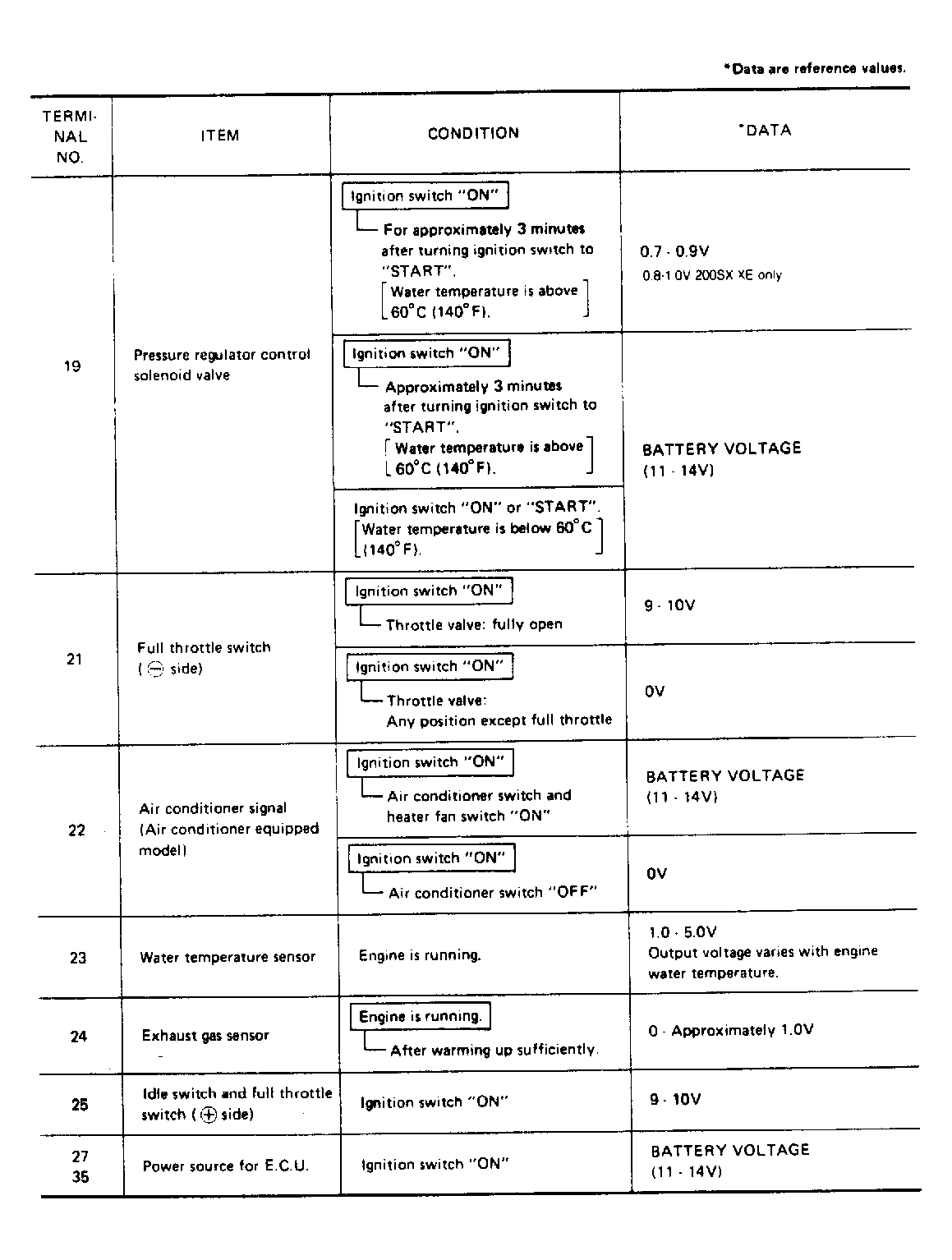

Fig 14: Stanza, Stanza Wagon & 200SX XE (3 of 4)

G61803

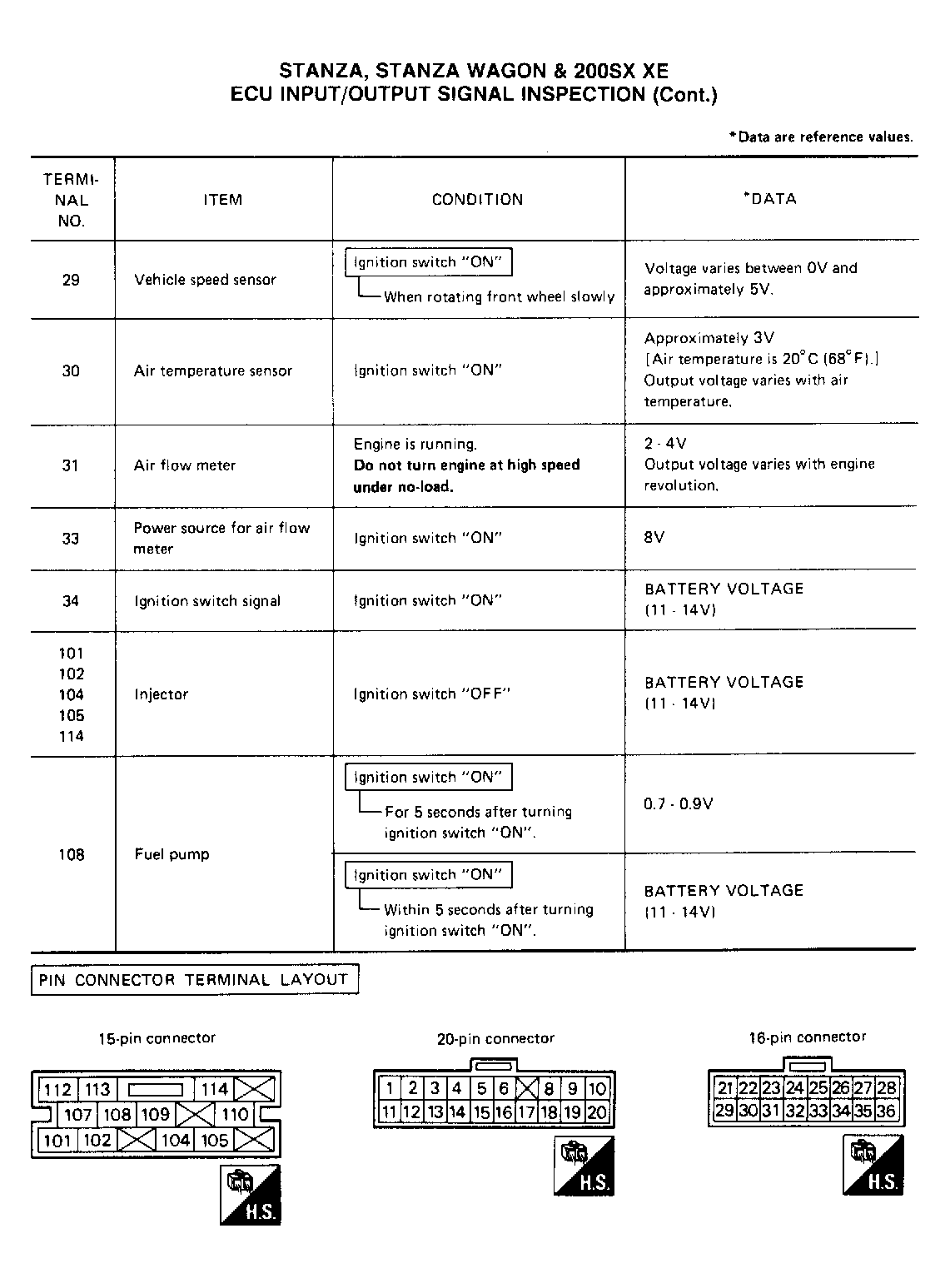

Fig 15: Stanza, Stanza Wagon & 200SX XE (4 of 4)

G61804
