Component Location

NOTE: Vehicles may not contain all ENGINE SENSORS that are listed, nor may they control all ENGINE CONTROLS that are listed. To determine which components are involved in each vehicle's control system, refer to the applicable system components illustration and/or applicable wiring diagram for the vehicle your working on. See Fig 1 - Fig 10 .

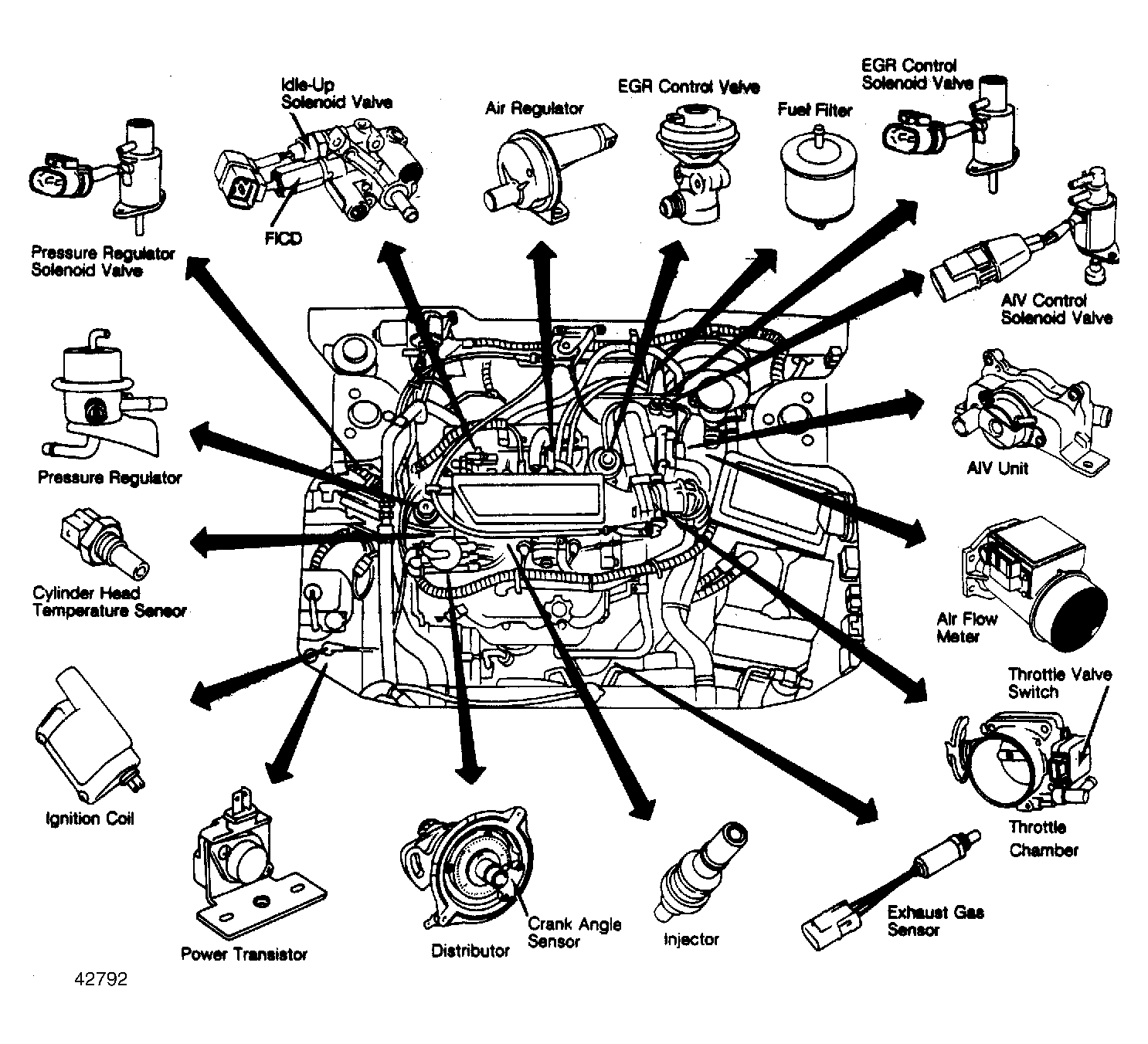

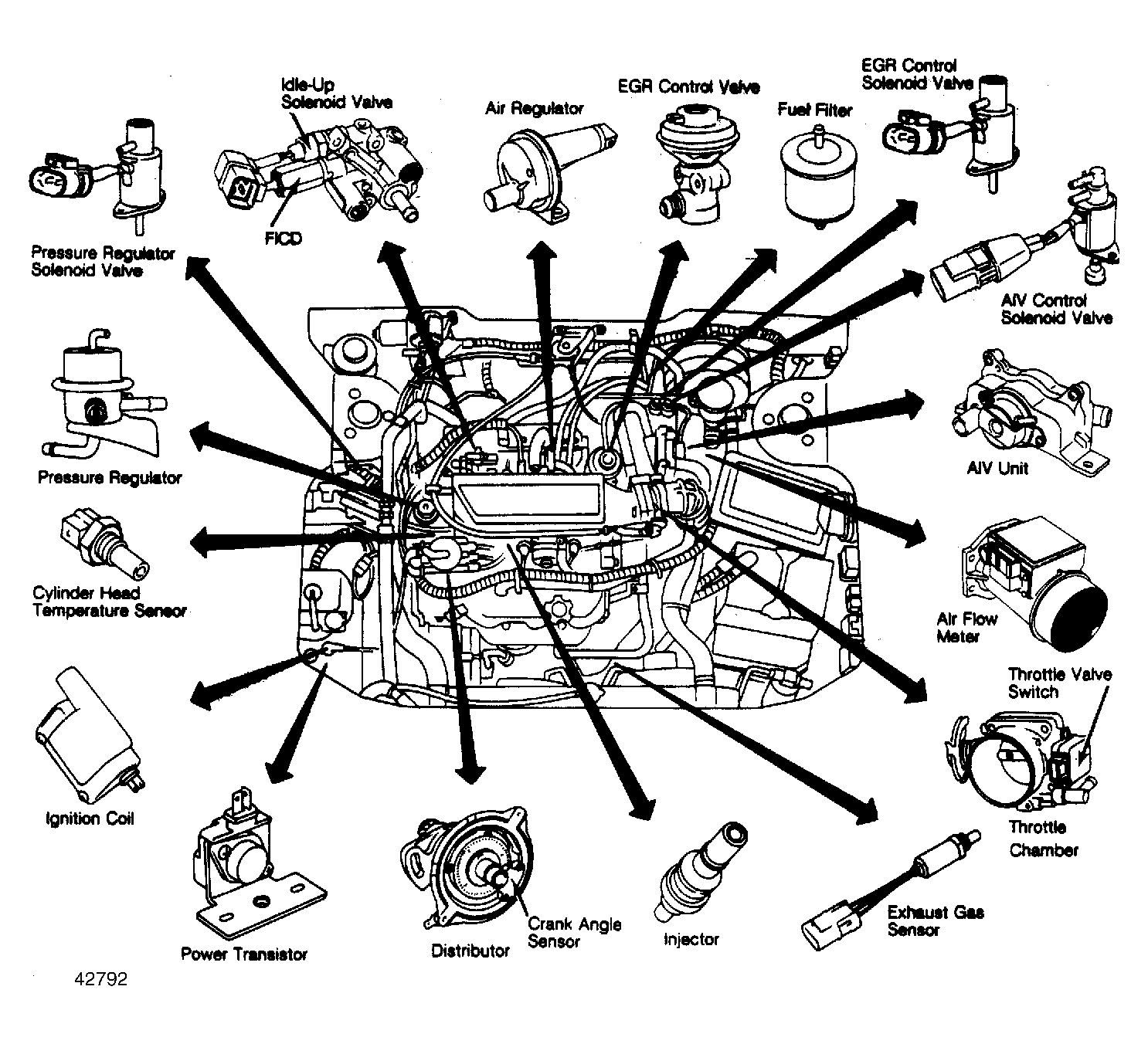

Fig 1: Maxima ECCS Component Locations

G42792

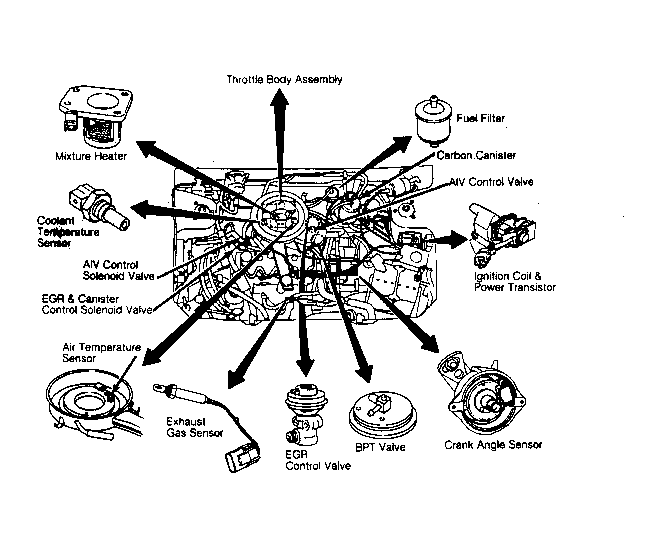

Fig 2: Pulsar NX ECCS Component Locations

G61624

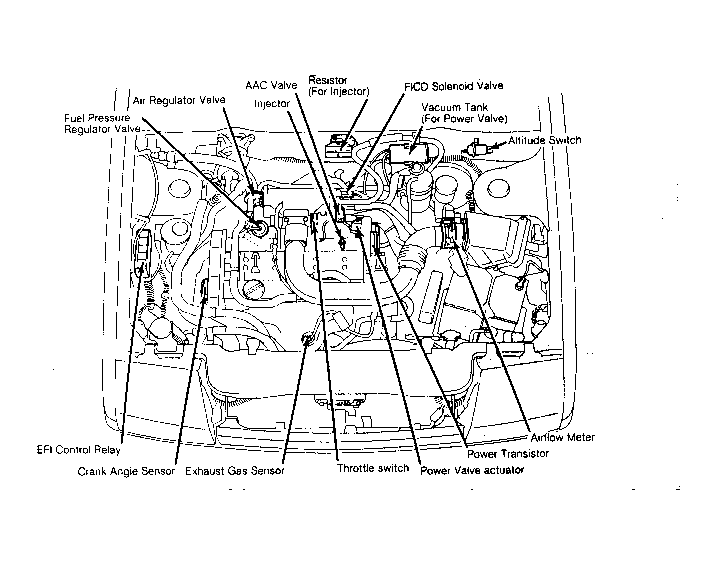

Fig 3: Pulsar NX SE ECCS Component Locations

G61627

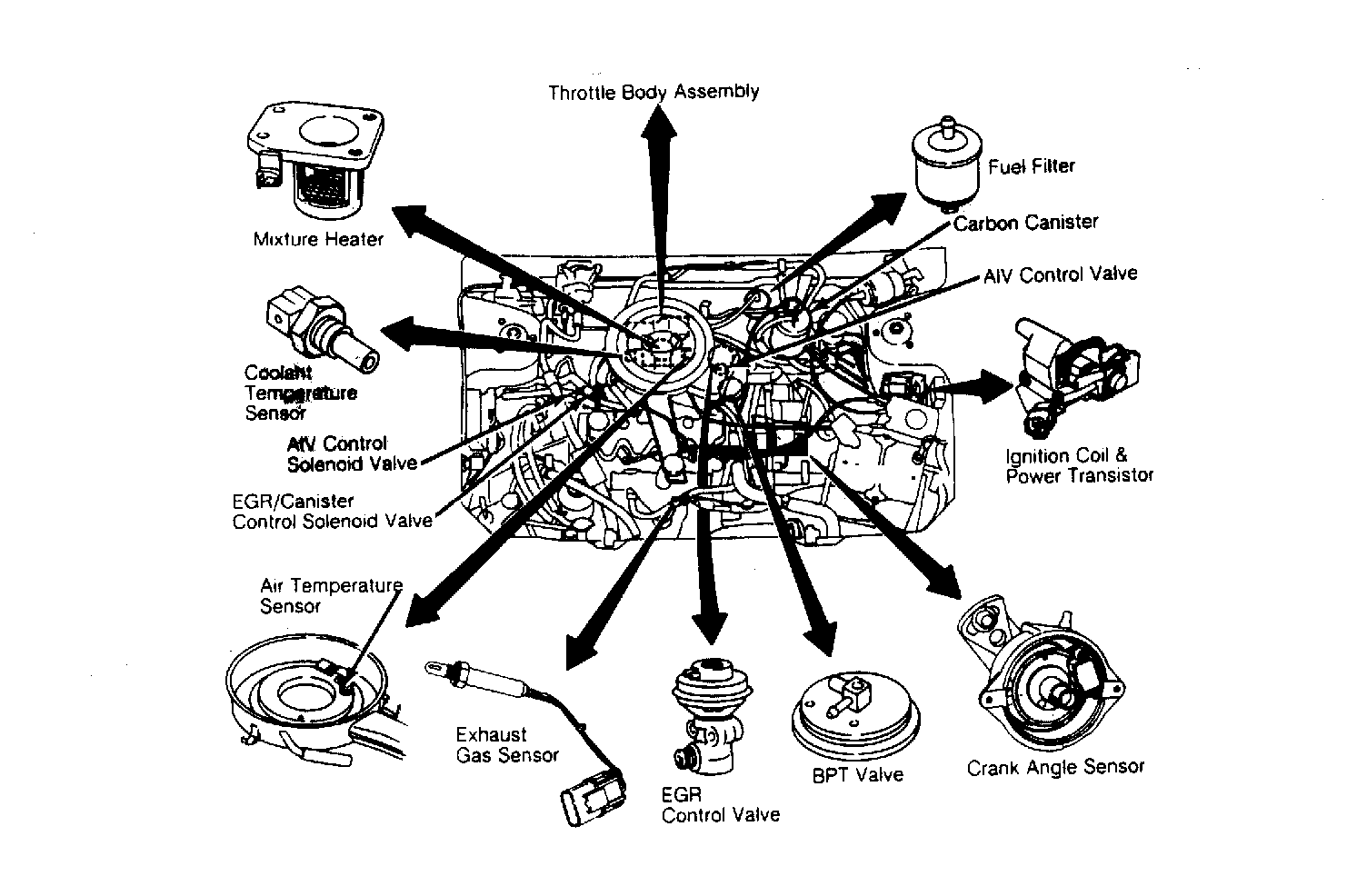

Fig 4: Sentra ECCS Component Locations

G61626

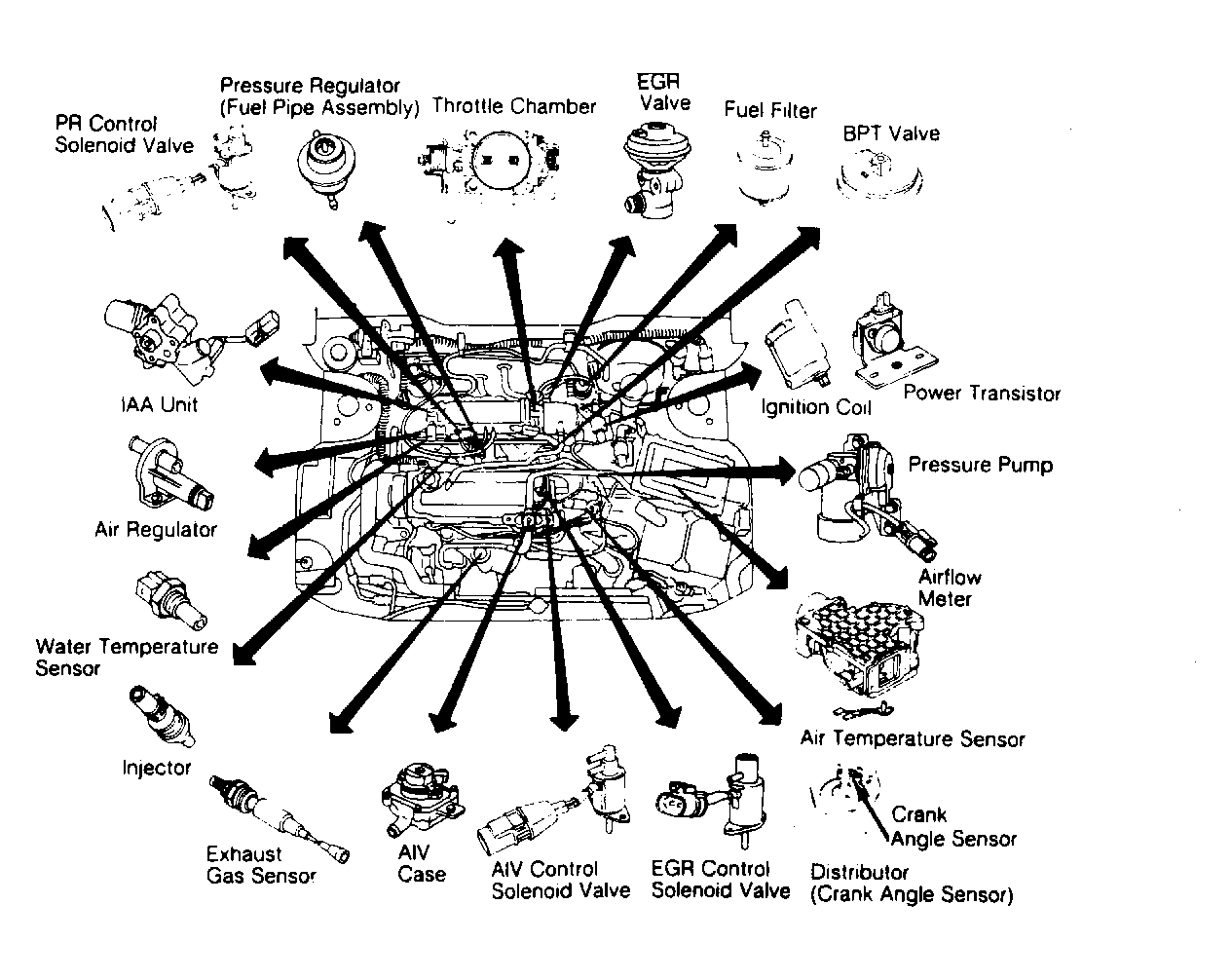

Fig 5: Stanza ECCS Component Locations

G61629

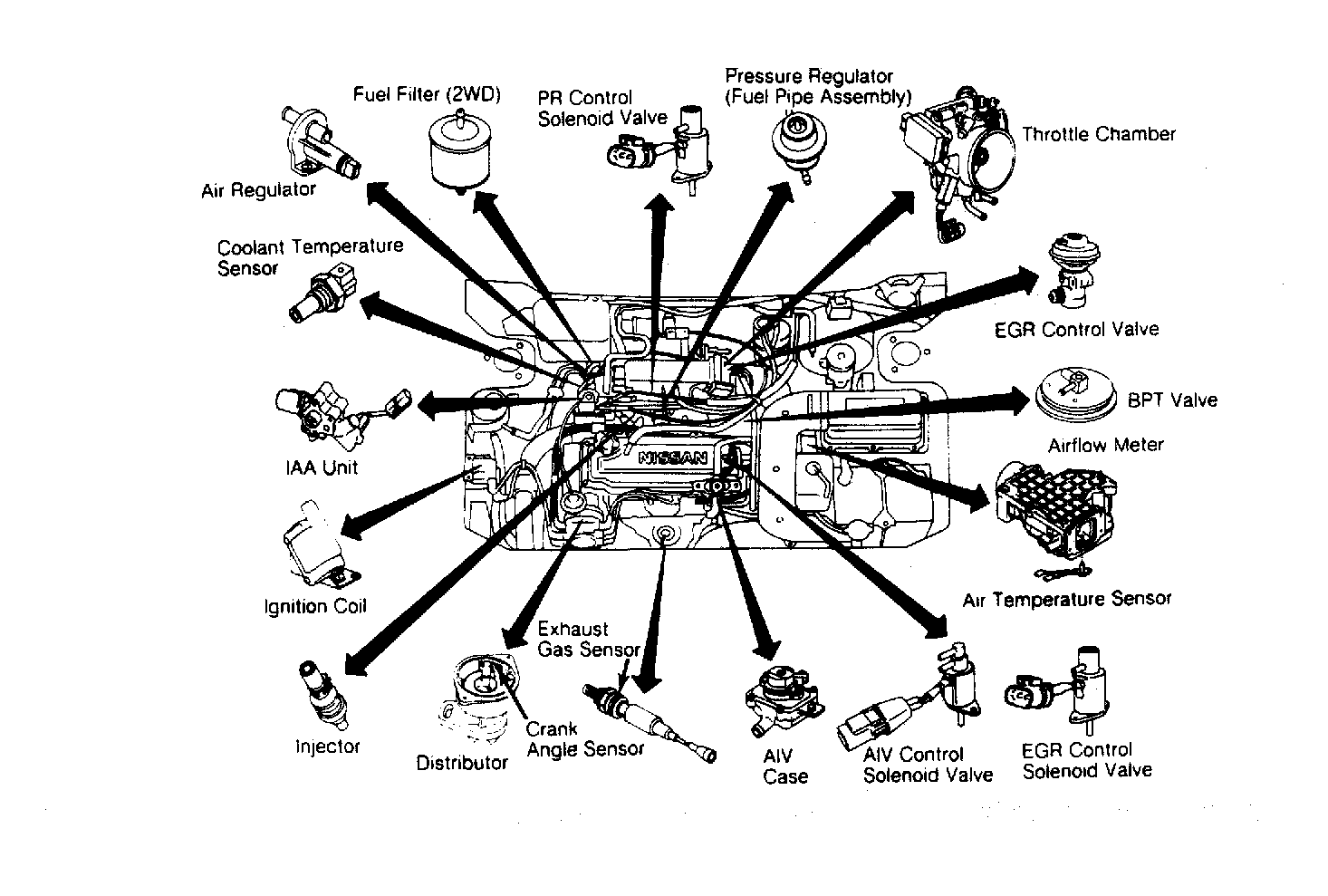

Fig 6: Stanza Wagon ECCS Component Locations

G61628

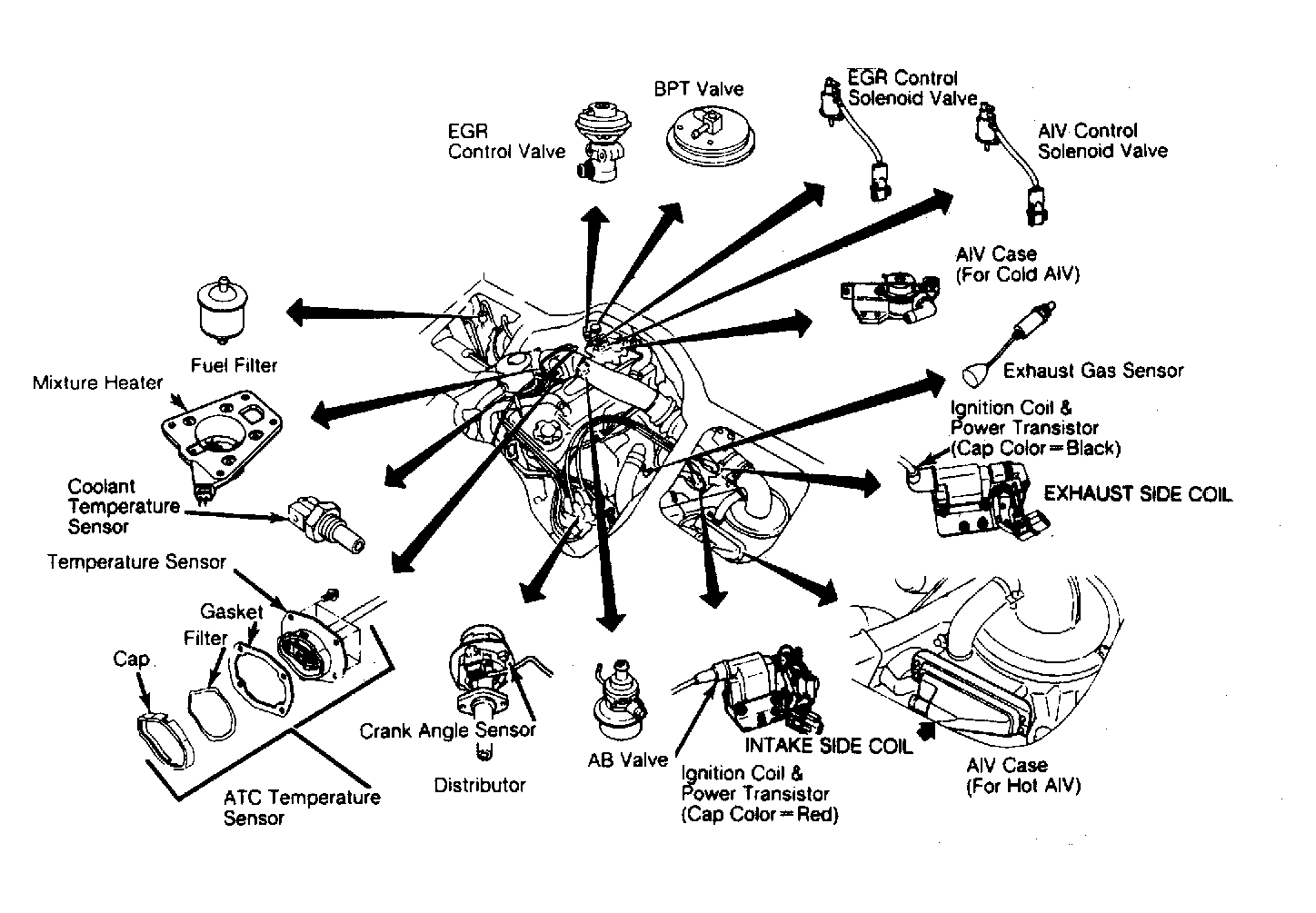

Fig 7: Van ECCS Component Locations

G61631

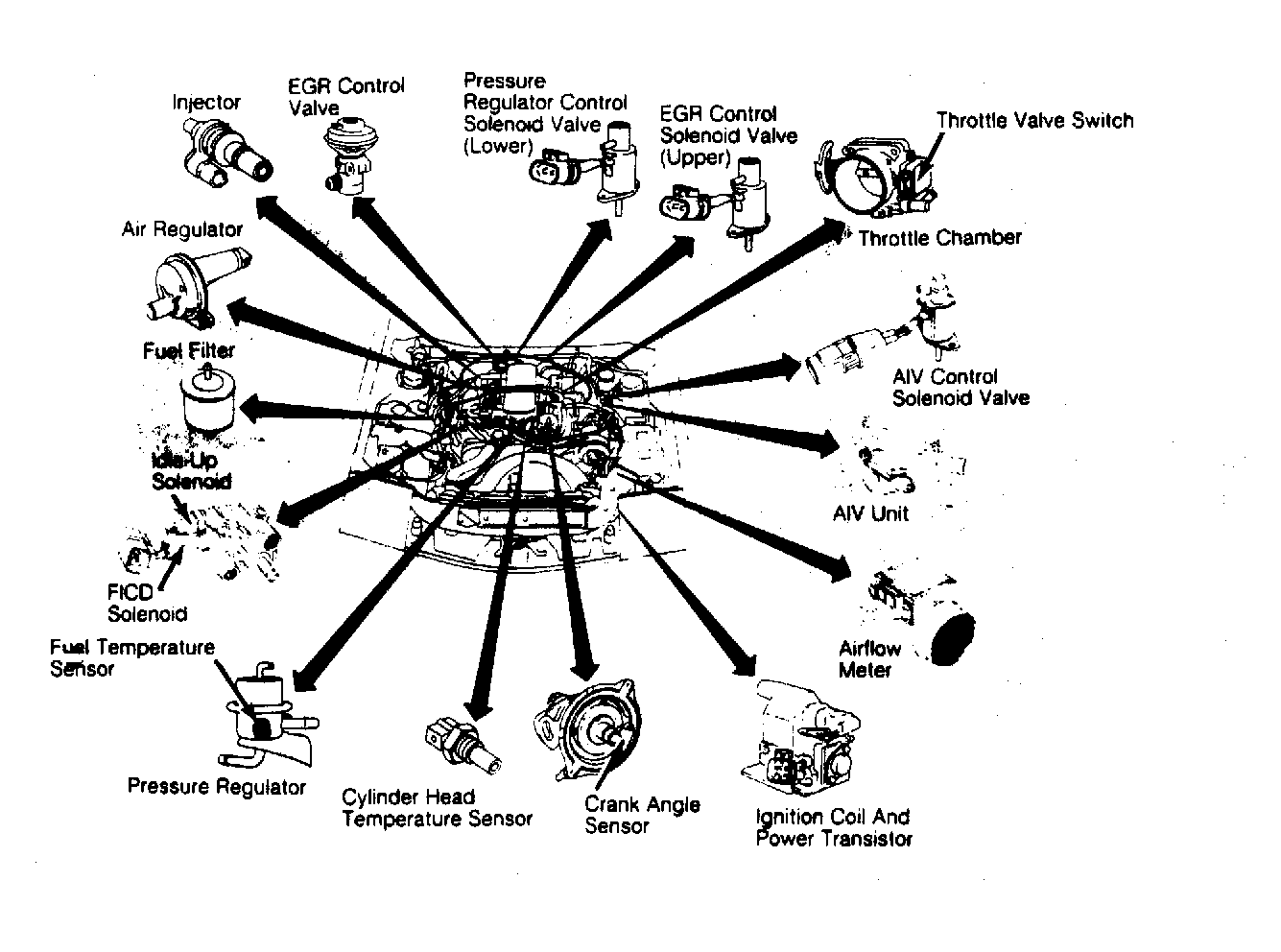

Fig 8: 200SX SE ECCS Component Locations

G61630

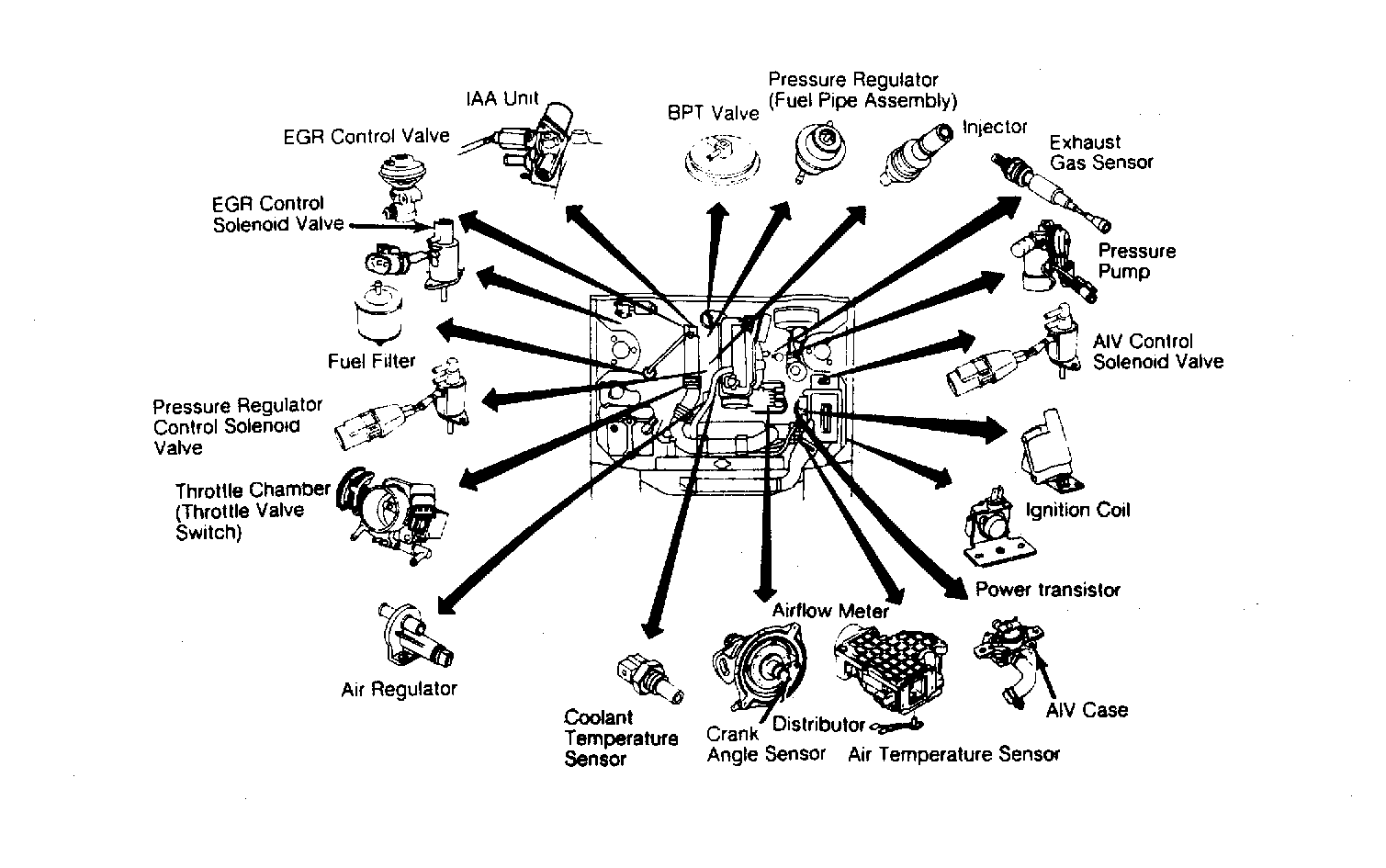

Fig 9: 200SX XE ECCS Component Locations

G61633

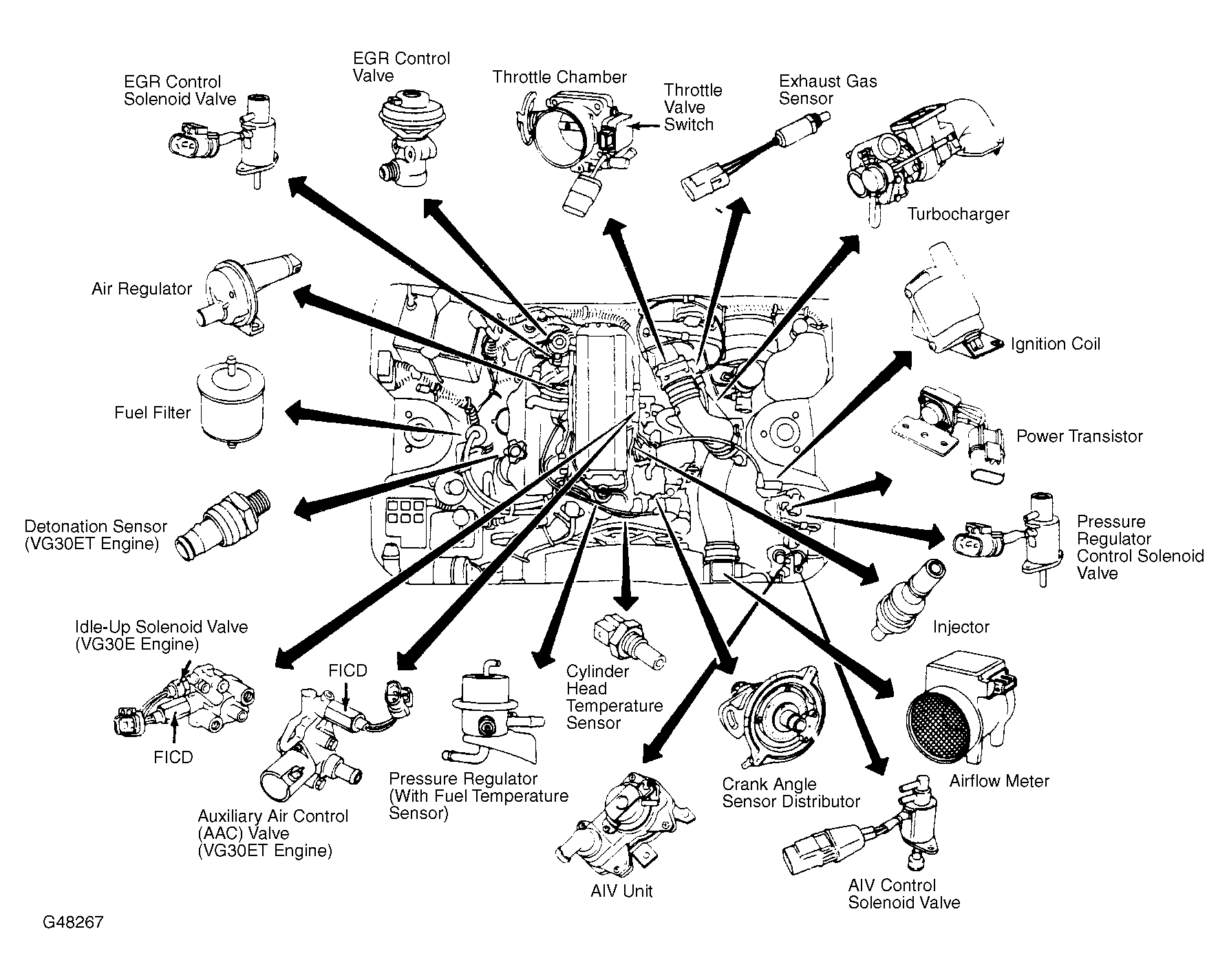

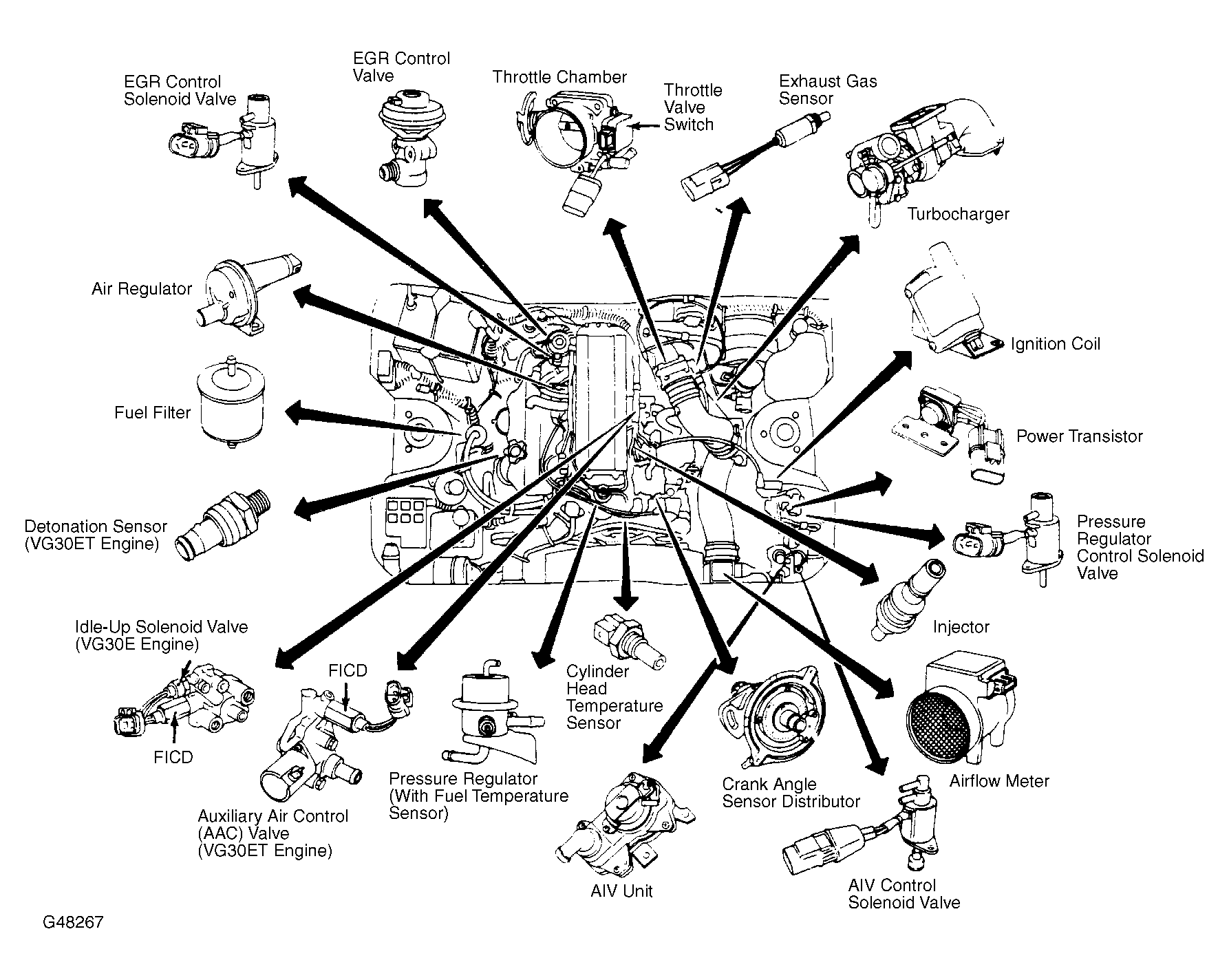

Fig 10: 300ZX ECCS Component Locations

G48267
