Fuel Pump Relay

Fig 1: Test X, Maxima, 200SX-SE & 300ZX

G61771

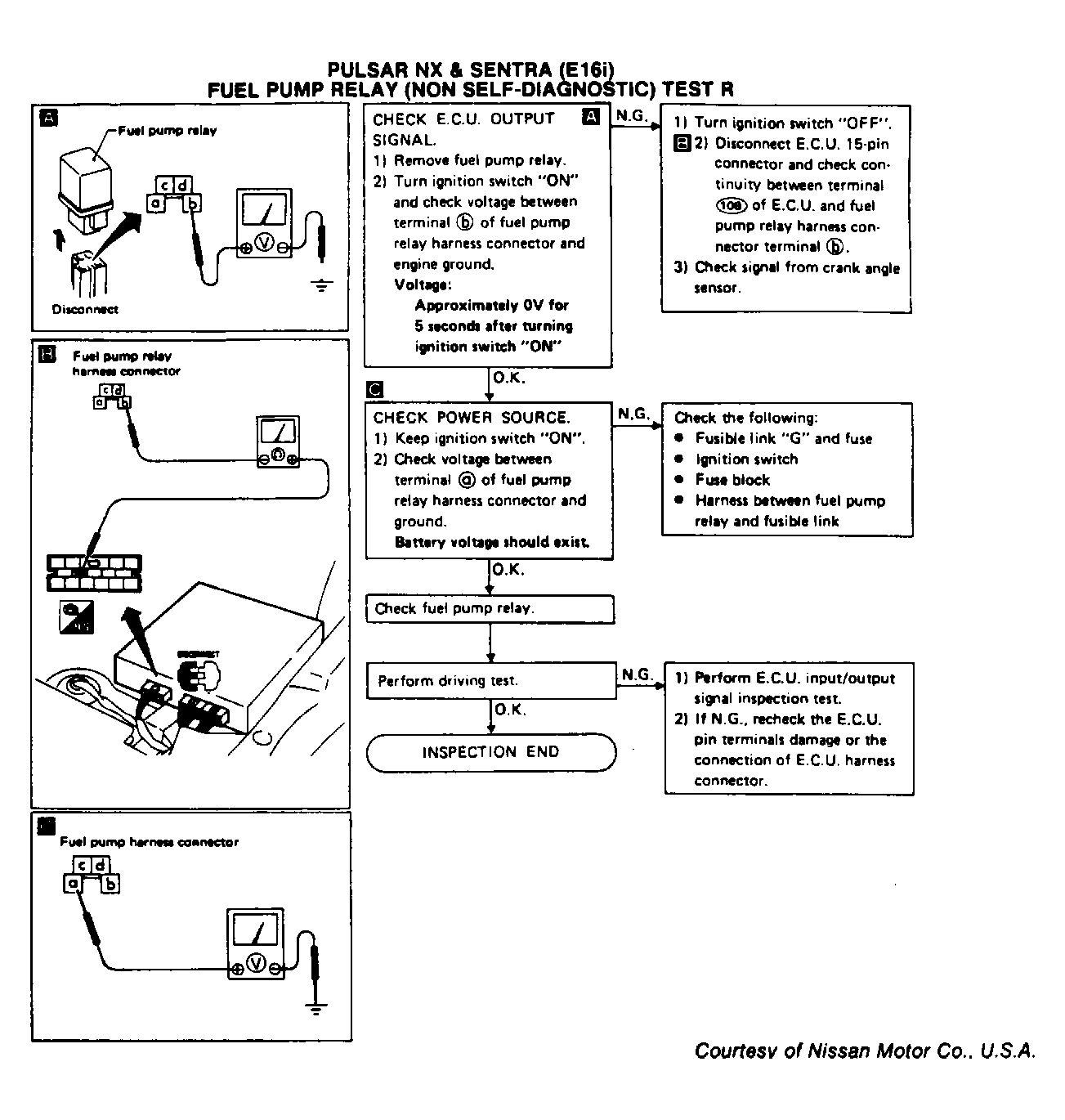

Fig 2: Test R, Pulsar NX & Sentra (E16i)

G61748
