Non Self-Diagnostic Component Testing Charts: Injector

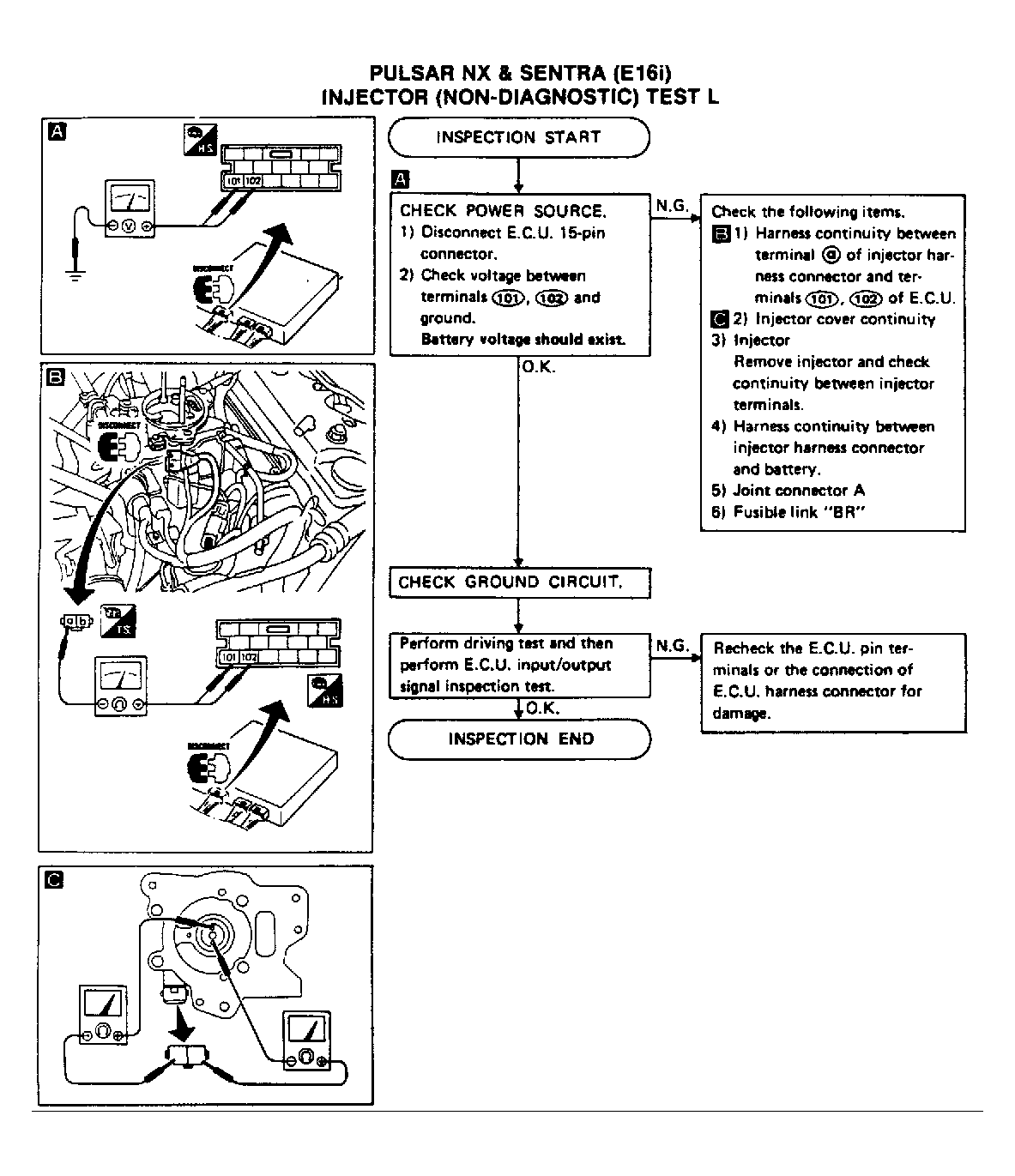

Fig 1: Test L, Pulsar NX & Sentra (E16i)

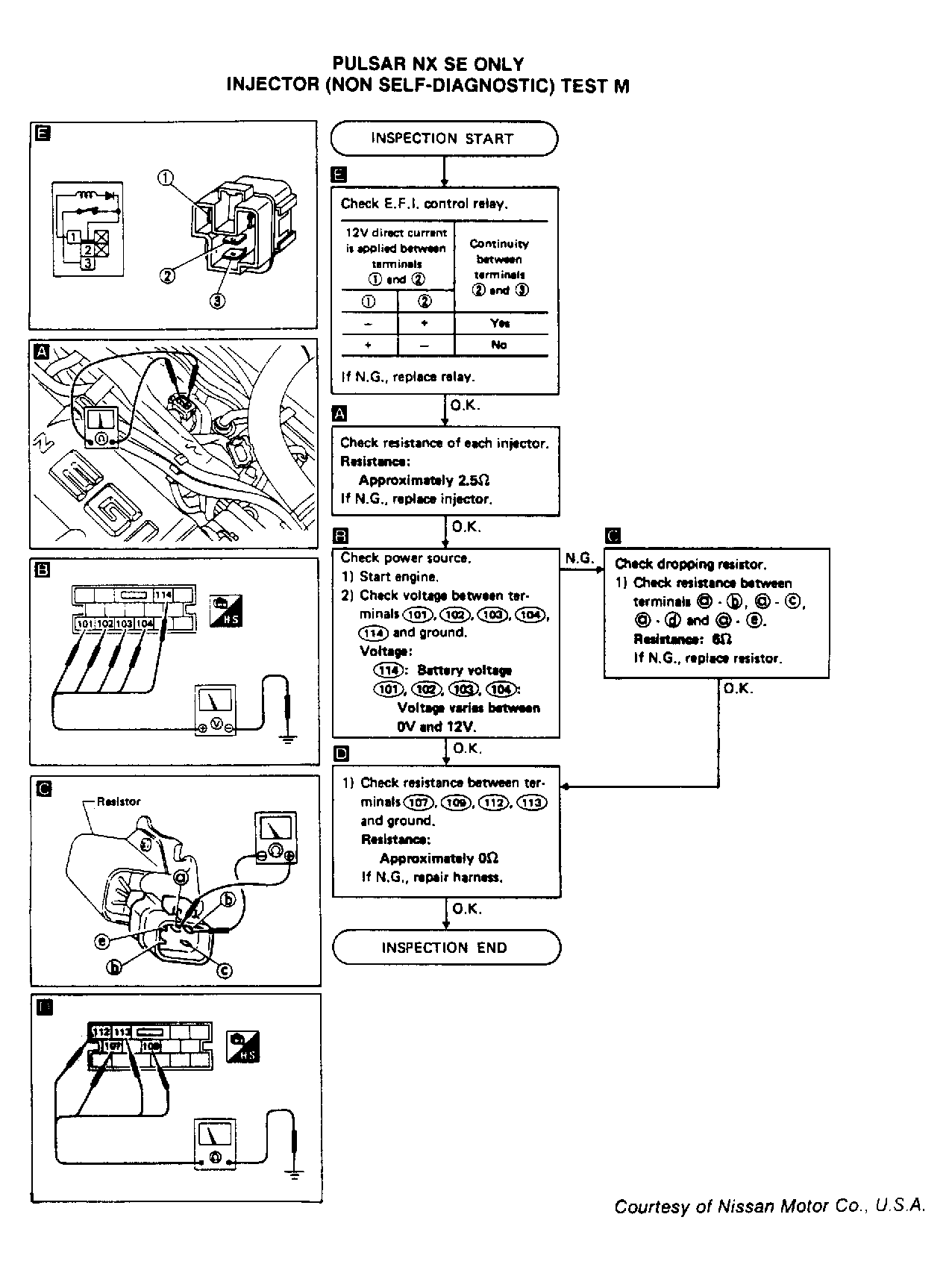

Fig 2: Test M, Pulsar NX SE

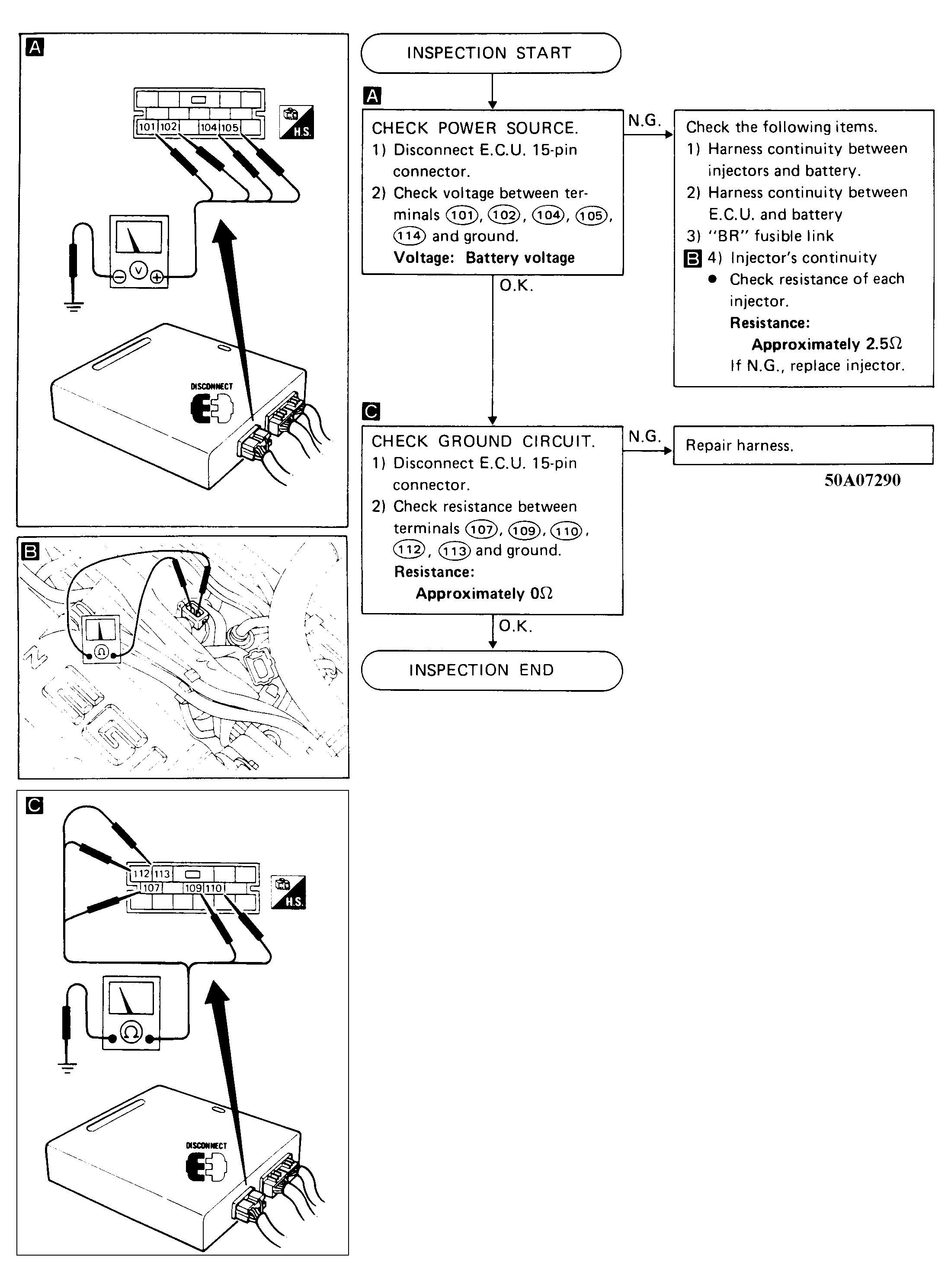

Fig 3: Test L, Stanza, Stanza Wagon & 200SX XE

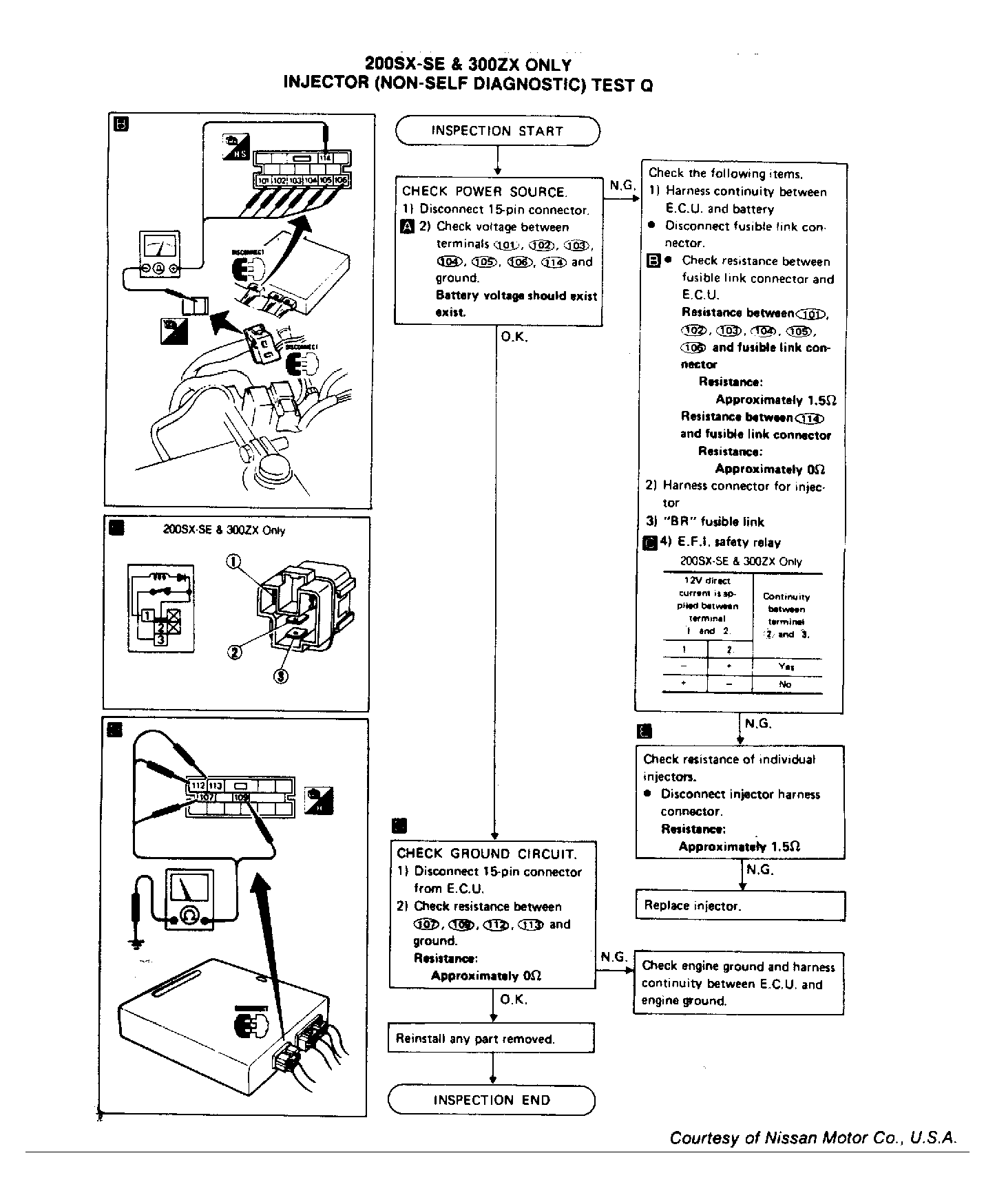

Fig 4: Test Q, 200SX-SE & 300ZX
