Neutral/Clutch Inhibitor Switch

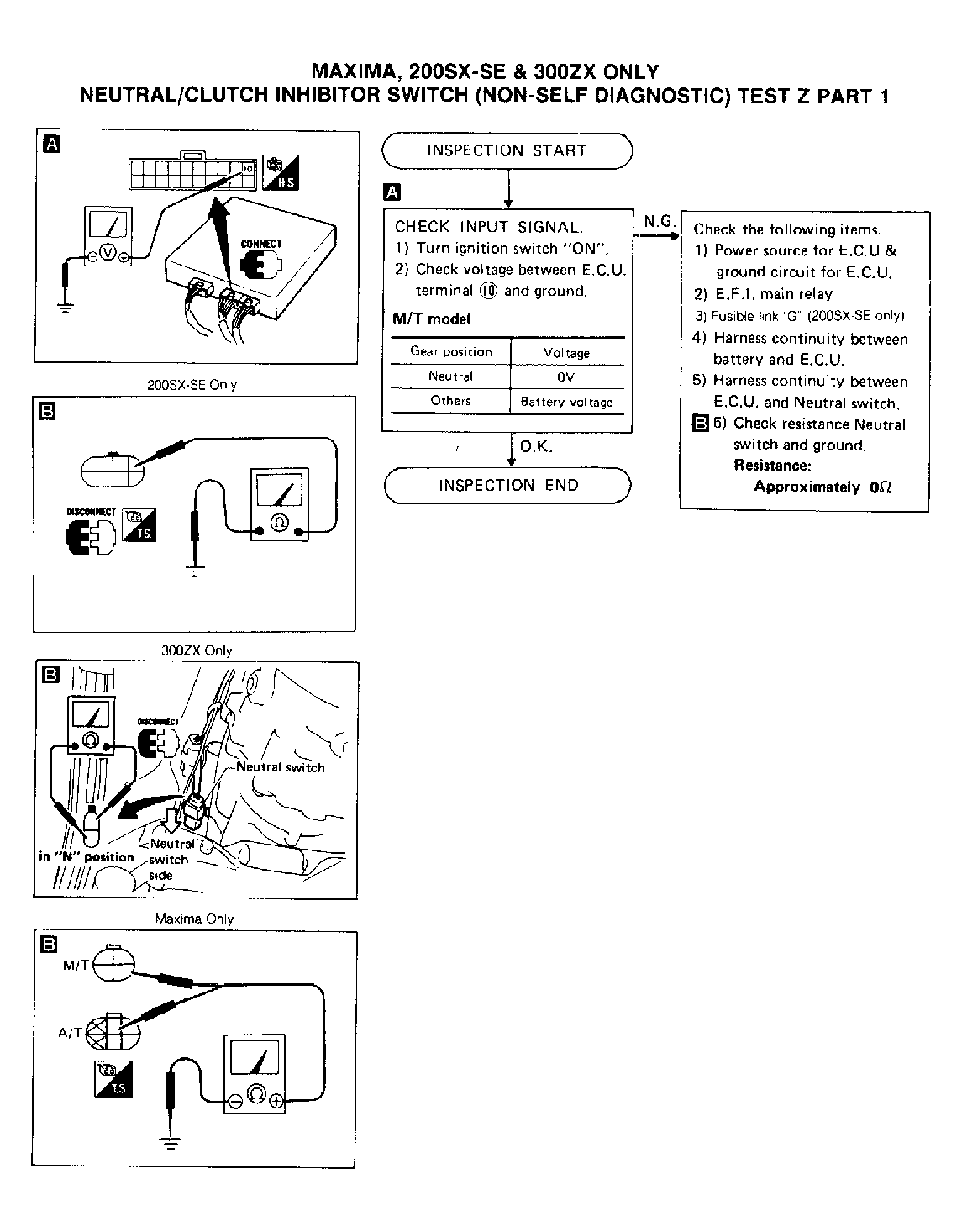

Fig 1: Test Z, Maxima, 200SX-SE & 300ZX

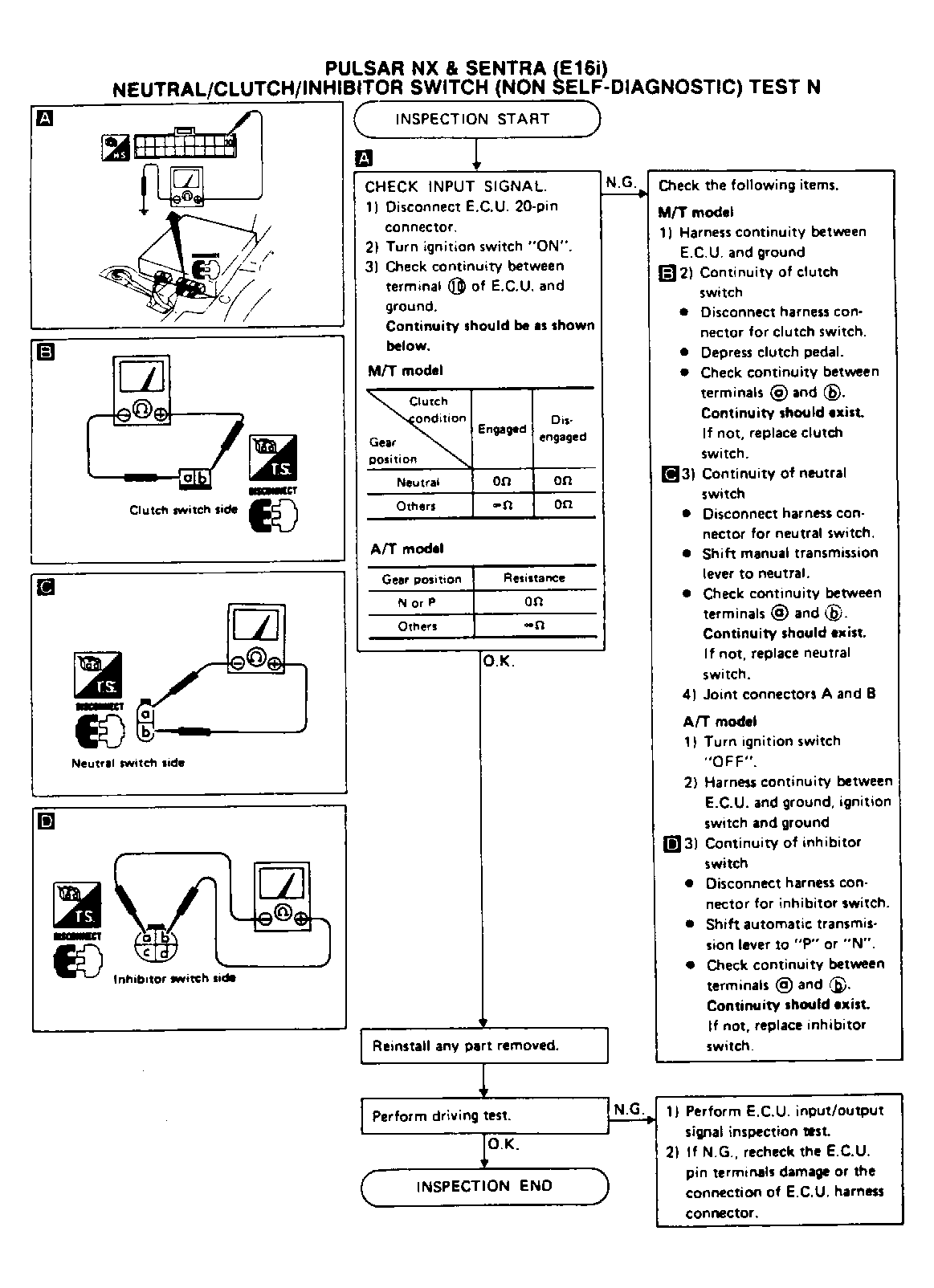

Fig 2: Test N, Pulsar NX & Sentra (E16i)
