LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Nissan-Datsun
>>
1987
>>
Sentra Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
ECC CEC System
>>
Non Self-Diagnostic Component Testing Charts
>>
Power Source & Ground Source For Ecu
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Source & Ground Source For Ecu

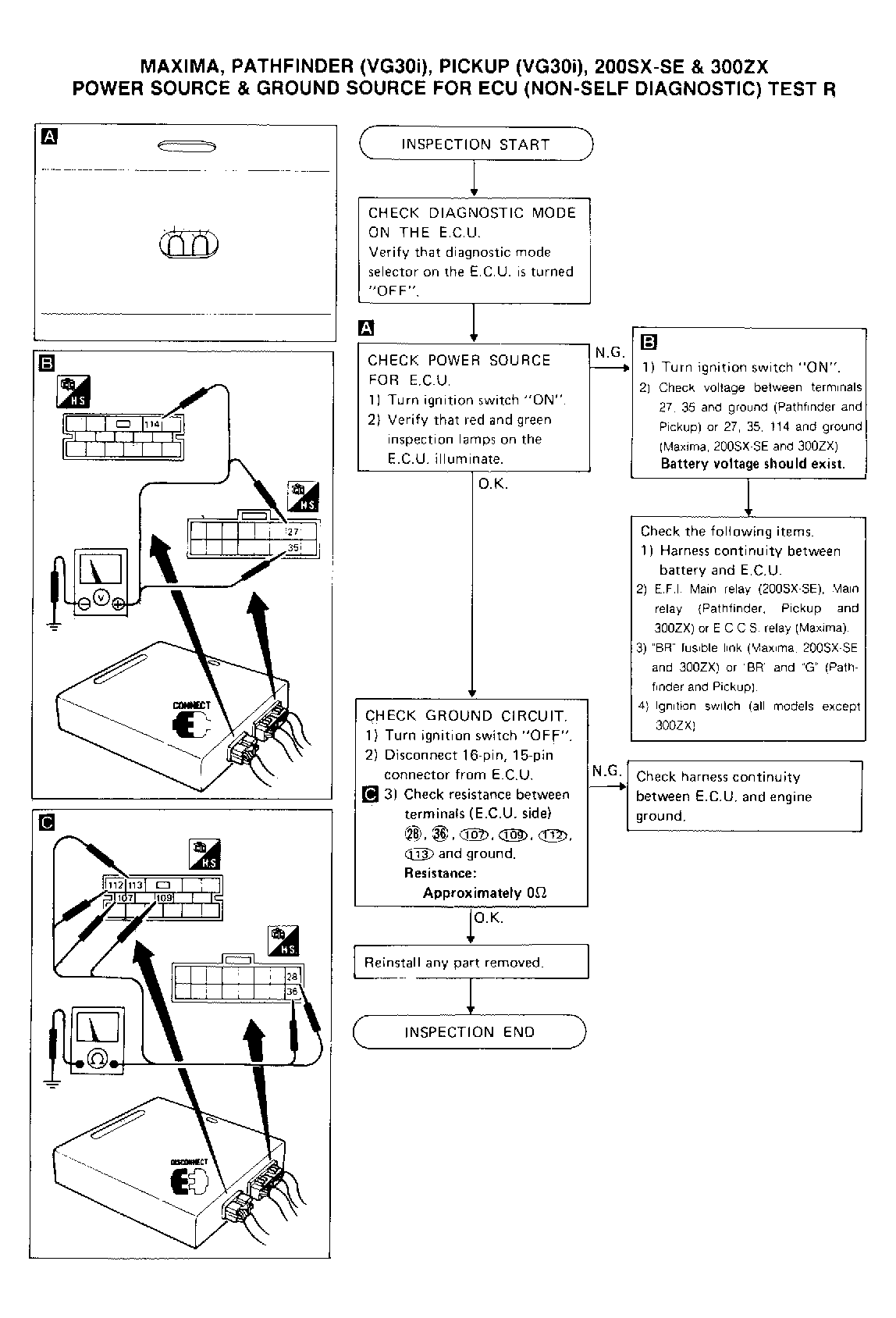

Fig 1: Test R, Maxima, 200SX-SE & 300ZX
