Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | Under center section of dash. See Figure . |

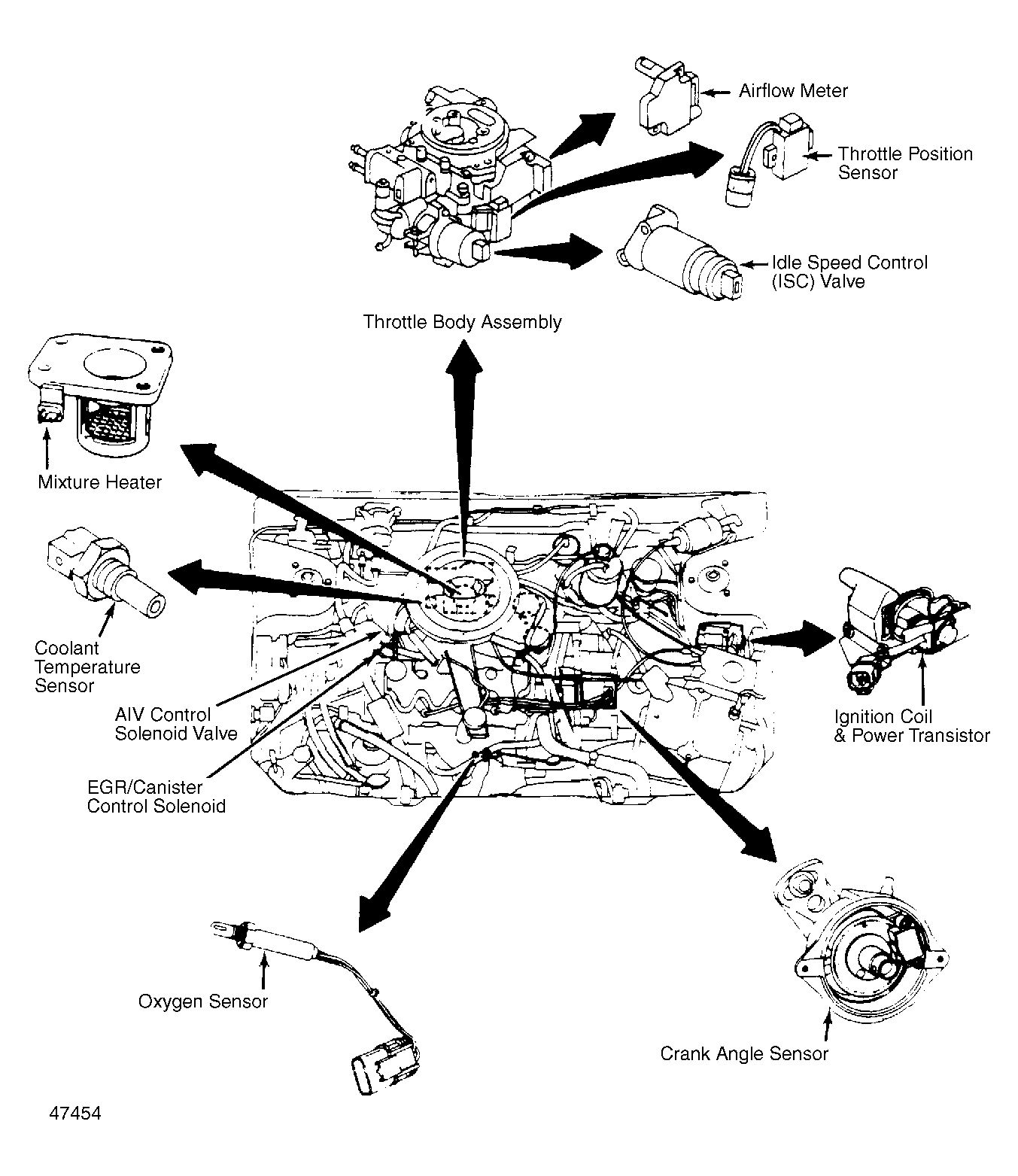

| Airflow Meter | On side of throttle body. See Figure . |
| Mixture Heater | Below carburetor or throttle body base plate. See Figure . |
| Power Transistor | On left front fender, below air intake duct. See Figure . |
| Thermo Control Amplifier | Under center section of dash. See Figure . |
| Wiper Amplifier | On right side of firewall. See Figure . |
